Fire Rated Monolithic Breather Membrane

Why Partel EXOPERM MONO DURO 200?

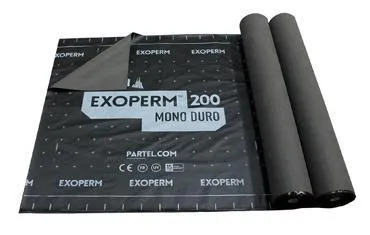

EXOPERM™ MONO DURO 200 is an energy-efficient, diffusion permeable polyurethane membrane composed of a PES non-woven and innovative fabric. It provides long-lasting UV protection and meets a high standard of fire-performance, with a reaction to fire classification of B‐s1,d0.

Reaction to fire classification B‐s1,d0 to BS EN 13501-1
Fire rated and suitable for high rise constructions as per current Building Regulations.
Monolithic technology
Highly vapour open with an sd value of 0.12m
Class W1 resistance to water penetration
UV resistance over 10 years in open joint facades (up to 50mm)
Airtight with an air permeability value of 0,01 m³/m², h, Pa
Weather tight
UKCA & CE compliant to EN 13859‐1 (roofs) and EN 13859‐2 (walls).

EXOPERM™ MONO DURO Project:

Technical Data

WEIGHT	EN 13859-2	215 g/m²
SD-VALUE M	EN 13859-2	0.12 M
WATER RESISTANCE	EN 1928	W1 (BEFORE & AFTER AGEING)
REACTION TO FIRE	EN-13501-1	B-s1,d0
NAIL TEAR RESISTANCE MD / CD	210 N / 300 N	340 / 240 N / 5 cm ± 30% 320 / 220 N / 5 cm ± 30%
TEMPERATURE RESISTANCE		-40°C TO 80°C
UV RESISTANCE		> 10 YEARS*
TENSILE STRENGTH MD/CD	EN 12311-2	340 / 240 N / 5 cm ± 30% 320 / 220 N / 5 cm ± 30%

*does not apply in the case of open air weathering, but only when clad with a distance of approx. 5 cm and a maximum joint area of 40%

Application

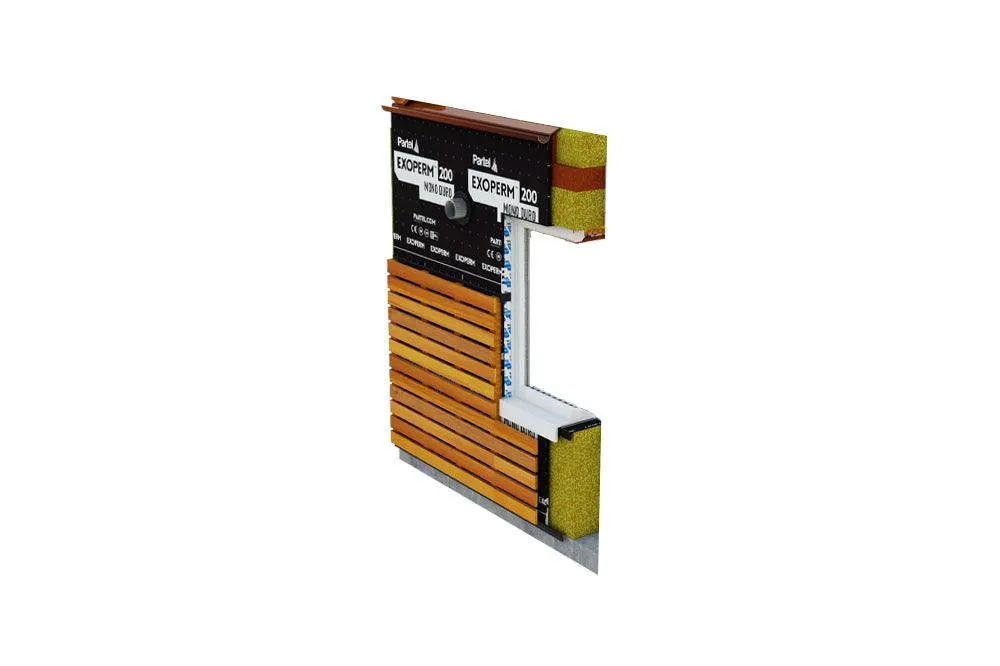

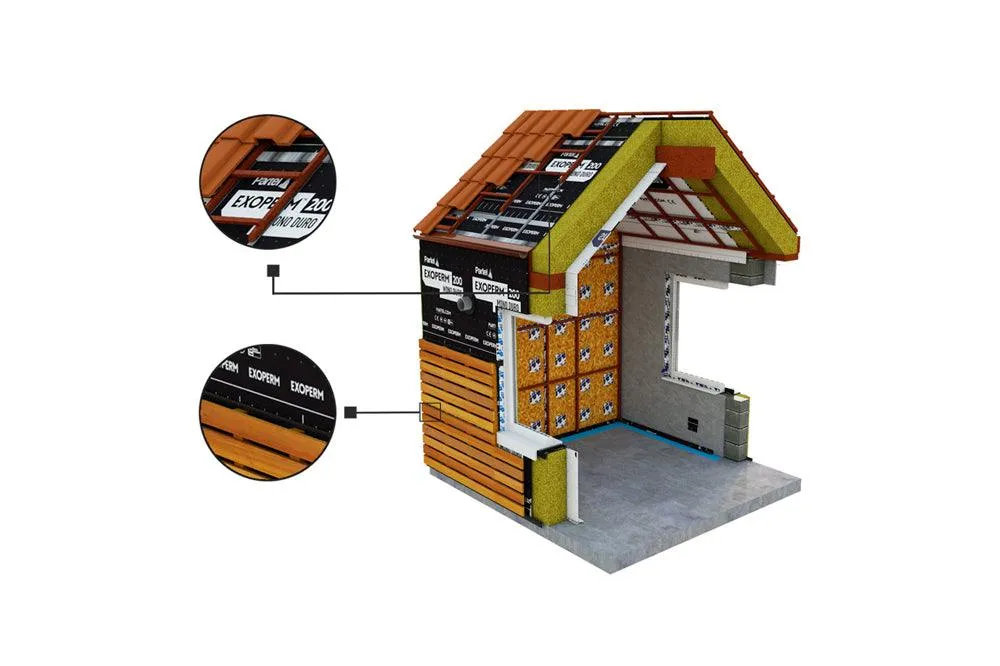

EXOPERM MONO DURO 200 is an external breather membrane designed for use on the cold side of insulation on façade wall and roof applications.

Suitable for:

Rear ventilated facades, with open or closed joints
Timber and steel framed constructions

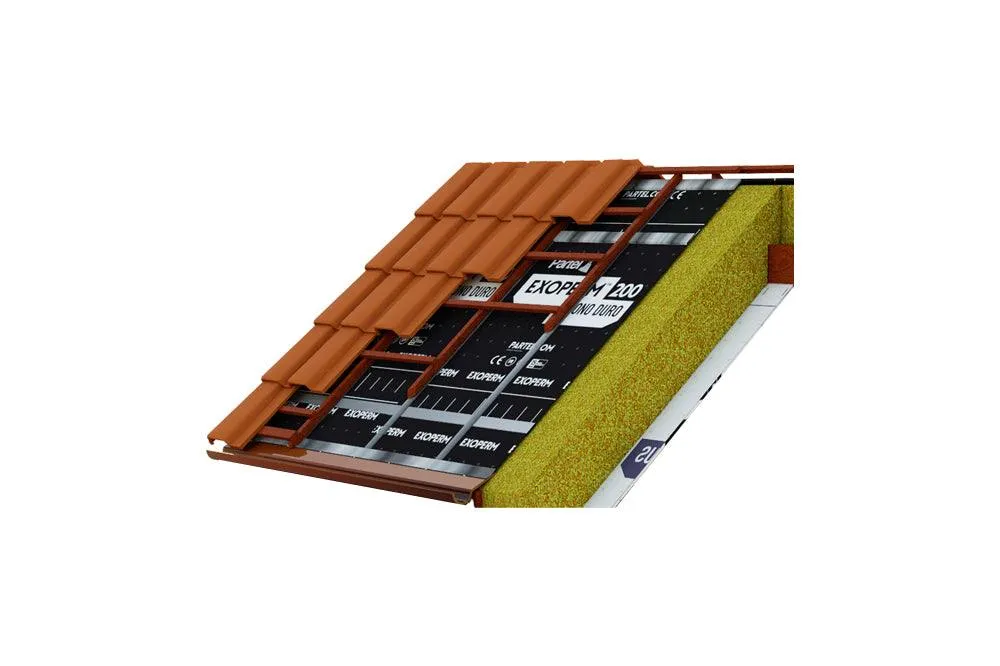

Warm, cold and hybrid roof applications
Pitched or flat roofs
Sarking boards

Monolithic Technology

EXOPERM MONO DURO is a 2-Ply sarking, roof underlay and wind barrier with next generation monolithic functional layer.

The monolithic functional layer provides enhanced protection for the building envelope:

transports vapour to outside
is vapour open whilst having excellent waterproofing properties
creates a complete wind tight, waterproof membrane that actively expels out any water/humidity unlike most micro-porous membranes that rely on small pores (which have the tendency to block)
