Alloy
MTB Frame
Double Wall Rims
27.5” X 1.95” Tyres
8 Speed Shimano
Tourney Drivetrain
250w EverDrive®
Electric Motor
Alloy, The Metal of Choice
We design our bikes to last. That's why our engineers have built the E-Vantage with an Alloy frame and other Alloy components. Alloy offersgreater durability while remaining lightweight, increasing the agility and handling of your bike, making it essential for any mountain bike rider.

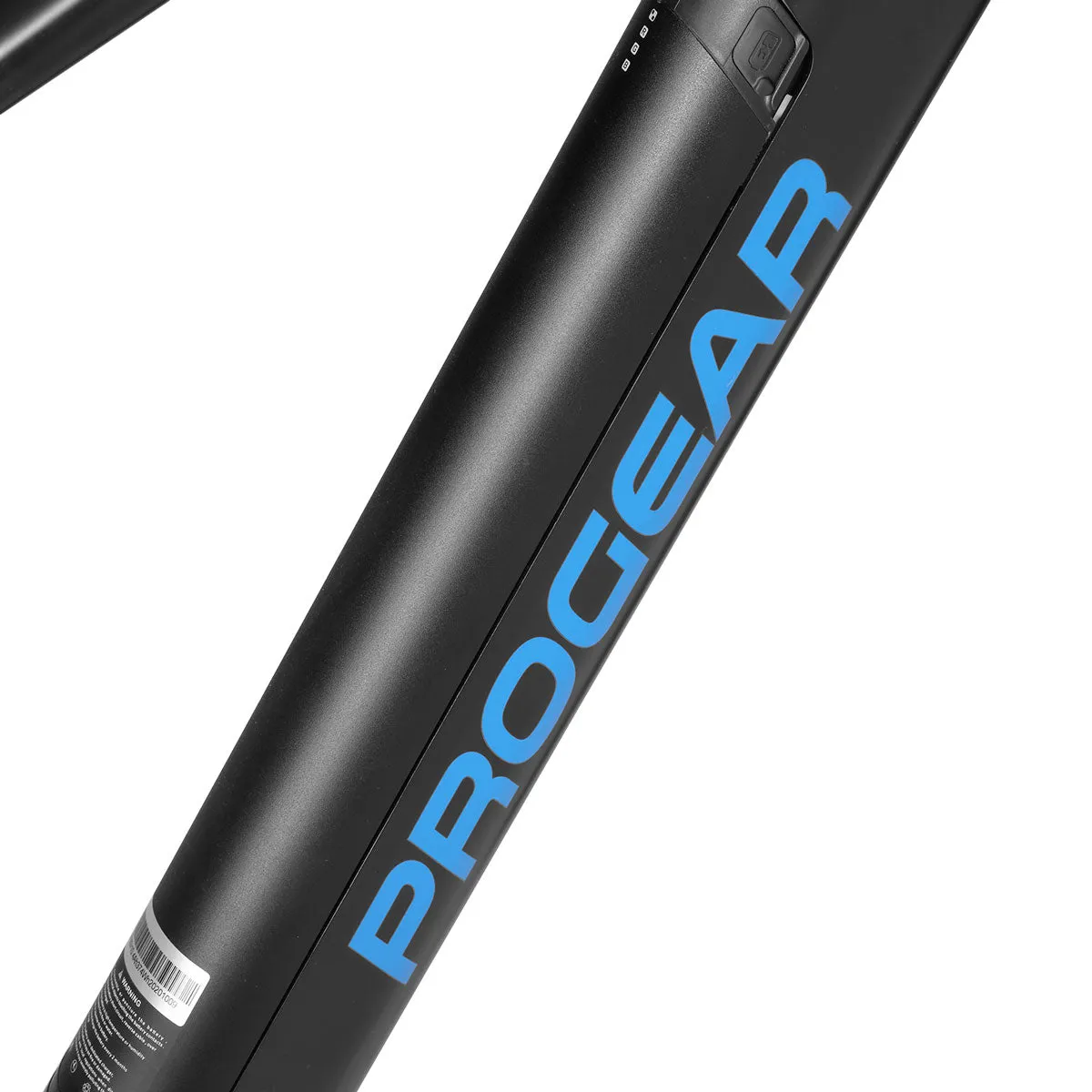

EverDrive® 36v Integrated Battery
A great electric bike needs a great battery to work. The E-Vantage comes with a 36v Integrated Battery Cells to keep you moving through the harshest of trails.
Safety tested to strict international standards and comes with an intelligent protection board for longevity and durability.

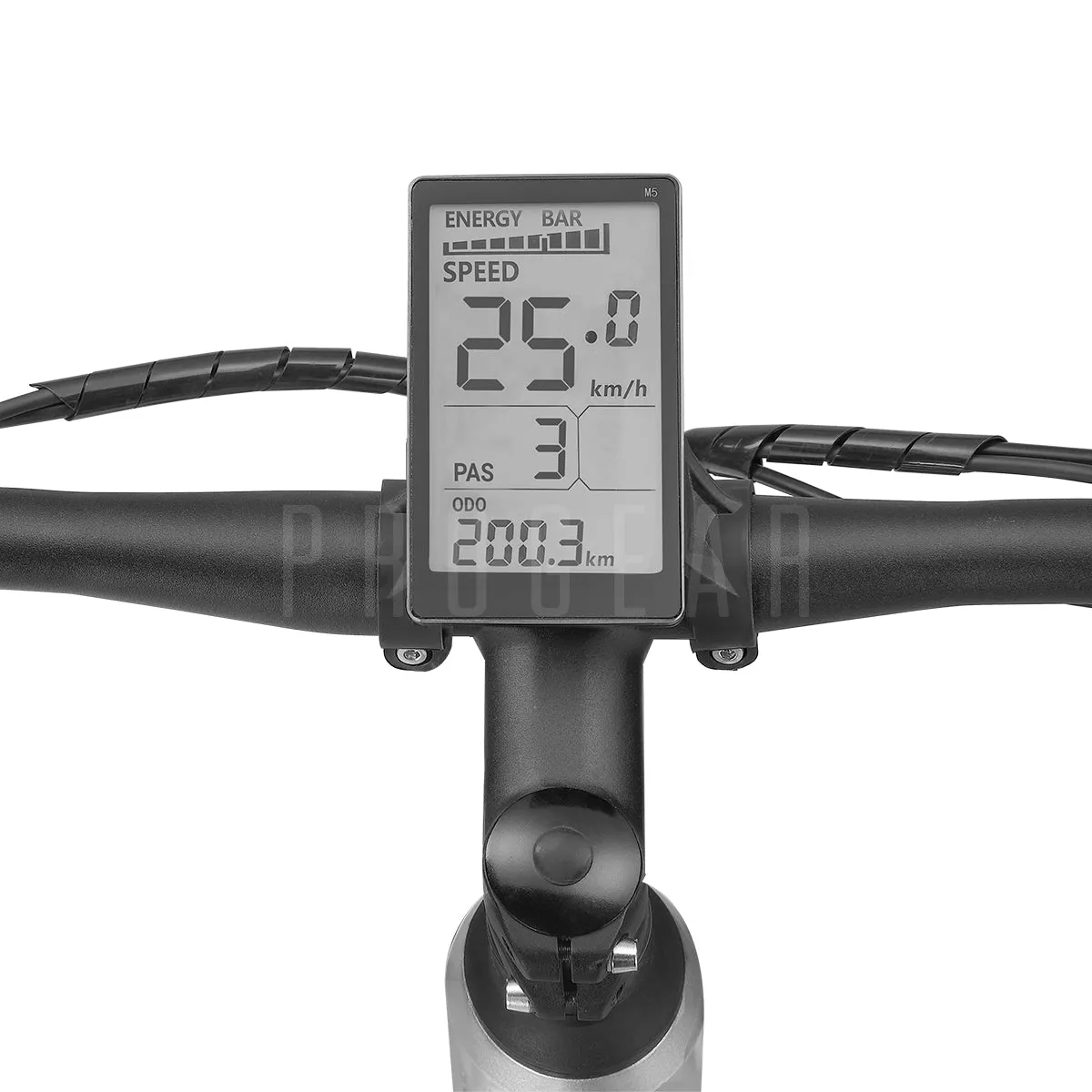

Be in Control
With a large backlit LCD Display and built-in controller, you'll be able to see your speed, trip stats, current power assist & battery charge. You get 5 levels of power assist, with the higher number providing more motor assistance during pedals..
Front Suspension with lockout
Fitted with front suspension, you can experience the highest comfort and control levels to tackle even the most rugged terrains. Absorb bumps from the front and rear wheels with ease while keeping you in close contact and control on the ground for the tricky terrains. When you're ready to hit the road, we've got you covered. Simply set the Mechanical lockout system and get going for a smooth ride.

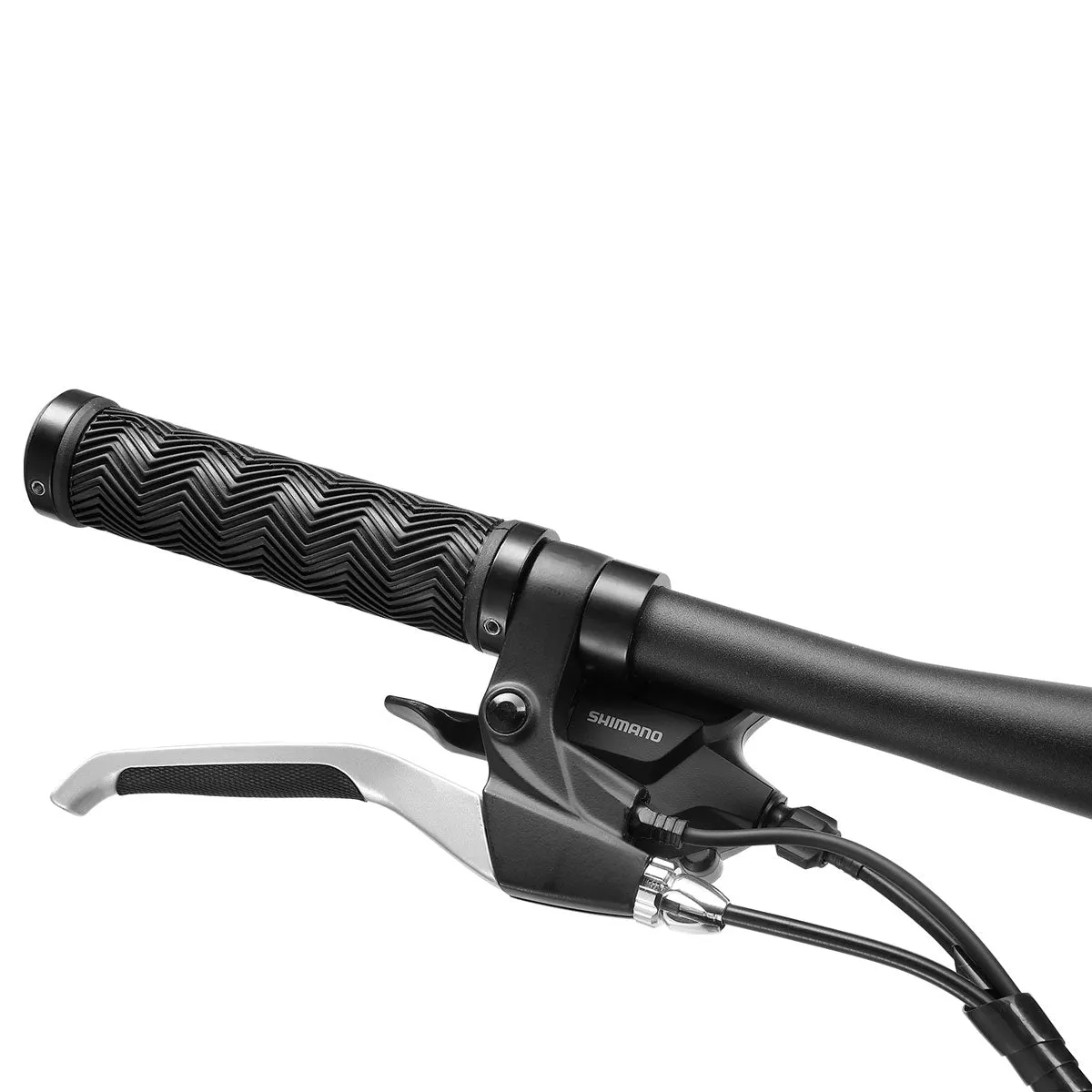

Strong Stopping Power
Strong, reliable stopping power is paramount to any bike rider, especially if you're manoeuvring through tough terrain. That's why our E-Vantage comes with Disc brakes for consistent, high-powered braking performance.

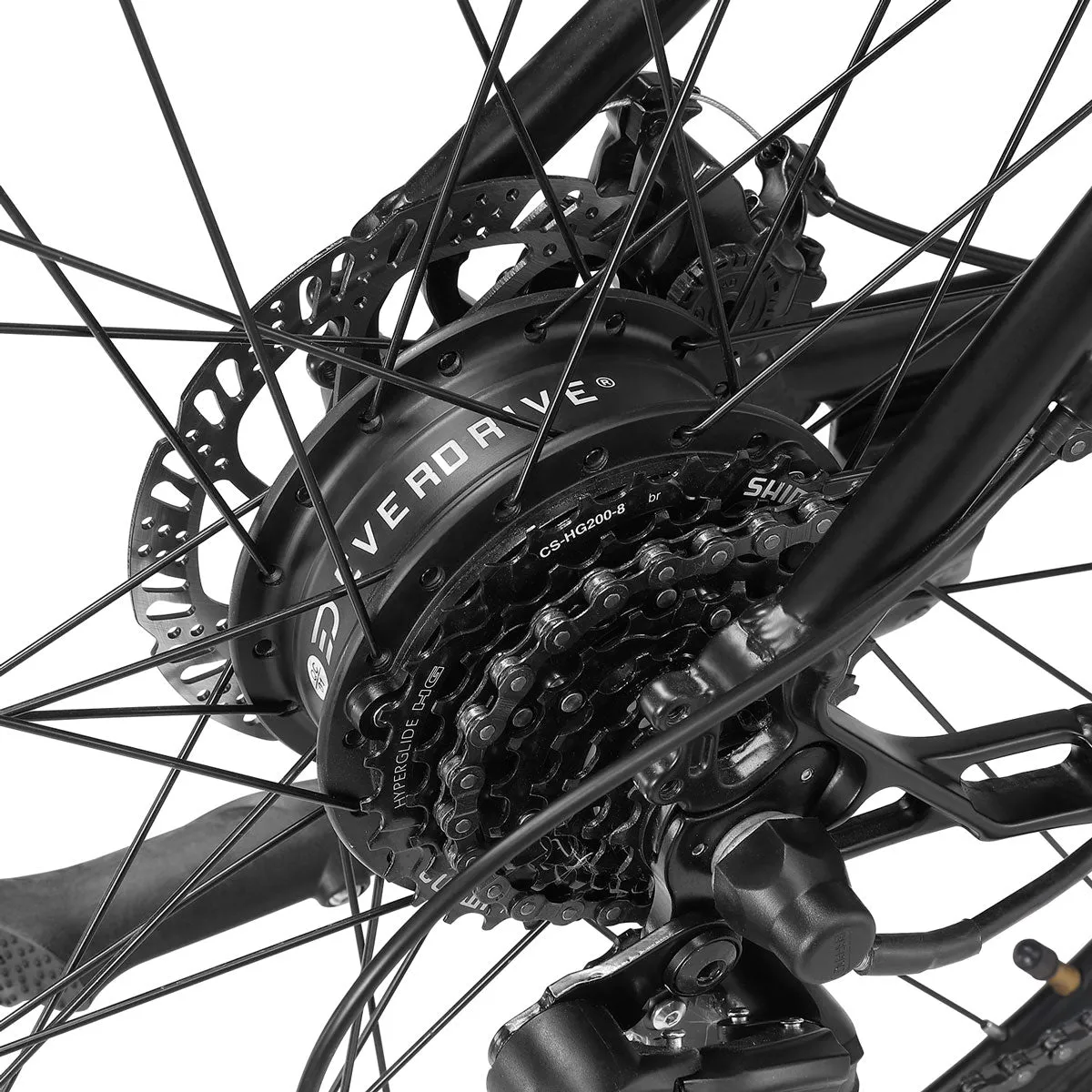

250W EverDrive® Motor
Go further than you ever have with an added 250w EverDrive® Electric Motor. Amplify your pedaling power to pick up speed or power through the most challenging inclines and terrain with ease.

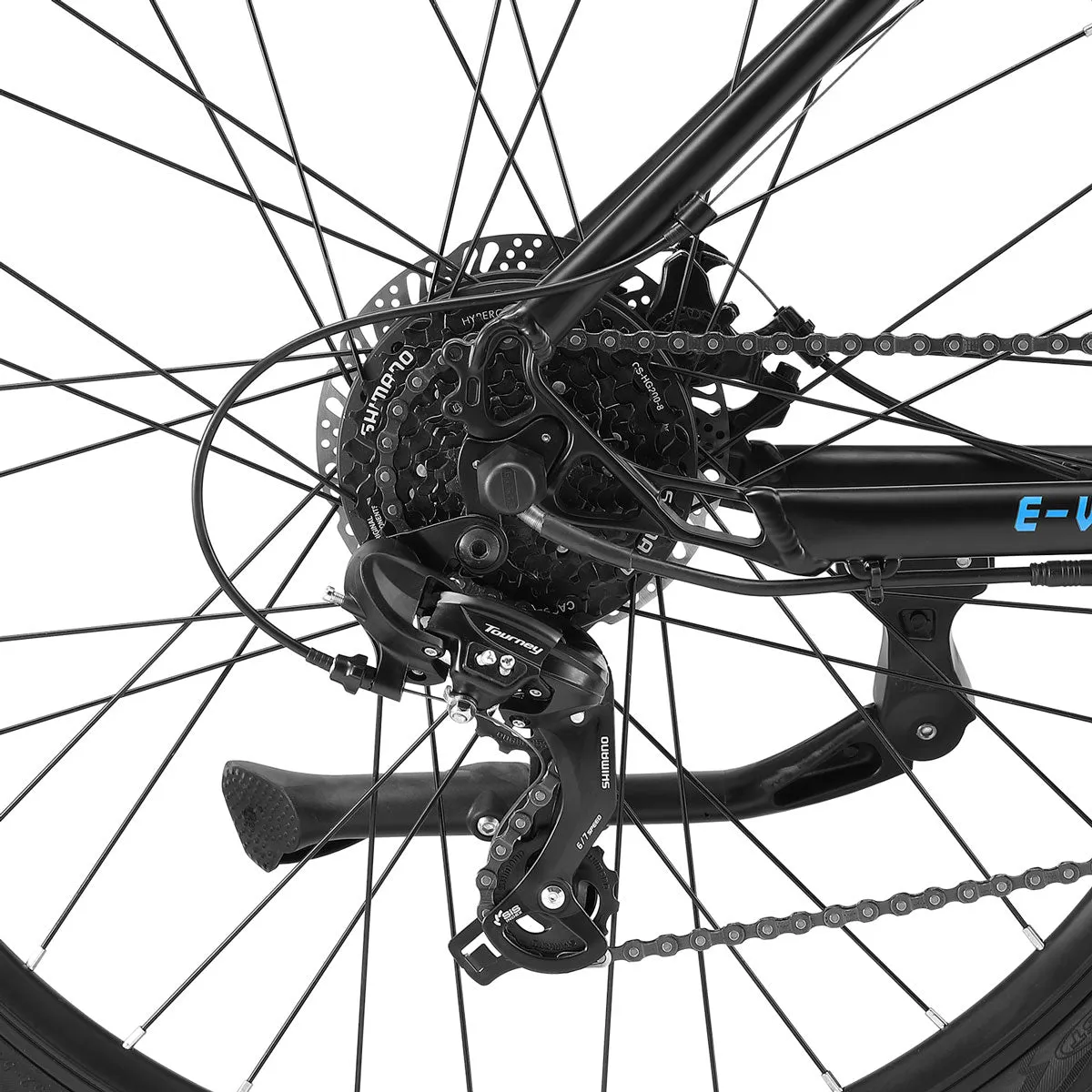

8 Speed Shimano Drivetrain
Using a quality Shimano drivetrain, the Shimano Tourney provides smooth shifting for 8 speeds, so you'll be able to maintain cadence and the right gear ratio for any terrain. Shifting is a cinch with the Tourney Rapid Fire Plus shifters.
Double Wall Rims
Appropriately sized for Mountain Bike Riding, Double Wall Rims provide excellent strength and reliability.
27.5-inch Tyre
You no longer need to choose between having the speed and handling of a 26” tyre and the traction and evenness of a 29” tyre. Now you can get the best of both worlds. With a 27.5” tyre, you can power through corners as you would with a 26” tyre without sacrificing the traction and smooth ride a 29” tyre would offer.
The Blueprints
An awesome package with the following components:
- A. EverDrive® LCD Display
- B. Quick Release Seat Clamp
- C. 8 Speed Shimano Drivetrain
- D. Alloy Pedal
- E. Double Wall rims
- F. EverDrive® 36v Integrated Battery
- G. Fork Suspension
- H. Mechanical Disc Brakes
Where to ride?
Specification
Technical Specifications
| Frame | Alloy 27.5×18" |
|---|---|
| Fork | Suspension Fork, 27.5", 100mm Travel with Lockout |
| Handlebar | Alloy Width 680MM, 6° rise |
| Stem | Alloy 70mm, -7° |
| Grip | 130MM |
| Crank sets | Crank Length 170mm, 36t Chainring |
| BB Sets | L:BB73*127.5mm |
| Pedal | Alloy 9/16 |
| Chain | 1/2"*3/32"*116L |
| Freewheel | Shimano CS-HG200-8, 8-SPEED, 12-14-16-18-21-24-28-32(BR) |
| R.Derailleur | Shimano Tourney TY300D 8Sp |
|---|---|
| Shiter | Shimano SL-M315-8R, 8-SPEED RAPIDFIRE PLUS |
| Brake | Mechanical disc brake, Rotor=160mm |
| Hub Front | 3/8"*13G*36H |
| Rims | 27.5"(650B)*1.5*13G*36H double wall H=25 |
| Spokes | 253mm W/12mm brass nipple |
| Tire | 27.5"*1.95 |
| Seat Post | 27.2*350mm |
| Seat Clamp | 34.9 Quick Release |
| Kickstand | Alloy Kickstand |
Electrical Components
| Motor | EverDrive® Electric Motor 250W 25KM/H - Complies to EN15194 |
|---|---|
| Torque Sensor | Dual hall Cable length:150mm |
| Display | 0-5 assist level, Max Speed 25kph |
| Controller | 27.5/700C 36V*350W 15A 1 |
|---|---|
| Battery | 36V*10.4A |
| Charger | 42V 2A DC2.1 charger port 1200 900MM |
Electric Bike Battery Information
The travel distance after a full charge on this e-Bike can vary from 30km to 70km.
There are several factors that will affect how long the battery will last after a full charge.
- Factors include:
- Level of pedal assistance – higher level of assistance will use more battery charge
- Weight of Rider & Luggage – more weight may require more power from the battery
- Terrain & Weather Conditions – Terrain & wind may cause drag, and will require more power to maintain speed.
- Tyre Conditions – Incorrect tyre pressure may create more rolling resistance
- Traffic/Route Conditions – Stop/Start cycling may use more power to accelerate up to appropriate travelling speeds.
Box Sizing Guide
| Frame Size Number | 18" |
| Wheel Size | 27.5" |
| Suggested Height | 175-195cm |
| Minimum Suggested Inseam | 85cm |
| A - Seat Tube | 45.7cm |
| B - Seat Tube Angle | 73deg |
| C - Head Tube Length | 16.5cm |
| D - Effective Top Tube | 58cm |
| E - Chainstay length | 46cm |
| F - Wheelbase | 111cm |
| G - Standover | 80cm |
