36V INTEGRATED
BATTERY
7 SPEED SHIMANO
DRIVETRAIN
DISC
BRAKES
LARGE BACKLIT
LCD DISPLAY
Stay in Control
With a large backlit LCD Display and built-in controller, you'll be able to see your speed, trip stats, current power assist & battery charge. You get 5 levels of power assist, with the higher number providing more motor assistance during pedals.

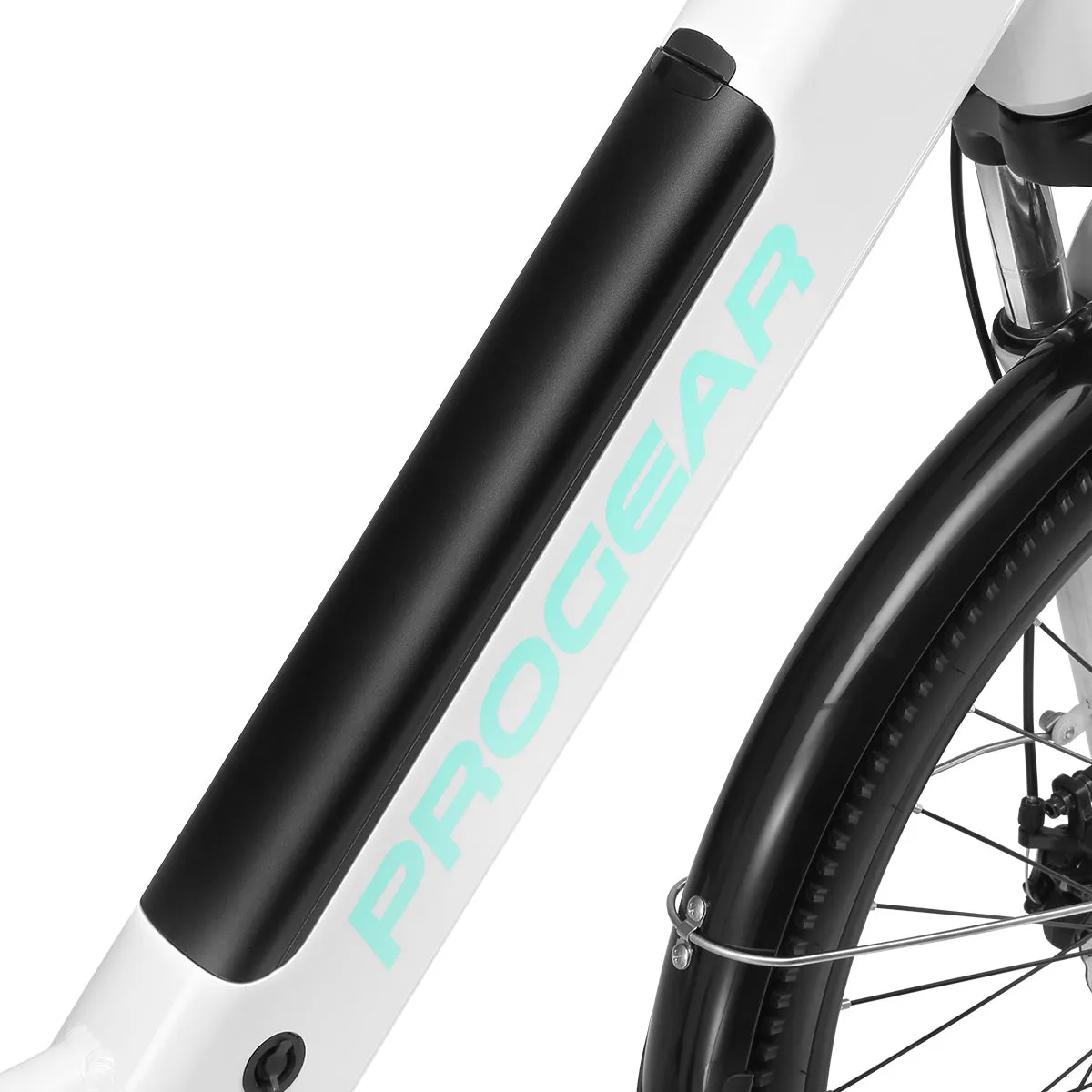

36v Integrated Battery
A great electric bike needs a great battery to work. The E-Sierra comes with a 36v integrated battery cell to keep you going and going. The integrated battery offers a sleek and discrete look, and protects your battery every ride. Safety tested to strict international standards and comes with intelligent protection board for longevity and durability.
250W Hub Drive Motor
Go further with a 250w Electric Motor fitted on the rear hub. Amplify your pedalling power to pick up speed or power through hills with ease to make your cruise or commute effortless.
7 Speed Shimano Drivetrain
Using a quality Shimano drivetrain, the Shimano Tourney provides smooth shifting for 7 gears, so you'll be able to maintain cadence and the right gear ratio for any terrain.
Strong Stopping Power
Strong, reliable stopping power is paramount to any bike rider, especially if you're manoeuvring through tough terrain. That's why our E-Sierra comes with Disc brakes for consistent, high-powered braking performance.
Adjustable Suspension Forks
You'll be able to chew up bumpy and uneven terrain with ease on the E-Sierra's suspension forks. Don't settle for standard forks, you'll be in for an uncomfortable and bumpy ride!

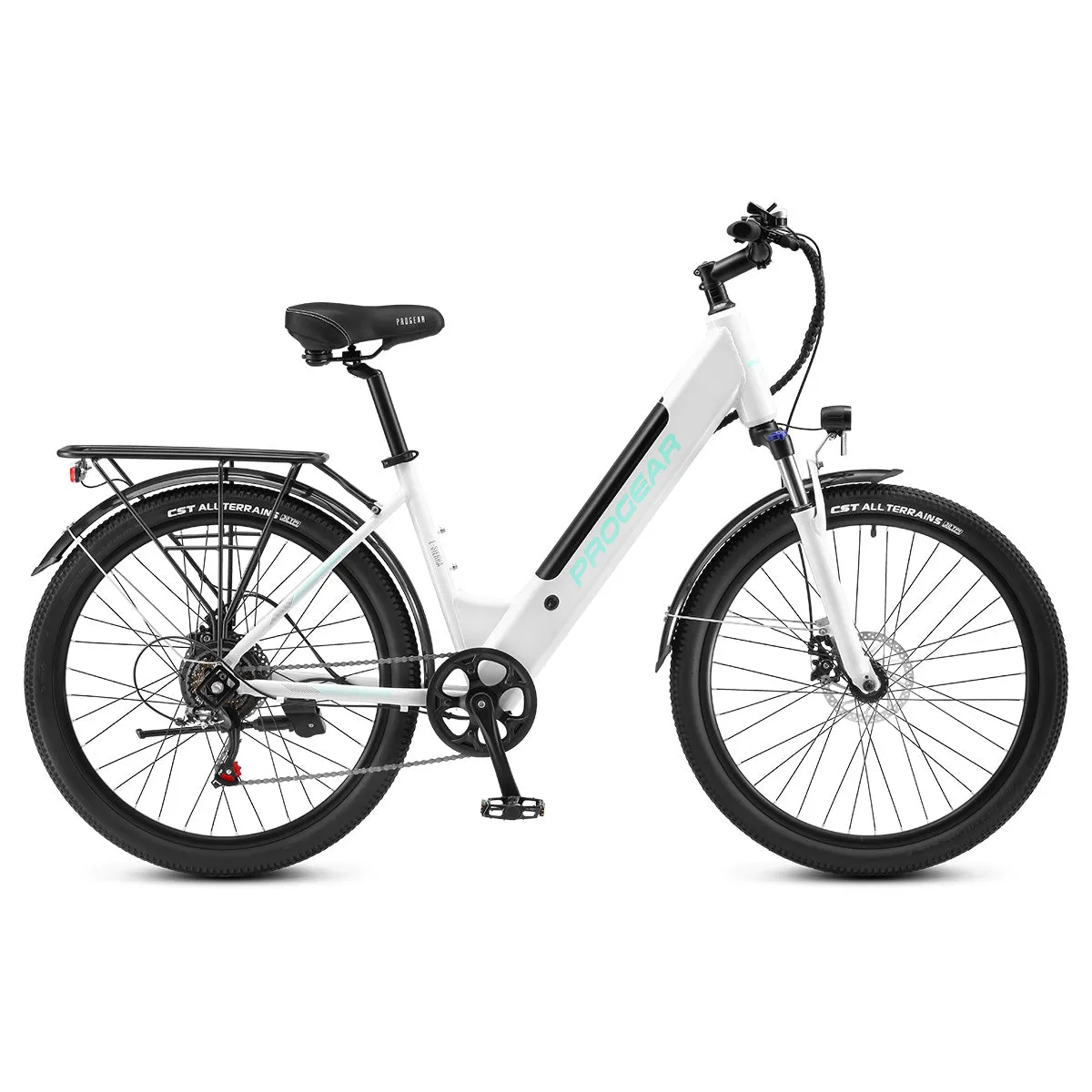

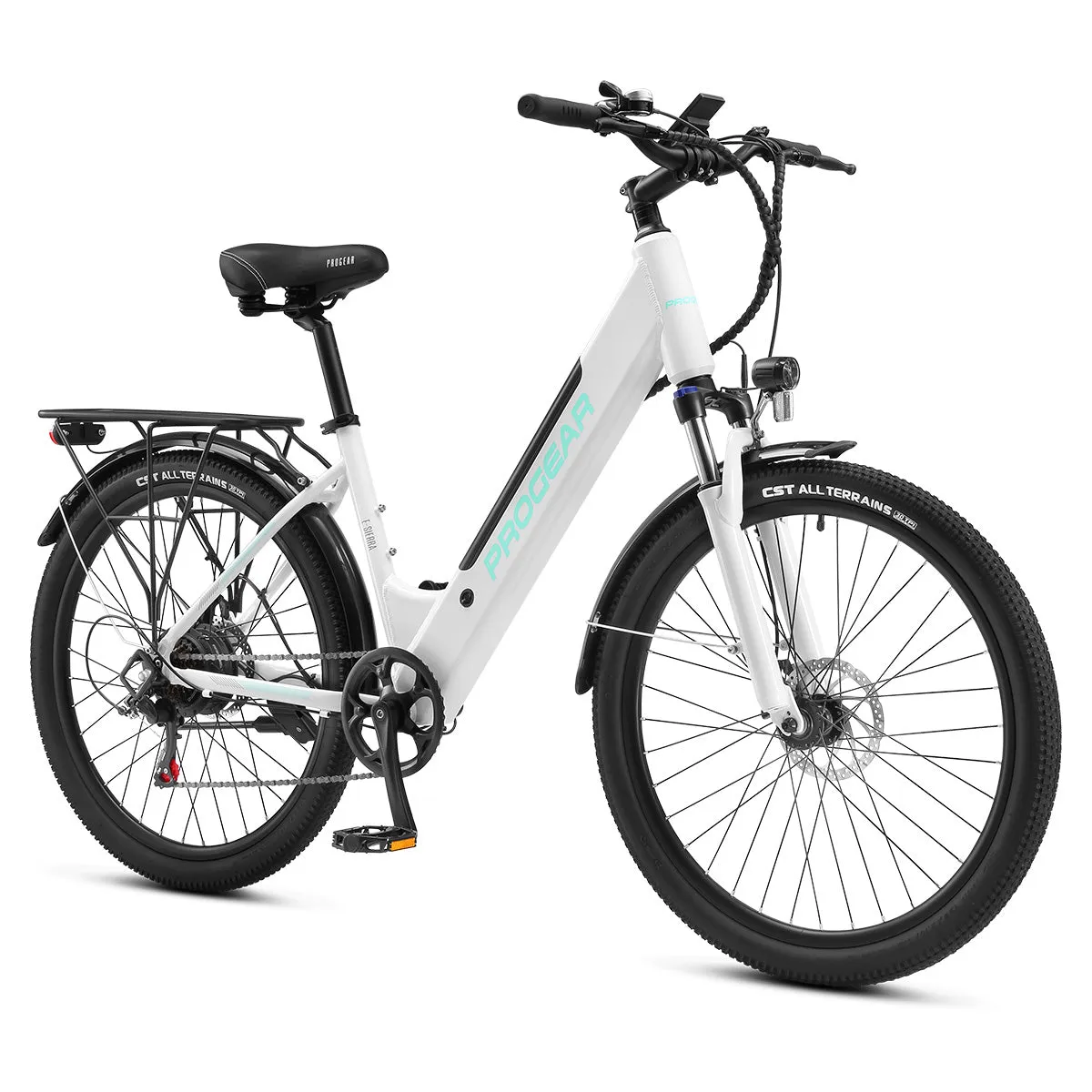

The Blueprints
An awesome package with the following components:
- A. Large Backlit LCD Display
- B. Alloy Frame
- C. 36v Integrated Battery
- D. Quick Release Adjustable Seat-post
- E. 250W Hub Drive Motor
- F. 7 Speed Shimano Drivetrain
- G. Reliable Disc Brakes
- H. Adjustable Suspension Forks
Where to ride?
Specification
Technical Specifications
| Frame | Alloy 26"×17" |
|---|---|
| Fork | Alloy 26" 100mm Travel |
| Handlebar | Alloy Width 660MM. 30mm rise |
| Stem | L:90mm H=40mm -7°, φ31.8 |
| Grip | Rubber 125mm |
| Crankset | 42T x 170mm crank |
| Pedal | Alloy 9/16" |
| Chain | 110L |
| Freewheel | 14-28T |
| Derailleur R | Shimano Tourney 7sp |
| Shifter | Shimano Tourney 7sp |
|---|---|
| Brake | Front & Rear Mechanical Disc Brakes 180mm |
| Hub Front | 36H*100*140 |
| Rim | Double wall, 6"*1.5* 36H |
| Spokes | 13G |
| Tire | CST 26"*2.10 |
| Seat Post | φ30.4*350mm |
| Seat Clamp | Quick Release |
| Kickstand | L = 320mm |
| Net Weight | 27kg |
| Standover | 667mm |
Electrical Components
| Motor | 36V 250W - Complies to EN15194 |
|---|---|
| Front light | 36V 30lUX W/O switch |
| Display | Everdrive M5 Display |
| Controller | 36V*15A |
|---|---|
| Battery | 36v, 10.4AH battery cell |
| Charger | 42V 2A DC2.1 charger port |
Electric Bike Battery Information
The travel distance after a full charge on this e-Bike can vary from 30km to 70km.
There are several factors that will affect how long the battery will last after a full charge.
- Factors include:
- Level of pedal assistance – higher level of assistance will use more battery charge
- Weight of Rider & Luggage – more weight may require more power from the battery
- Terrain & Weather Conditions – Terrain & wind may cause drag, and will require more power to maintain speed.
- Tyre Conditions – Incorrect tyre pressure may create more rolling resistance
- Traffic/Route Conditions – Stop/Start cycling may use more power to accelerate up to appropriate travelling speeds.
Bike Size Guide
| Frame Size Number | 17" |
| Wheel Size | 700c |
| Suggested Height | 175-195cm |
| Minimum Suggested Inseam | 83cm |
| A — Seat Tube | 45.7cm |
| B — Seat Tube Angle | 74° |
| C — Head Tube Length | 18cm |
| D — Effective Top Tube | 58cm |
| E — Chainstay Length | 47cm |
| F — Wheelbase | 112cm |
| G — Standover | 78cm |
