Lightweight
Alloy Frame
700C x 28C
Tyres
16-Speed Shimano
Drivetrain
EverDrive® 250w
Electric Motor

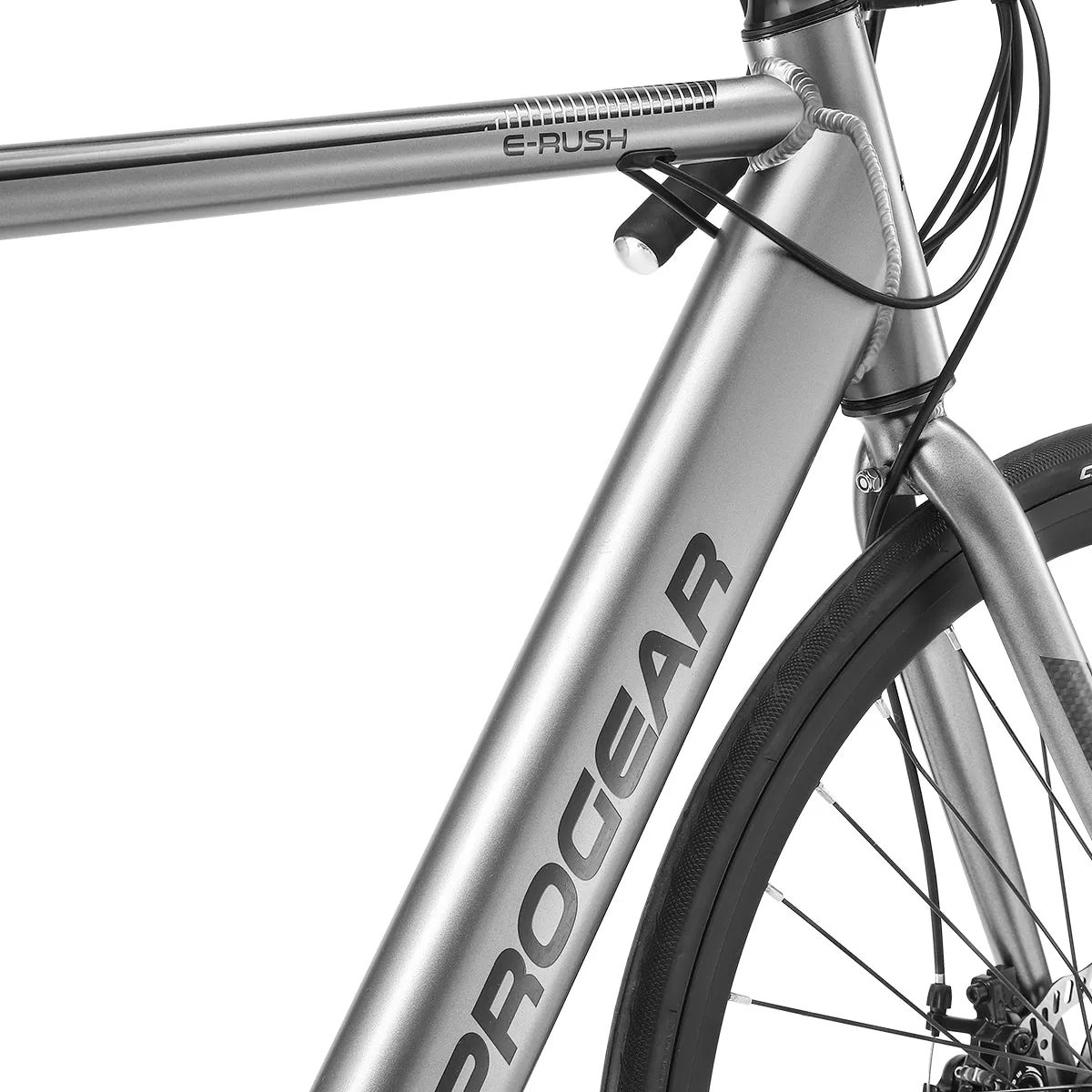

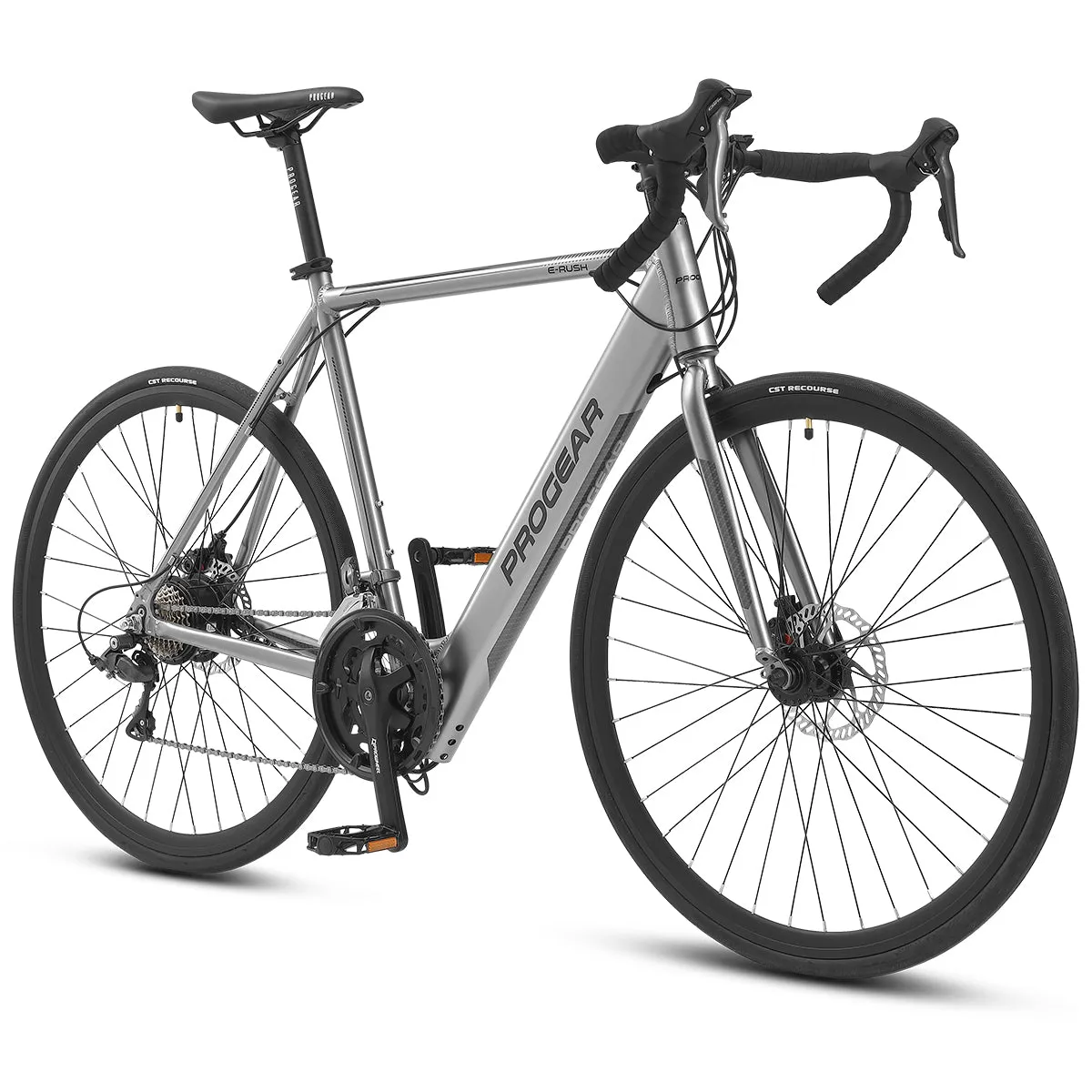

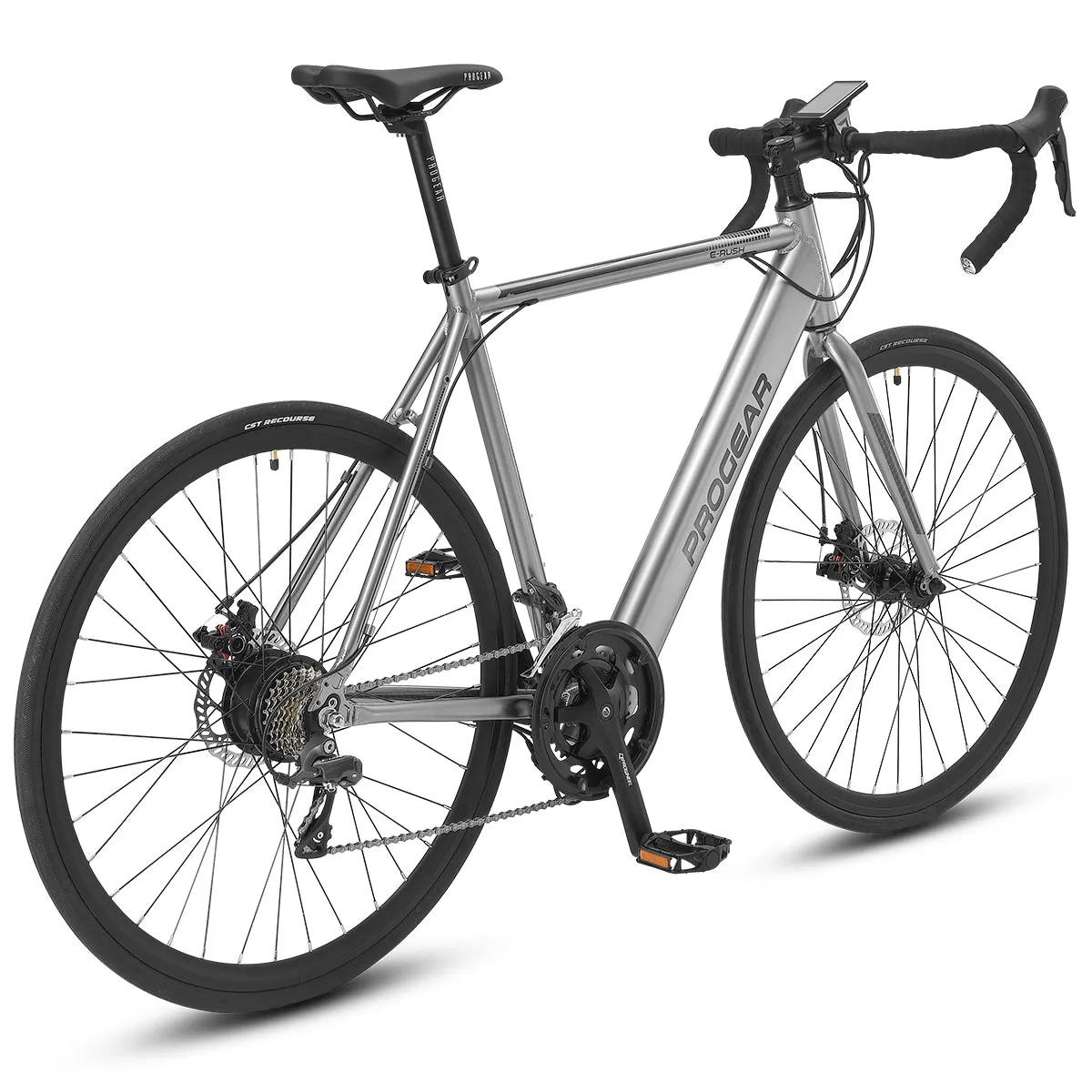

Lightweight Yet Tough
Pedal efficiently with less energy lost through the stiff 6061 aluminium alloy frame. Receive superb balance and handling through the alloy frames impressive balance of strength with low weight. The integrated battery and internal routing within the frame keep cables covered for a discrete and modern look.
Strong Stopping Power
Safety is imperative to any rider. That's why we've equipped the E-Rush with quality Mechanical Disc brakes for consistent, high-powered braking performance.
16-Speed Shimano Drivetrain
Powered by the quality Shimano Claris 2x8-speed drivetrain, you'll be able to shift smoothly to find the right gear ratio and maintain cadence for any terrain.

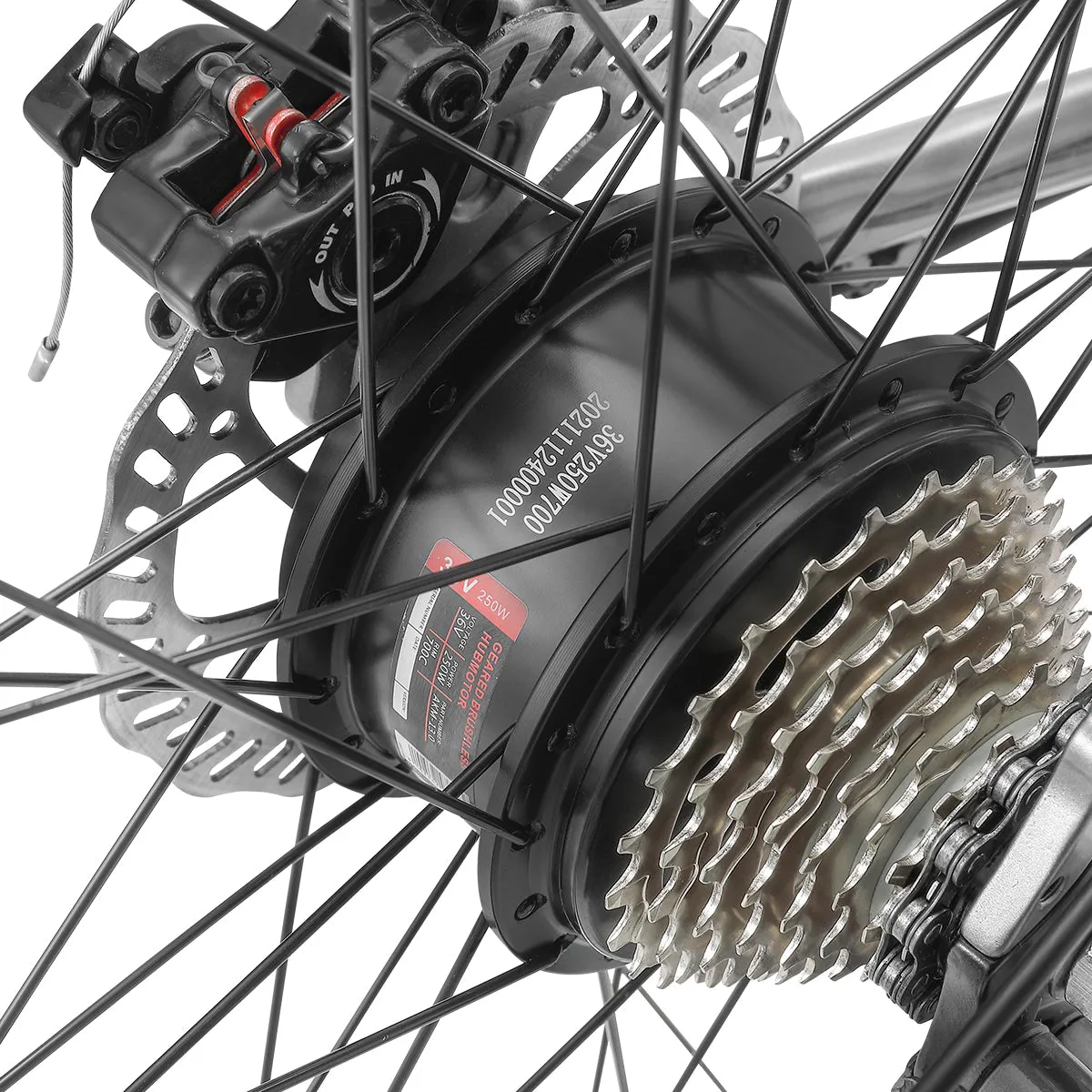

250W EverDrive Motor
Go further than you ever have with an added 250w Electric Motor. Amplify your pedalling power to pick up speed or power through the most challenging inclines and terrain with ease.

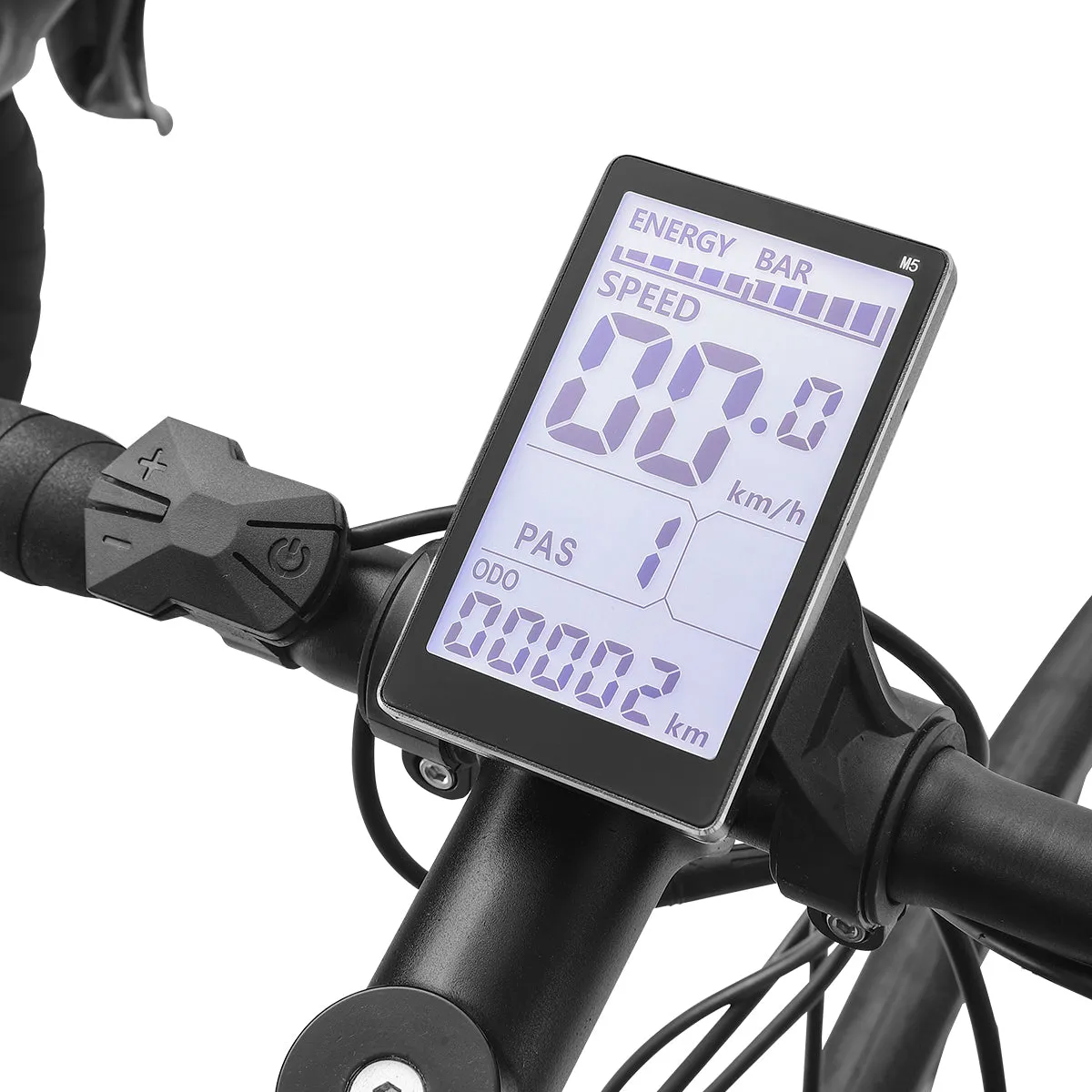

Be in Control
With a streamlined, easy to read EverDrive LCD Display and built-in controller, you'll be able to see your speed, trip stats, current power assist & battery charge. You get 5 levels of power assist, with the higher number providing more motor assistance during pedals.
EverDrive 36v Integrated Battery Cell
A great electric bike needs a great battery to work. The E-Rush comes with a big 36v Panasonic cell to keep you going and going. Safety tested to strict international standards and comes with intelligent protection board for longevity and durability.

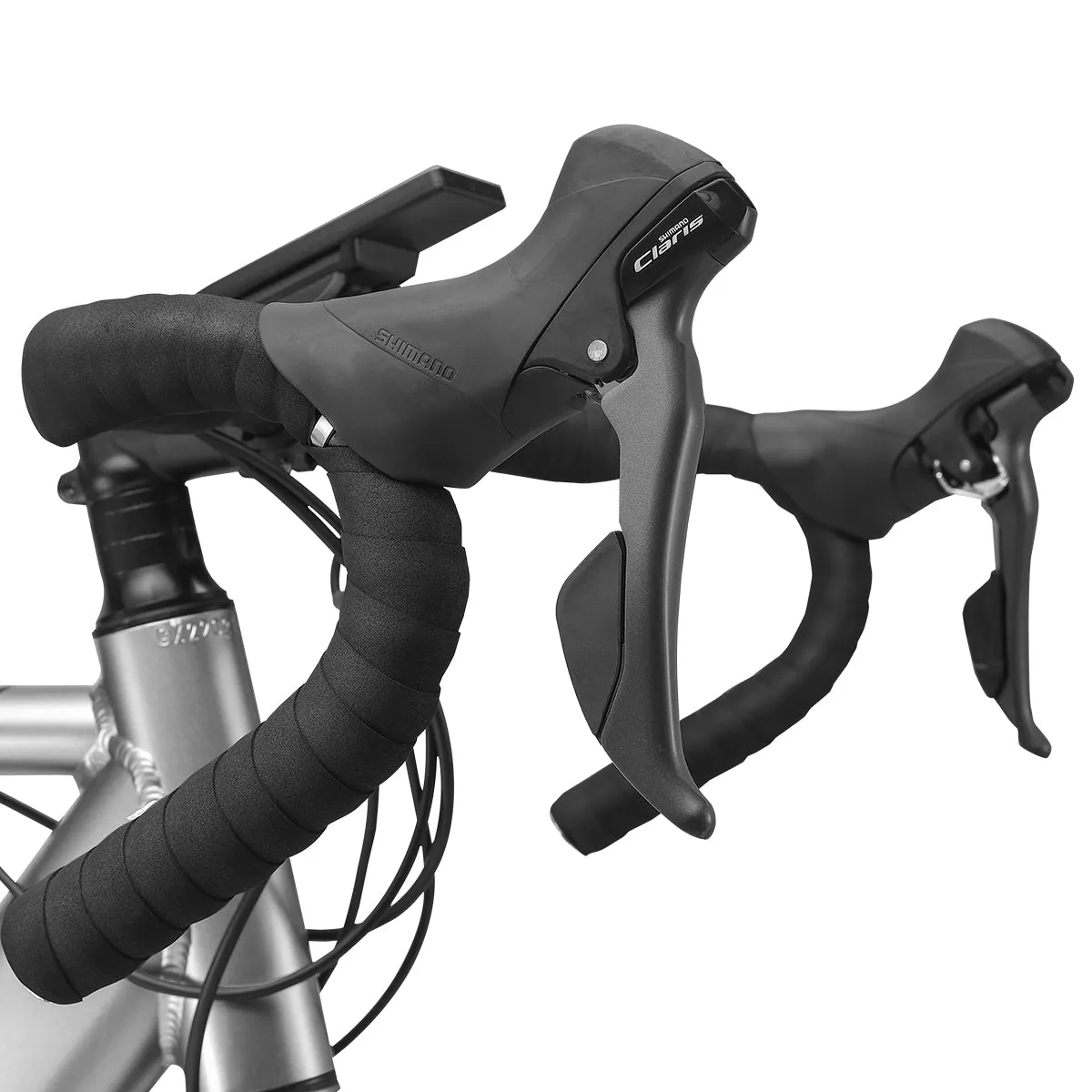

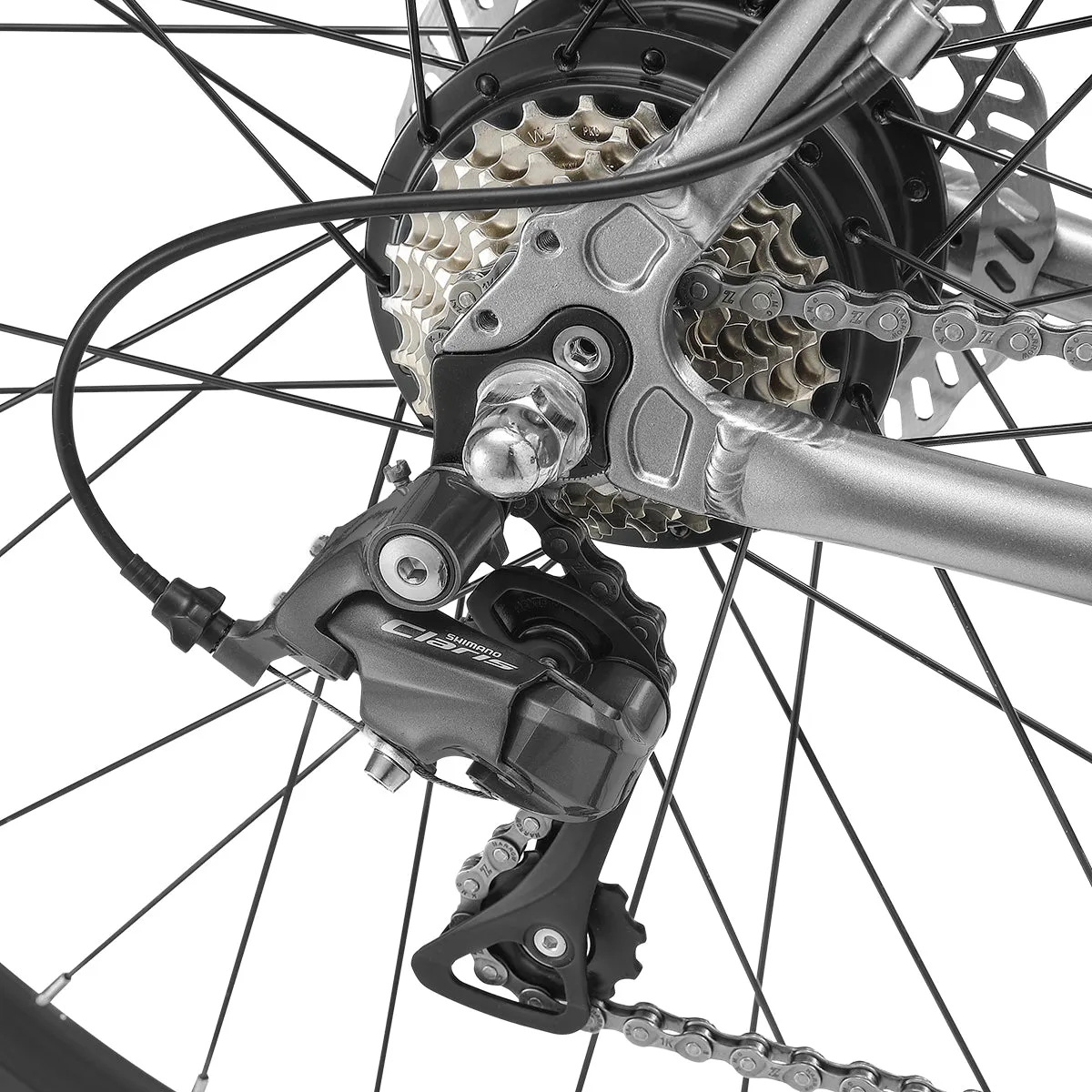

Reliable Shifting
The integrated Shimano Claris 2x8 drop bar shifters make switching gears quick and easy. Experience accurate and smooth shifting in any condition through the front and rear Shimano derailleur.
Specification
Technical Specifications
| Frame Sizes | Sizes 53cm, 56cm |
|---|---|
| Frame | 6061 Alloy 700C |
| Fork | 700c Steel Fork |
| Handlebar | Drop Bars W:440mm Ø25.4mm |
| Stem | 80mm angle -7° |
| Seatpost | Φ27.2 L:350mm |
| Seat Clamp | Quick Release |
| Saddle | Black Saddle w/ Steel Rails |
| Pedals | 9/16" Alloy |
| Gear Shifters | Shimano Claris, ST-R2000 |
| Front Derailleur | Shimano Claris, FD-R2000 |
| Rear Derailleur | Shimano Claris, RD-R2000, 8-Speed |
| Front Brakes | Mechanical Disc Brake, 160mm rotor |
| Rear Brakes | Mechanical Disc Brake, 160mm rotor |
| Brake Levers | Integrated with Shift Lever |
| Freewheel | Shimano CS-HG50 8-Speed 2-13-15-17-19-21-23-25T |
|---|---|
| Chainwheel | 34T/52T |
| Crank left | Crank 170cm |
| Crank right | Crank 170cm |
| Chain | 1/2" 110L |
| Chainguard | Integrated |
| Bottom Bracket | BB68*126mm |
| Headset | 28.6 Threadless Headset |
| Front Hub | 36H*100*108,w/ quick release |
| Rear Hub | EverDrive 36V*250W speed 25KM/H |
| Spokes | 13G Stainless Steel |
| Tyre / | 700*28C |
| Tube | 700*28C |
| Rim | 700C*1.5*13G*36H, Height:30mm |
| Bell | Included |
Electrical Components
| Battery | 36V 8.7AH |
|---|---|
| Display | EverDrive M5 display |
| Sensor | Dual hall |
| Charger | 42V-2A/100-240VDC |
|---|---|
| Motor | EverDrive 36V*250W speed 25KM/H complies with EN15194 |
| Controller | 36V, 13A, 36V 250W motor, 5S communication |
Electric Bike Battery Information
The travel distance after a full charge on this e-Bike can vary from 30km to 70km.
There are several factors
that will affect how long the battery will last after a full charge.
- Factors include:
- Level of Pedal Assistance – Higher level of assistance will use more battery charge.
- Weight of Rider & Luggage – More weight may require more power from the battery.
- Terrain & Weather Conditions – Terrain & wind may cause drag, and will require more power to maintain speed.
- Tyre Conditions – Incorrect tyre pressure may create more rolling resistance.
- Traffic/Route Conditions – Stop/Start cycling may use more power to accelerate up to appropriate travelling speeds.
Bike Size Guide
| Frame Size Number | 53cm | 56cm |
| Wheel Size | 700c | 700c |
| Suggested Height | 160-180cm | 180-195cm |
| Minimum Suggested Inseam | 82cm | 84cm |
| A - Seat Tube | 53cm | 56cm |
| B - Seat Tube Angle | 73.5° | 73.5° |
| C - Head Tube Length | 15.5cm | 15.5cm |
| D - Effective Top Tube | 56cm | 58.1cm |
| E - Chainstay length | 42.5cm | 42.5cm |
| F - Wheelbase | 101.01cm | 103.12cm |
| G - Standover | 75.5cm | 80cm |
