“These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer.”

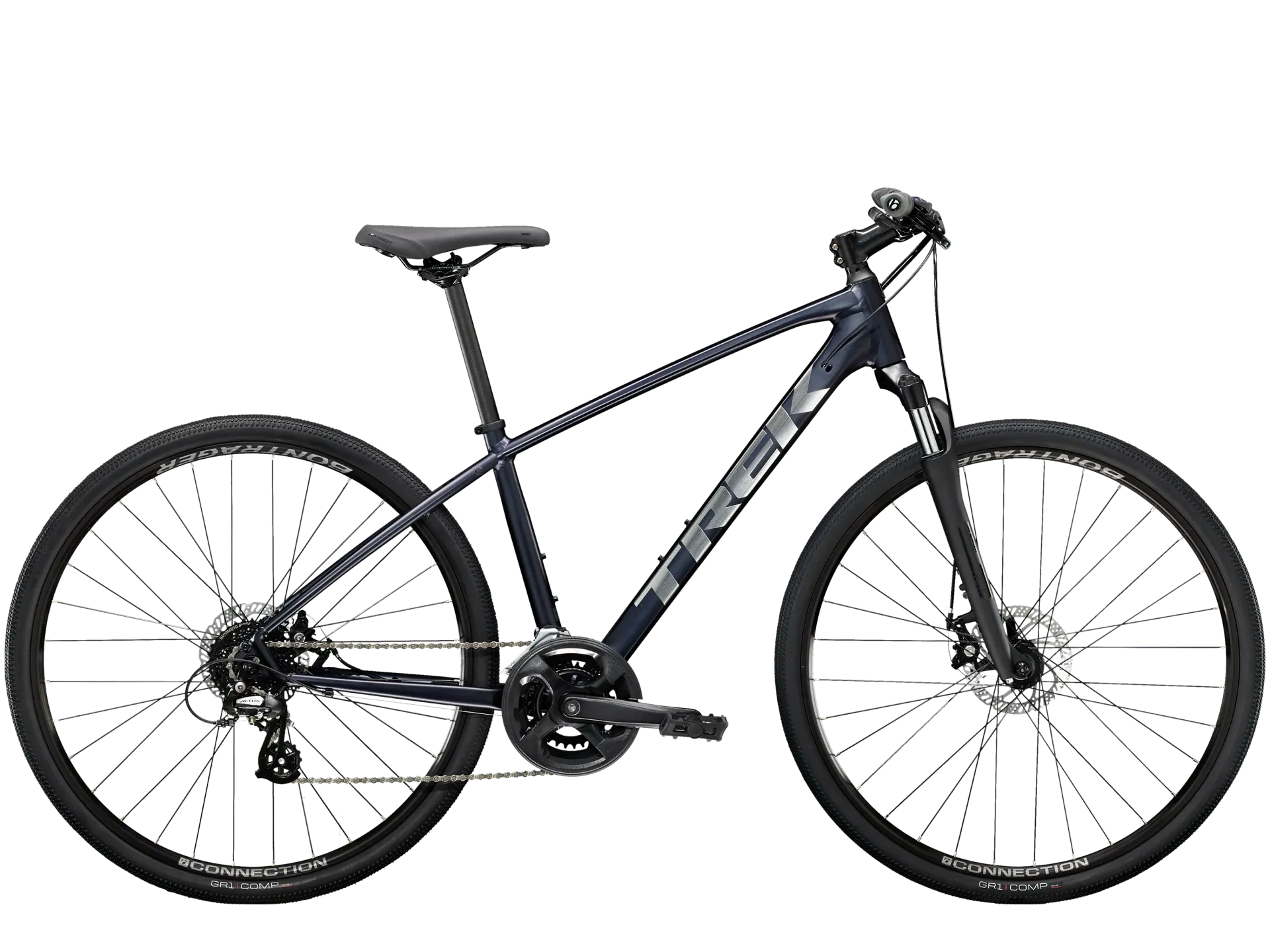

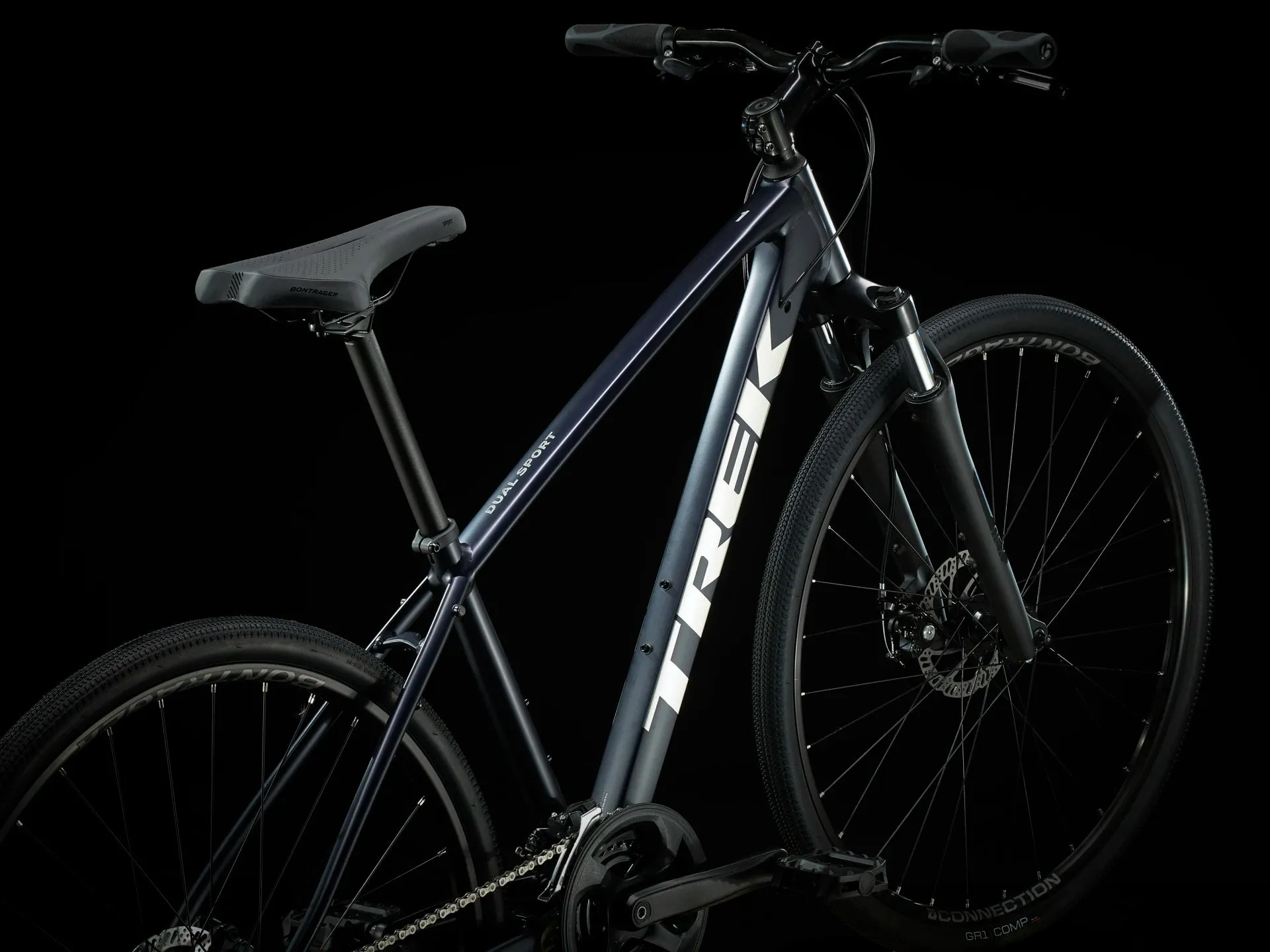

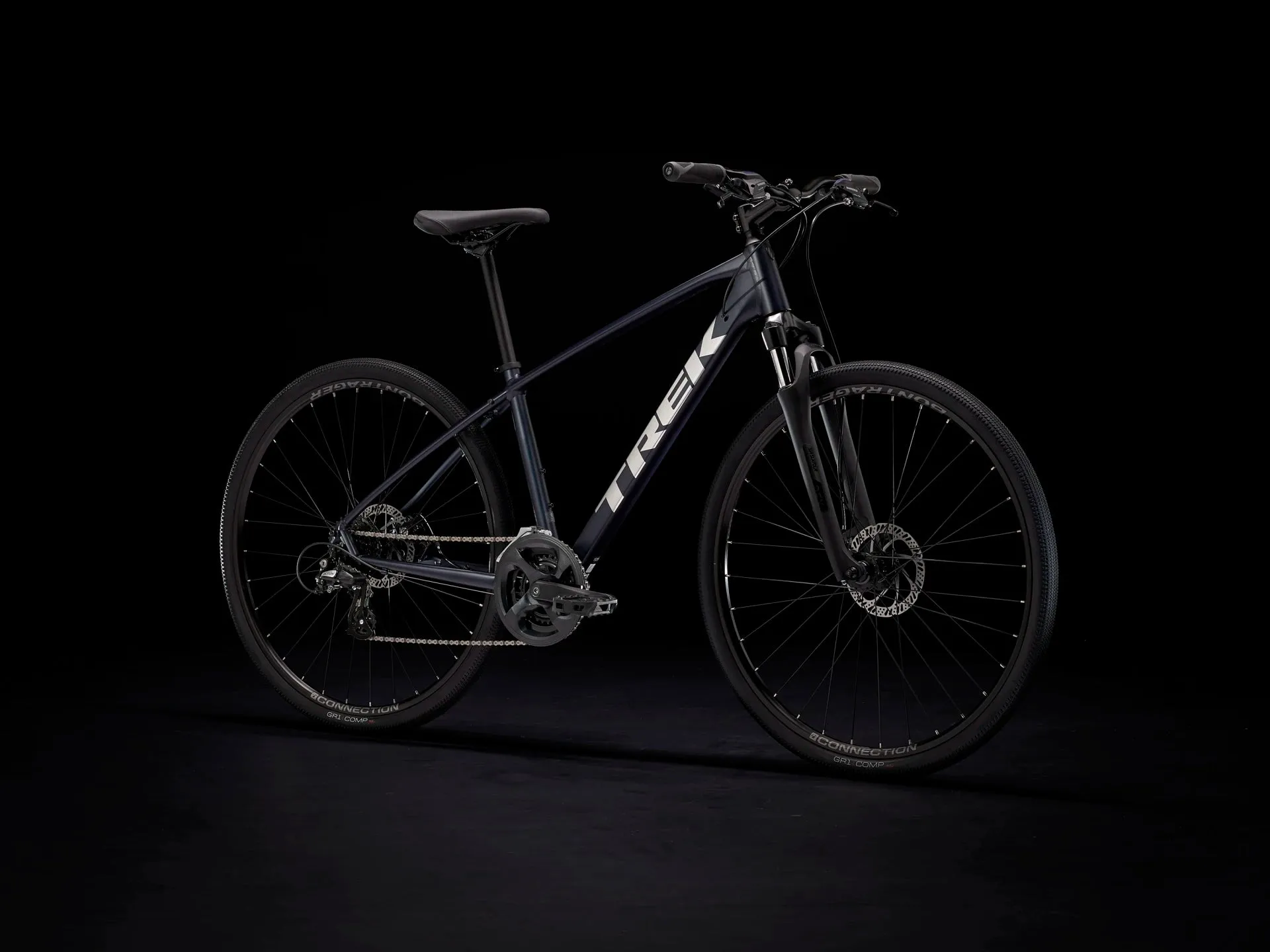

Dual Sport 1 is a hybrid bike in the true sense of the term: it excels on a variety of surfaces, and can take you from smooth pavement to light off-road trails in a single ride. A reliable frame, suspension fork, and all-terrain tires give Dual Sport 1 an incredible amount of capability on recreational fitness rides.

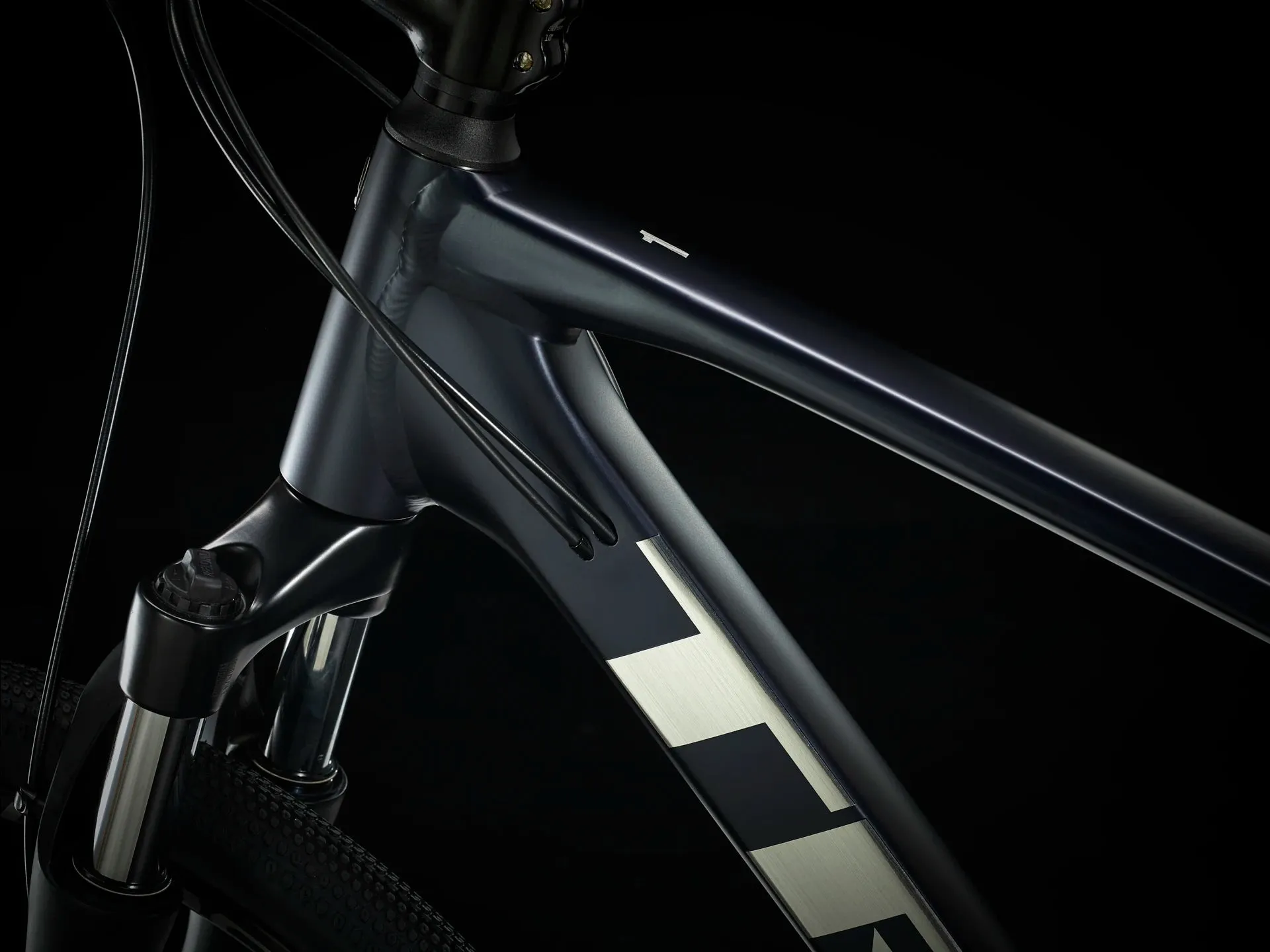

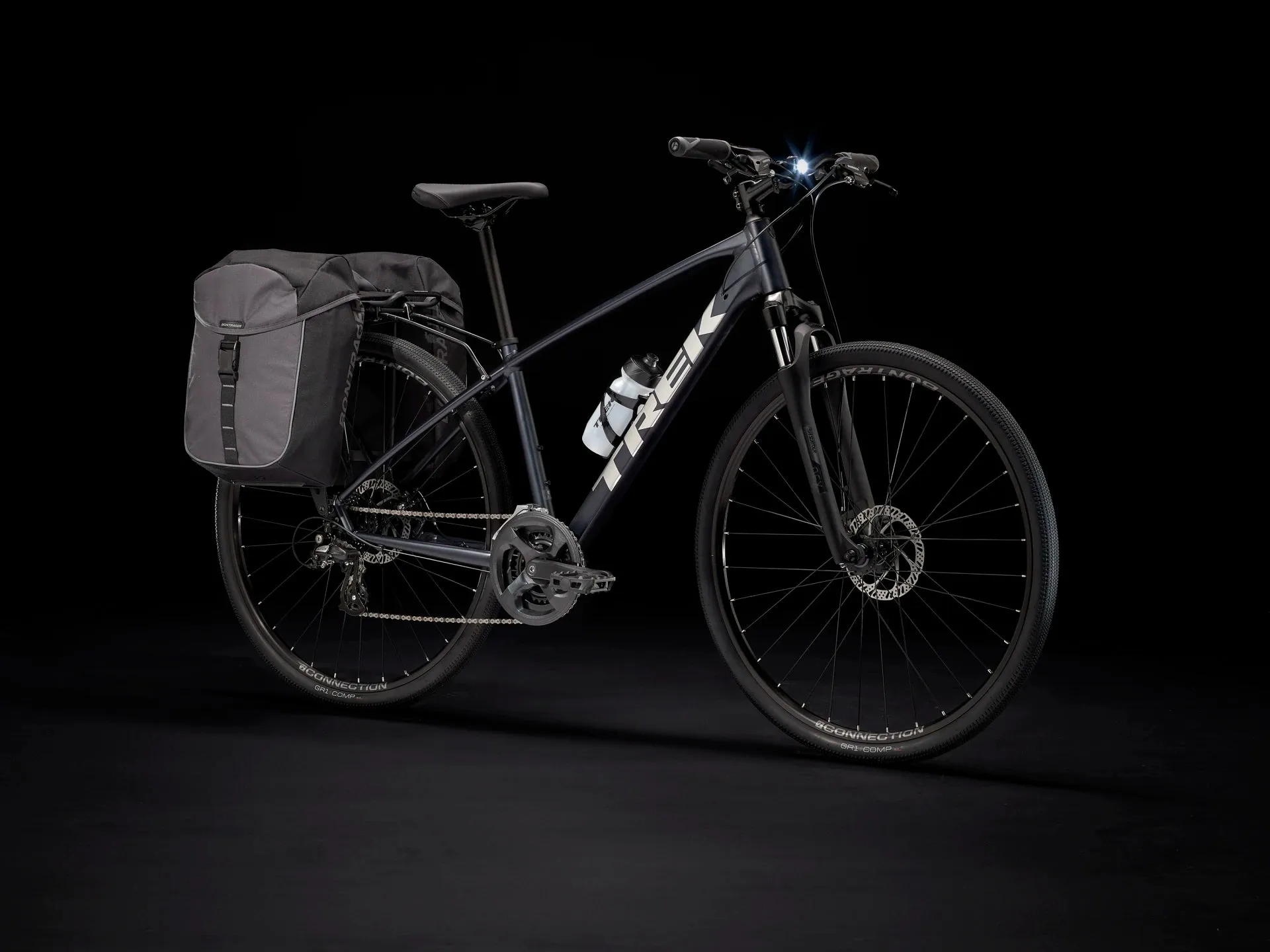

| *Frame | Size: S Alpha Gold Aluminium, curved top tube, DuoTrap S-compatible, internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135x5 mm QR |
|---|---|
| Size: M, L, XL Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135x5 mm QR | |

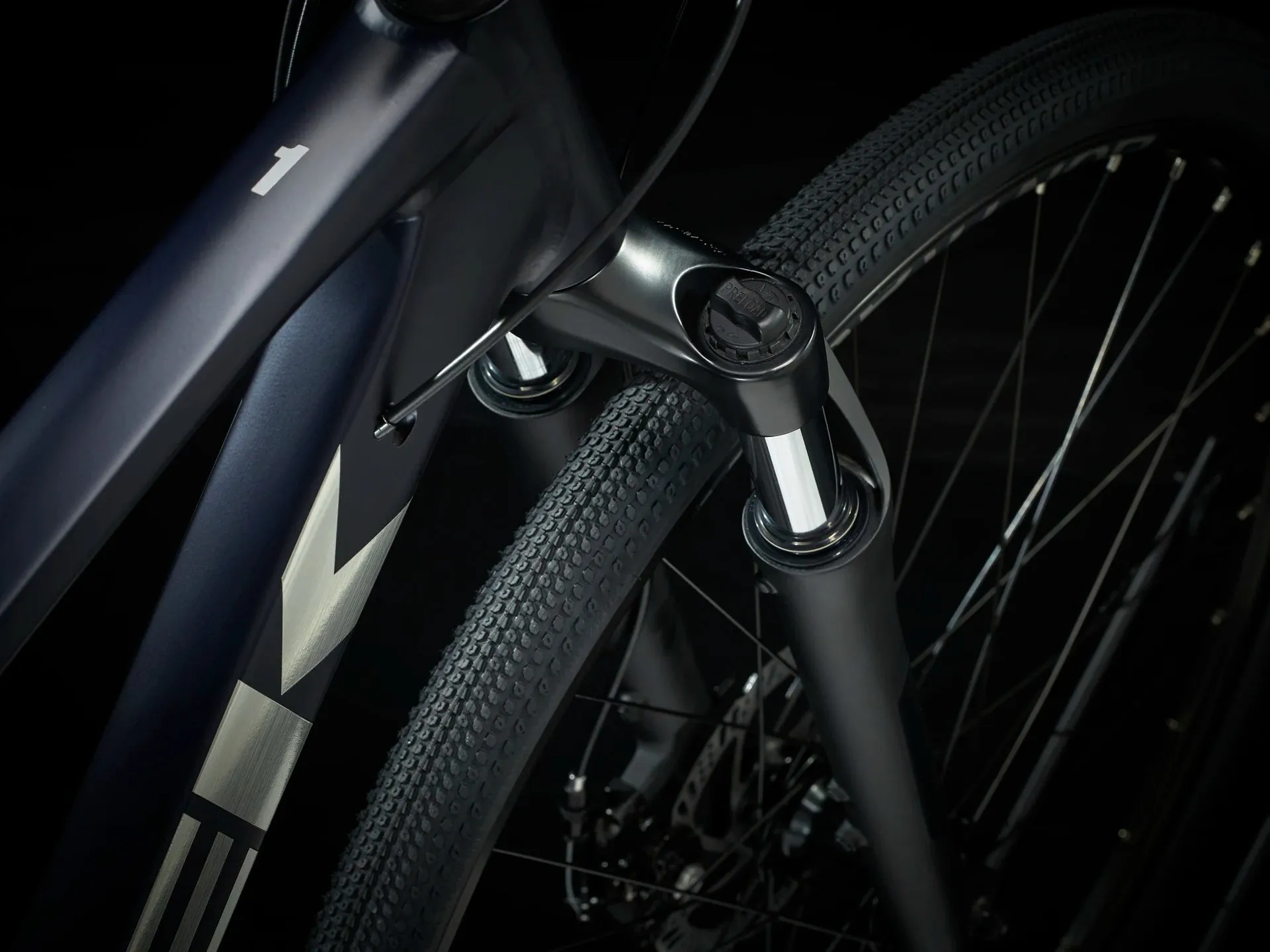

| Fork | SR Suntour NEX, coil spring, preload, 100x5mm QR, 63mm travel |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | |

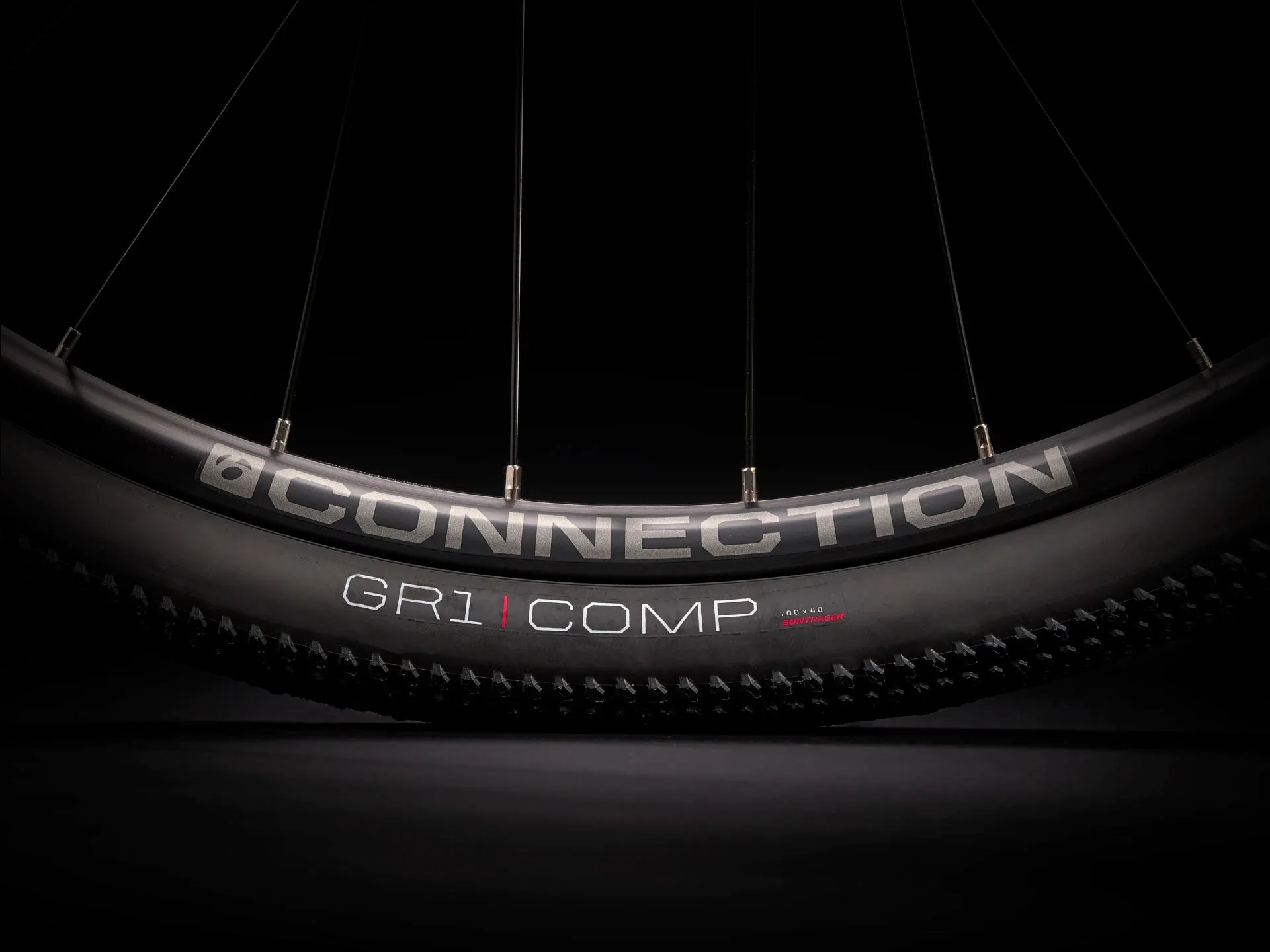

| Rim | Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve |
| Tire | |
| Max tire size | Frame: 700x45mm with fenders, 29x2.10" without fenders, Fork: See manufacturer |

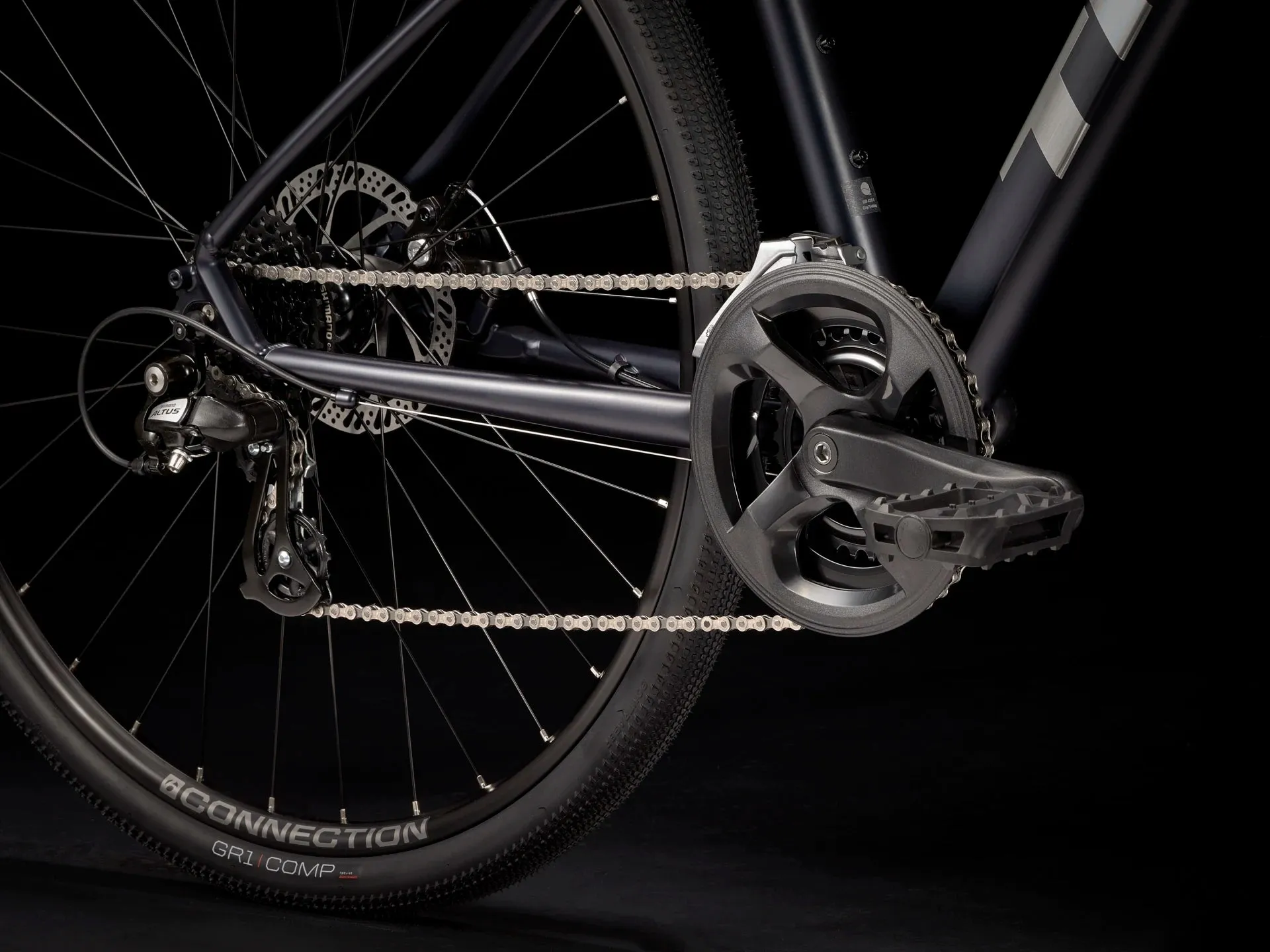

Drivetrain
| *Shifter | Size: S, M, L, XL Shimano EF500, 2 speed |
|---|---|
| Size: S, M, L, XL Shimano EF500, 8 speed | |
| Front derailleur | Shimano Tourney TY710, 34.9 mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Altus M310 |
| Crank | |
| Bottom bracket | Sealed cartridge, 68mm |
| Cassette | Shimano HG31, 11-32, 8 speed |
| Chain | KMC Z8.3 |
| Pedal | Wellgo nylon platform |
Components

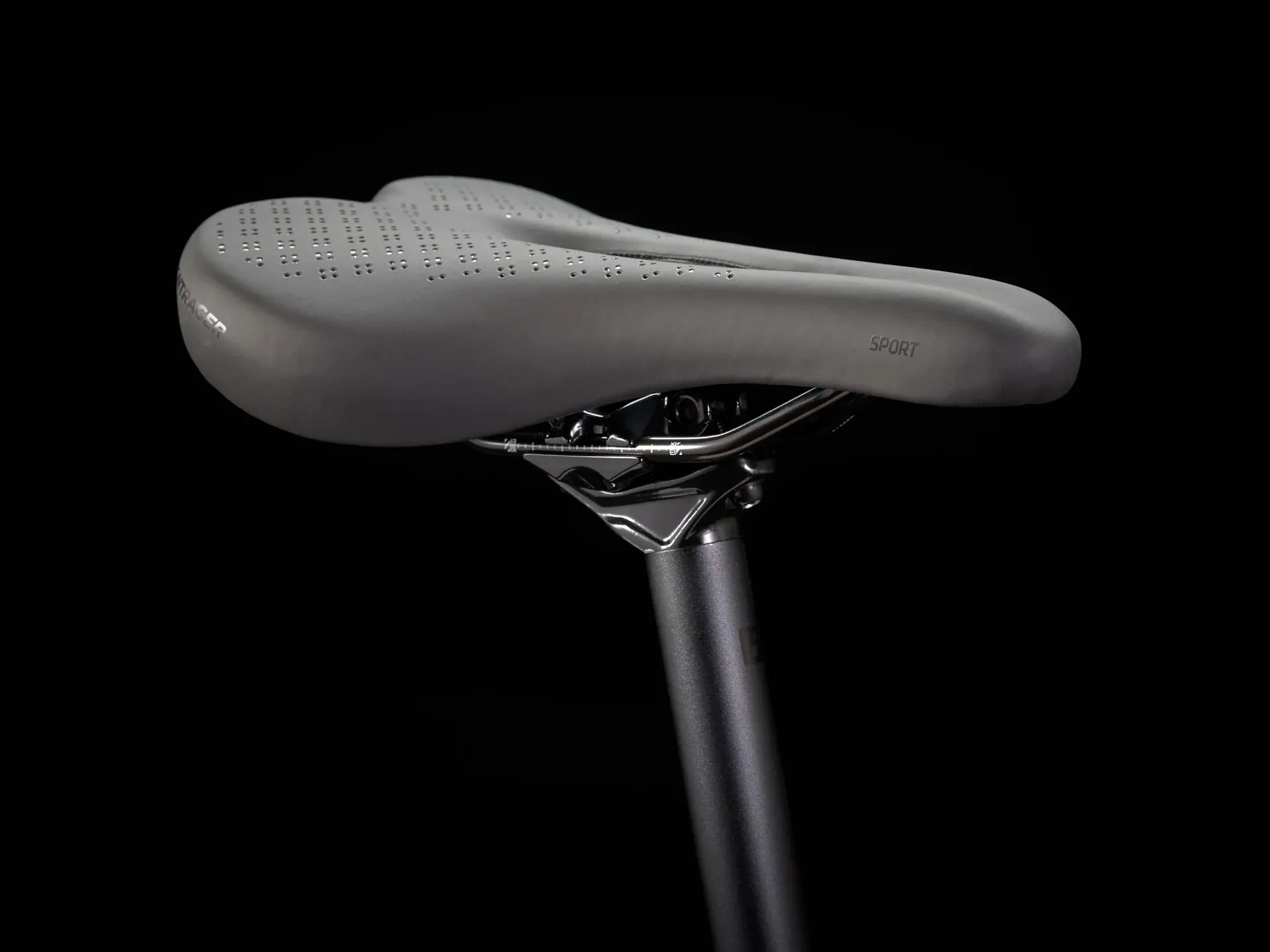

| Saddle | |
|---|---|
| Seatpost | Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
| *Handlebar | Size: S, M Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width |
| Size: L, XL Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width | |

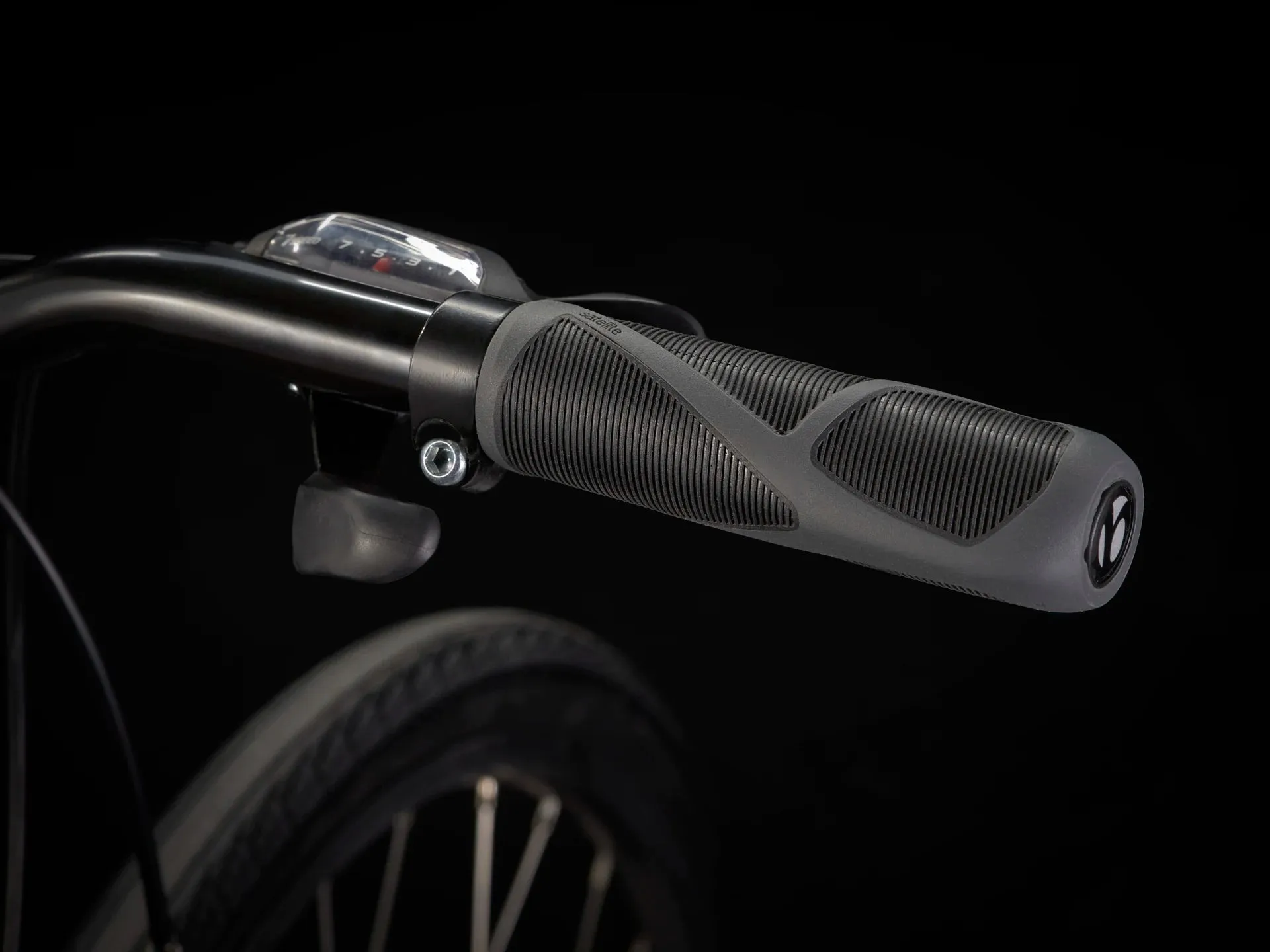

| Grips | Bontrager Satellite |
| *Stem | Size: S, M |
| Size: L, XL | |
| Headset | 1-1/8" threadless, sealed cartridge bearings |

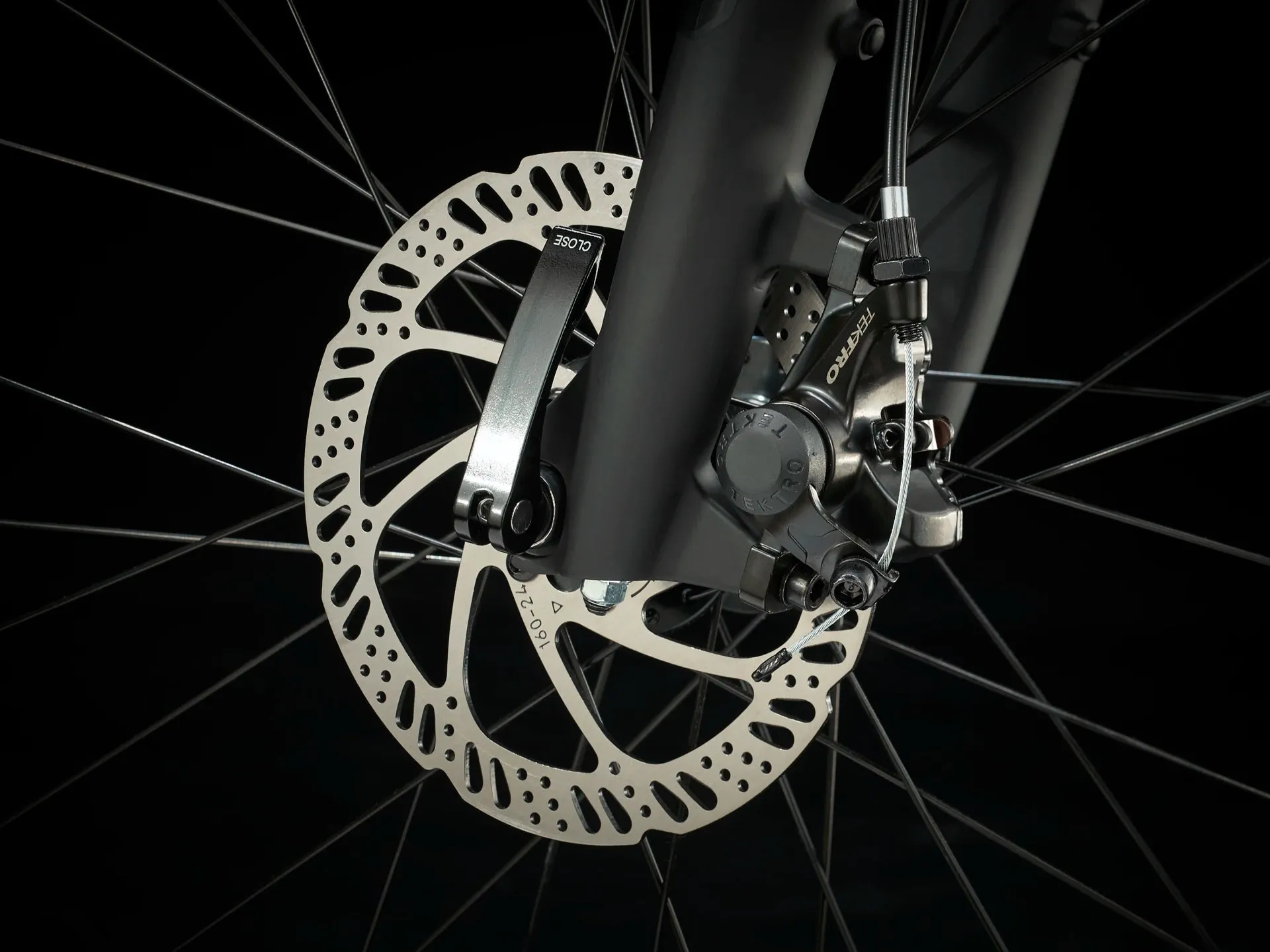

| Brake | Tektro MD-M280 mechanical disc, 160mm rotor |
Weight
| Weight | M - 13.54 kg / 29.86 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
