“These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer.”

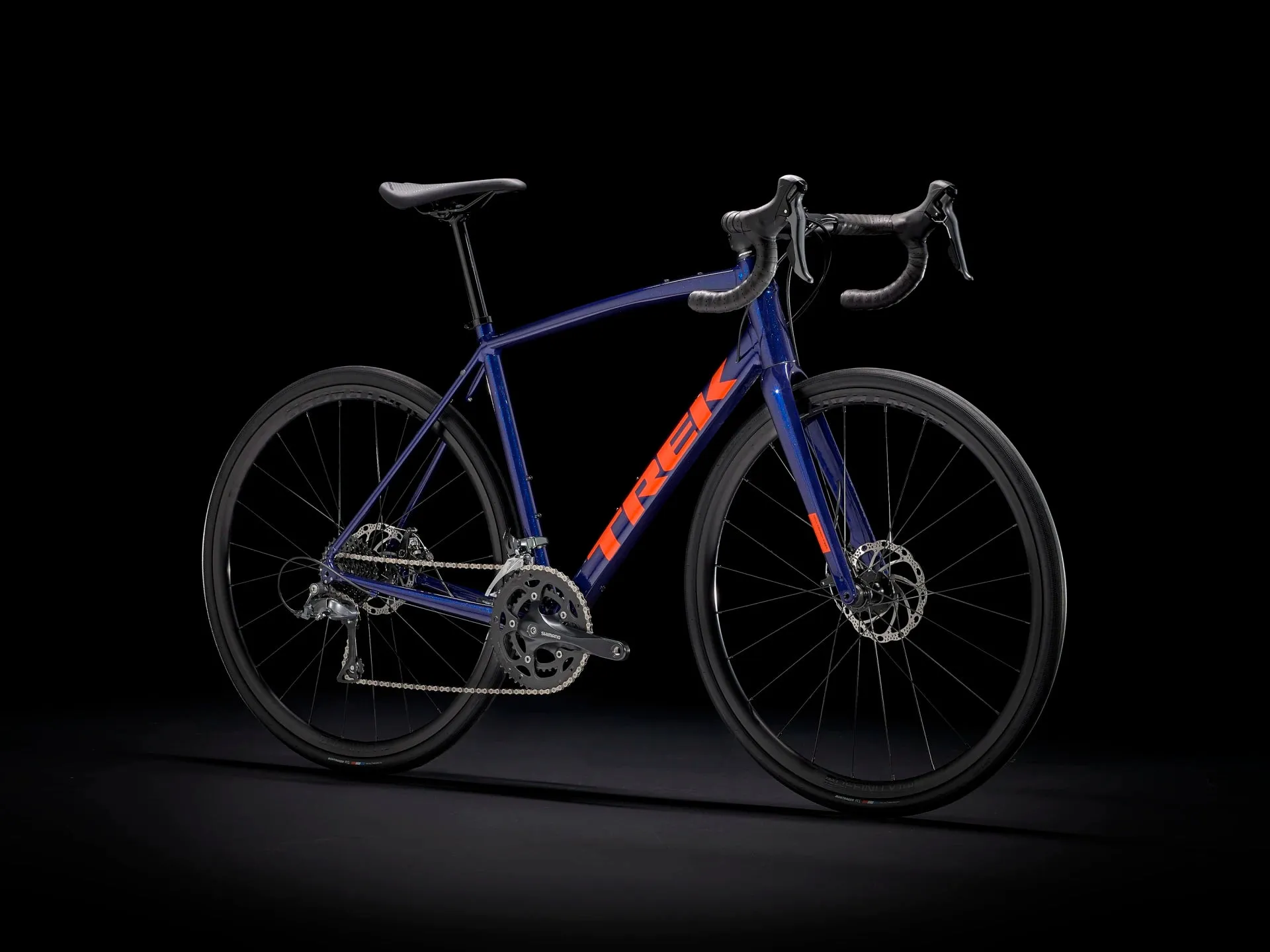

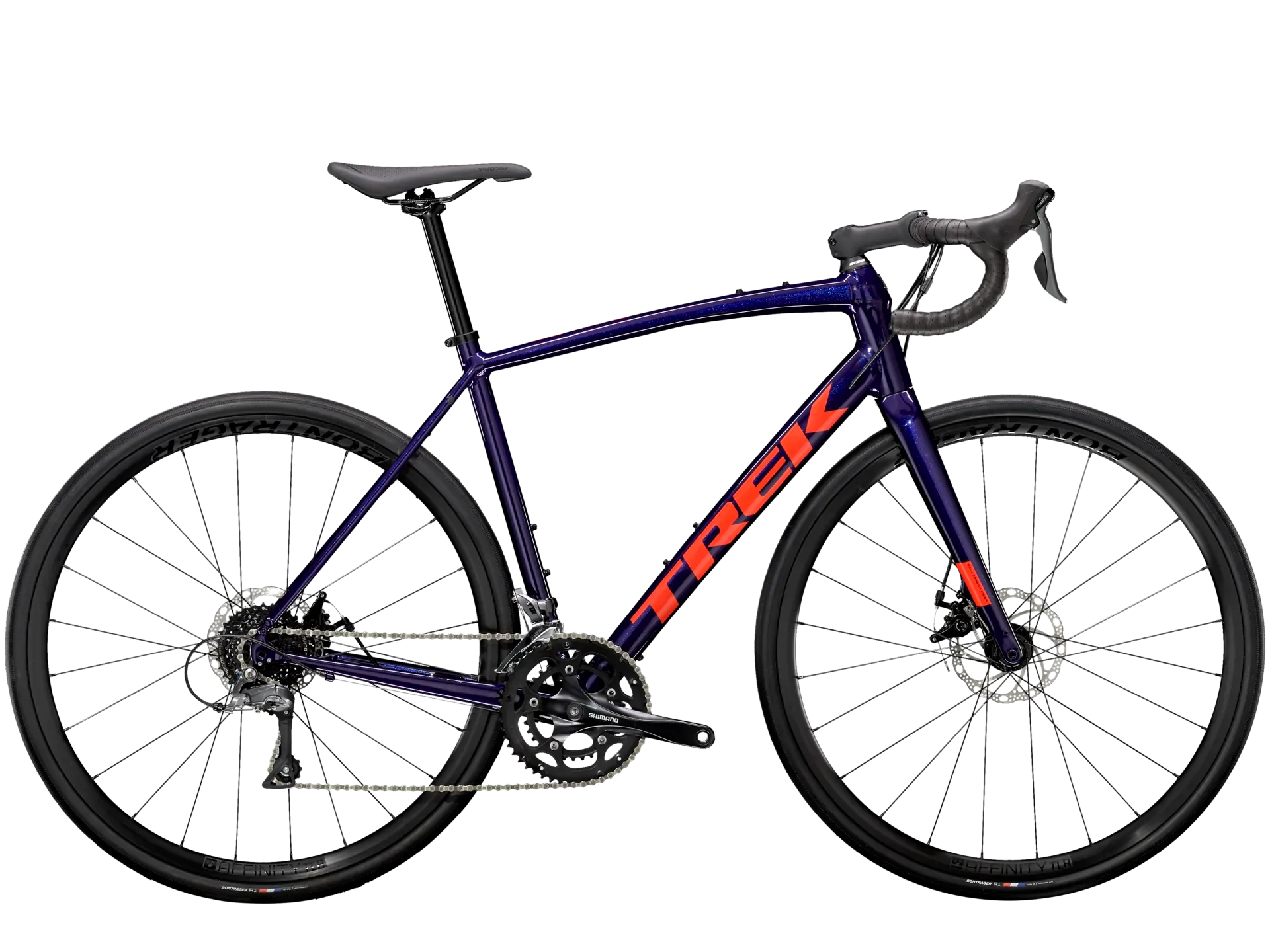

Domane AL 2 Disc is an awesome pick for your first road bike. The lightweight frame is responsive yet stable for a fun, confidence inspiring ride. Plus, it's built with reliable parts and disc brakes that provide better stopping power in any weather. Best of all, the comfort-focused design makes every single ride more enjoyable.

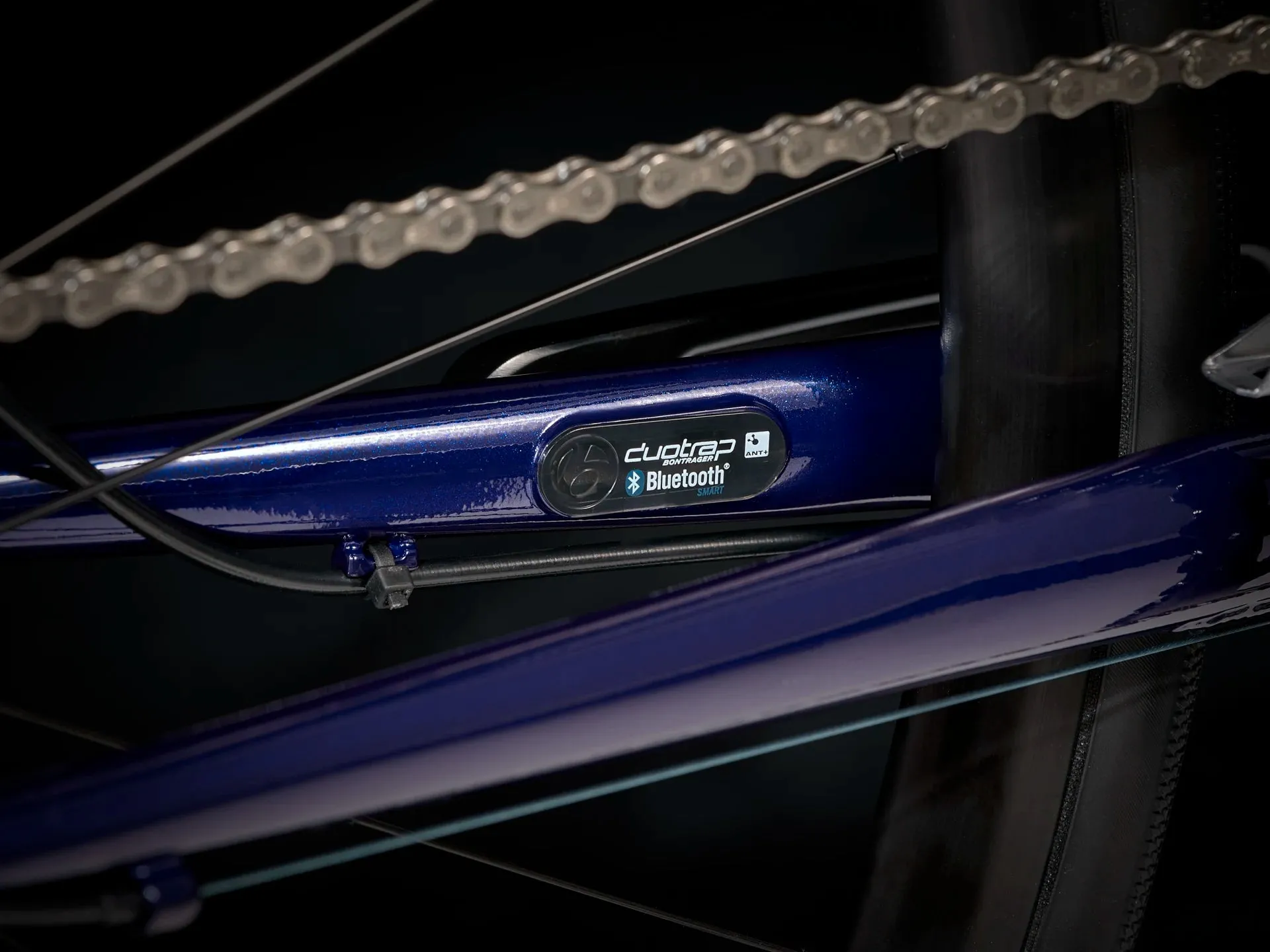

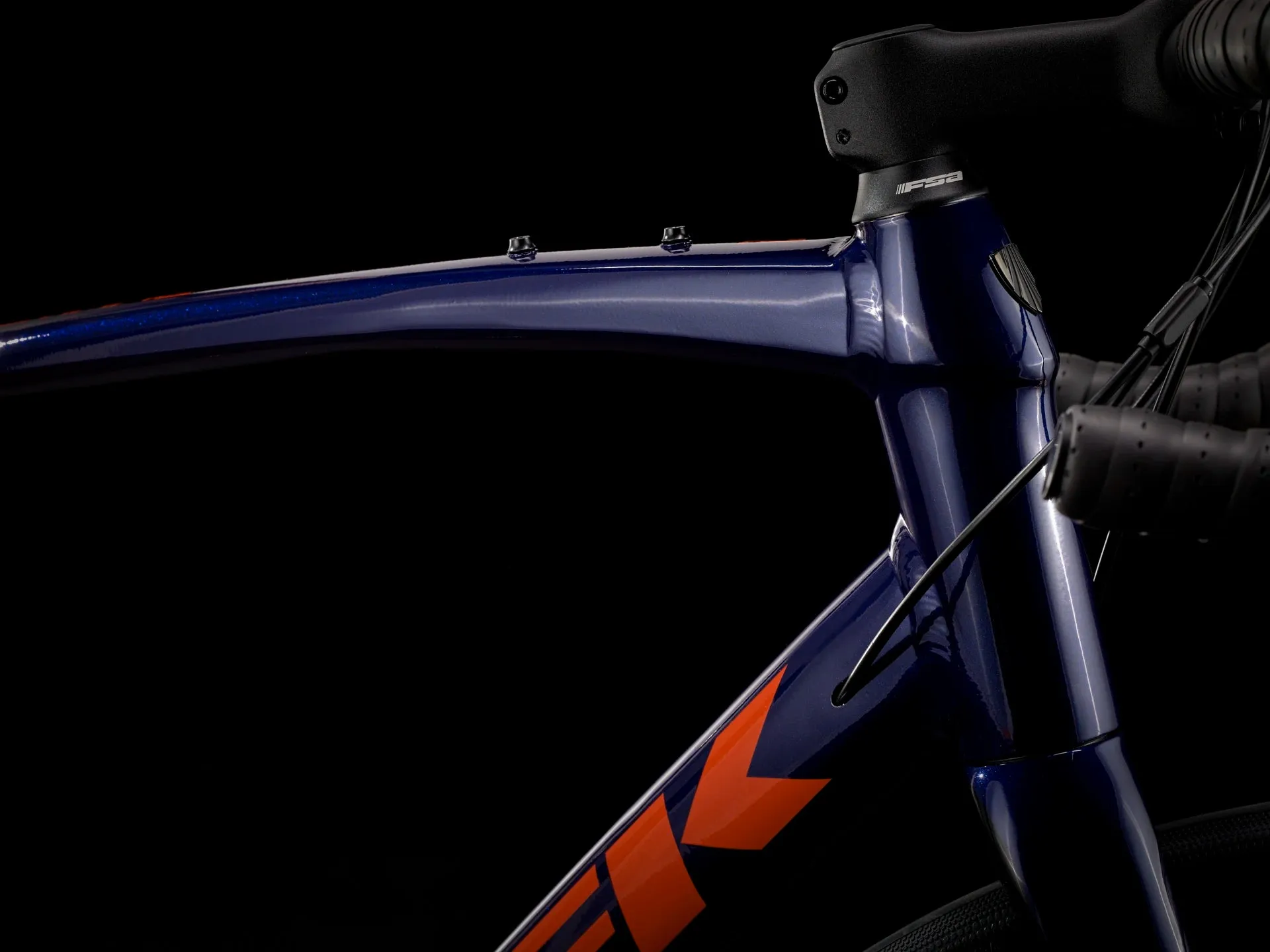

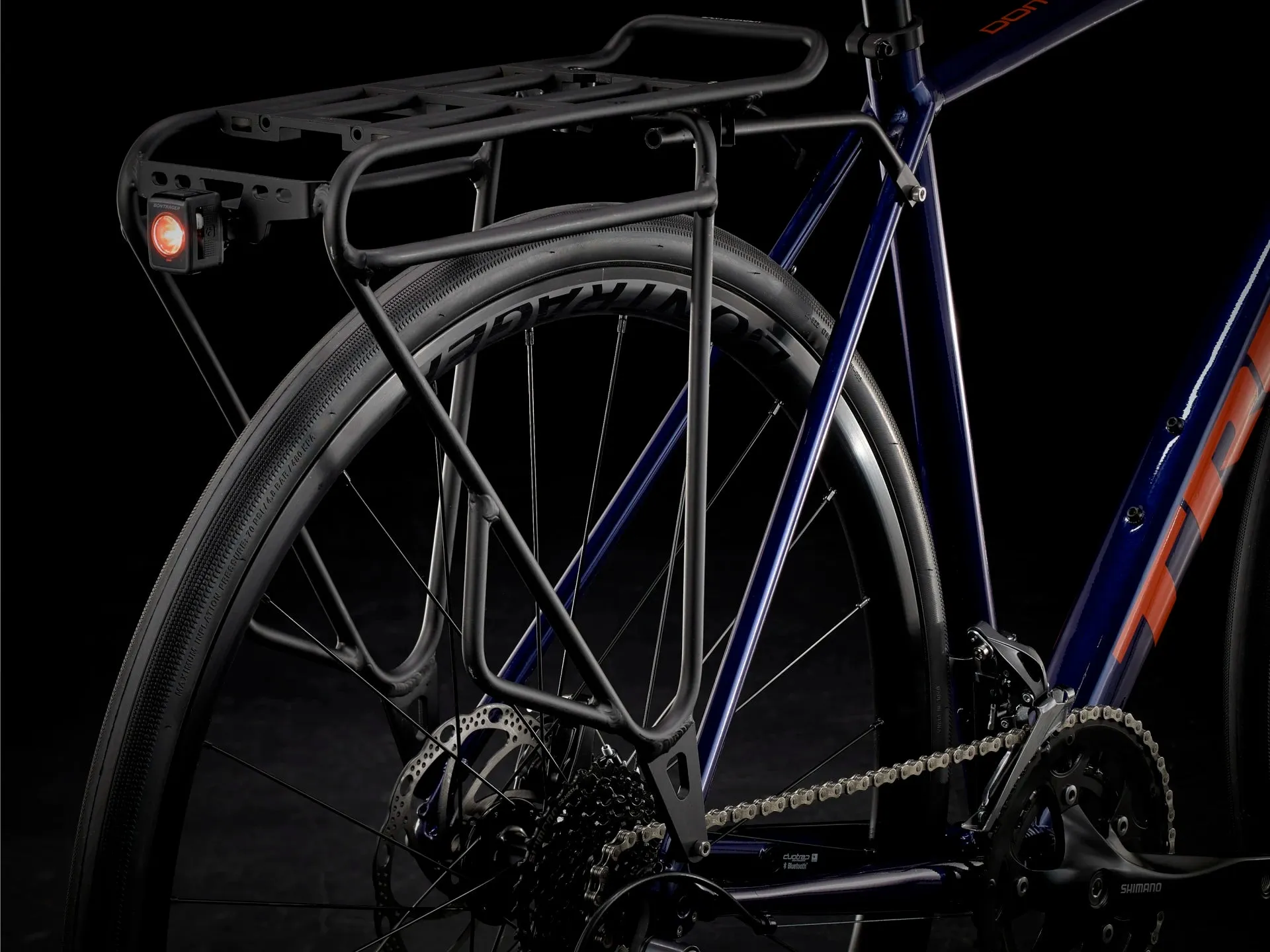

| Frame | 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle |
|---|---|
| *Fork | Size: 44, 49, 52, 54, 56, 58, 61 |
| Size: 49, 52, 54, 56, 58, 61 Domane AL carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle | |
| Frame fit | Endurance |
Wheels
| Hub front | Formula RX-512 alloy, 6-bolt, 100x12mm thru axle |
|---|---|
| Skewer front | |
| Hub rear | Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle |
| Skewer rear | |
| *Rim | Size: 44, 49, 52, 54, 56, 58, 61 |
| Size: 44, 49, 52, 54, 56, 58, 61 Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve | |
| Size: 49, 52, 54, 56, 58, 61 Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve | |
| Spokes | 14g stainless steel, black |
| Tire | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm |
| Max tire size | 35mm without fenders, 32mm with fenders |

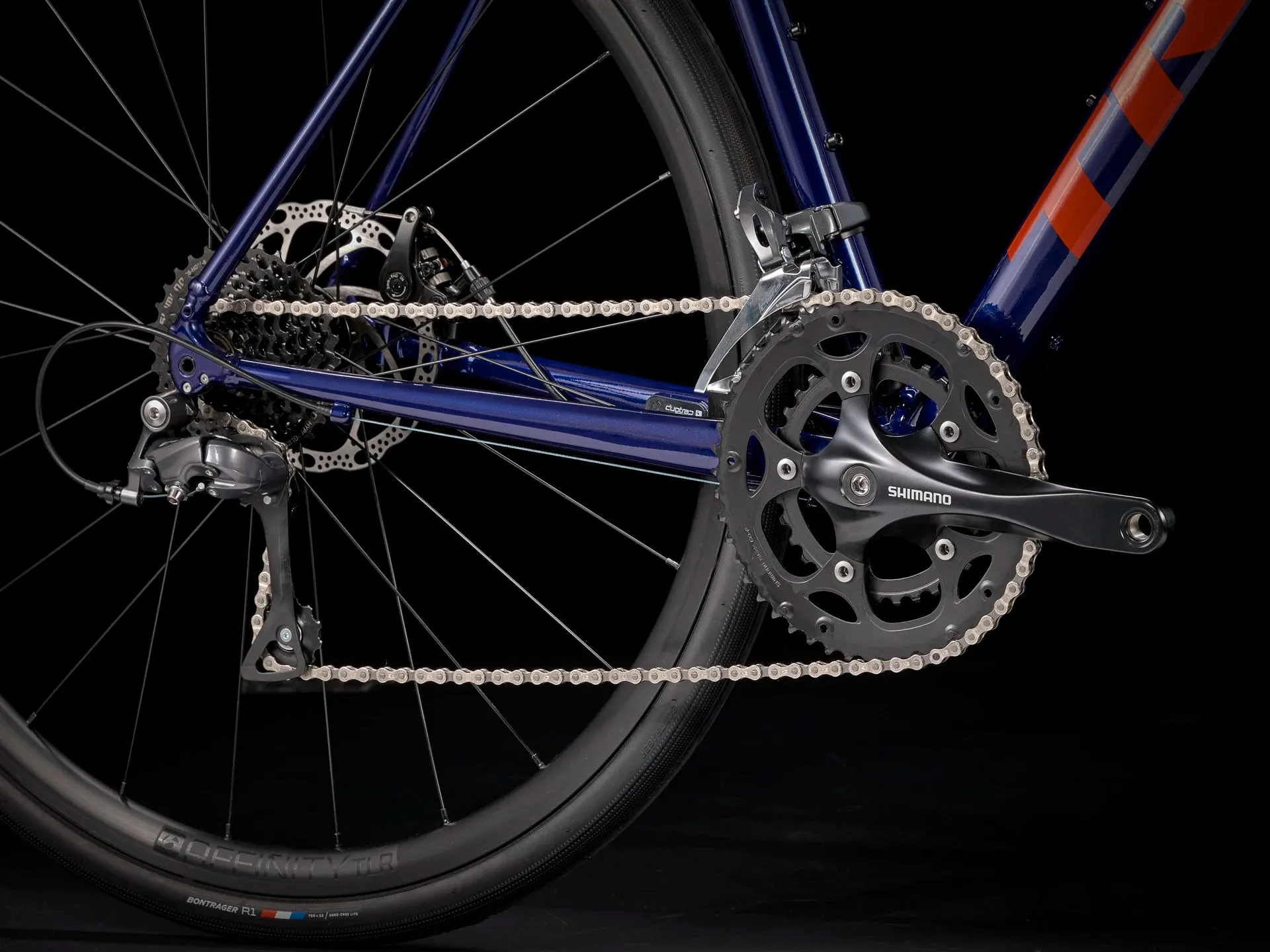

Drivetrain
| Shifter | Shimano Claris R2000, 8 speed |
|---|---|
| Front derailleur | Shimano Claris R2000, 31.8 mm clamp |
| Rear derailleur | Shimano Claris R2000, medium cage, 34T max cog |
| *Crank | Size: 44 Shimano RS200, 50/34 (compact), 165 mm length |
| Size: 49, 52, 54 Shimano RS200, 50/34 (compact), 170 mm length | |
| Size: 56, 58, 61 Shimano RS200, 50/34 (compact), 175 mm length | |
| Bottom bracket | Shimano UN300, 68mm, threaded cartridge, 110mm spindle |
| Cassette | Shimano HG31, 11-32, 8 speed |
| Chain | Shimano Sora HG71, 8 speed |
| Max chainring size | 1x: 42T, 2x: 50/34 |
Components
| *Saddle | Size: 44, 49, 52 |
|---|---|
| Size: 54, 56, 58, 61 Bontrager P3 Verse Comp, steel rails, 145 mm width | |
| *Seatpost | Size: 44, 49 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length |
| Size: 52, 54, 56, 58, 61 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length | |

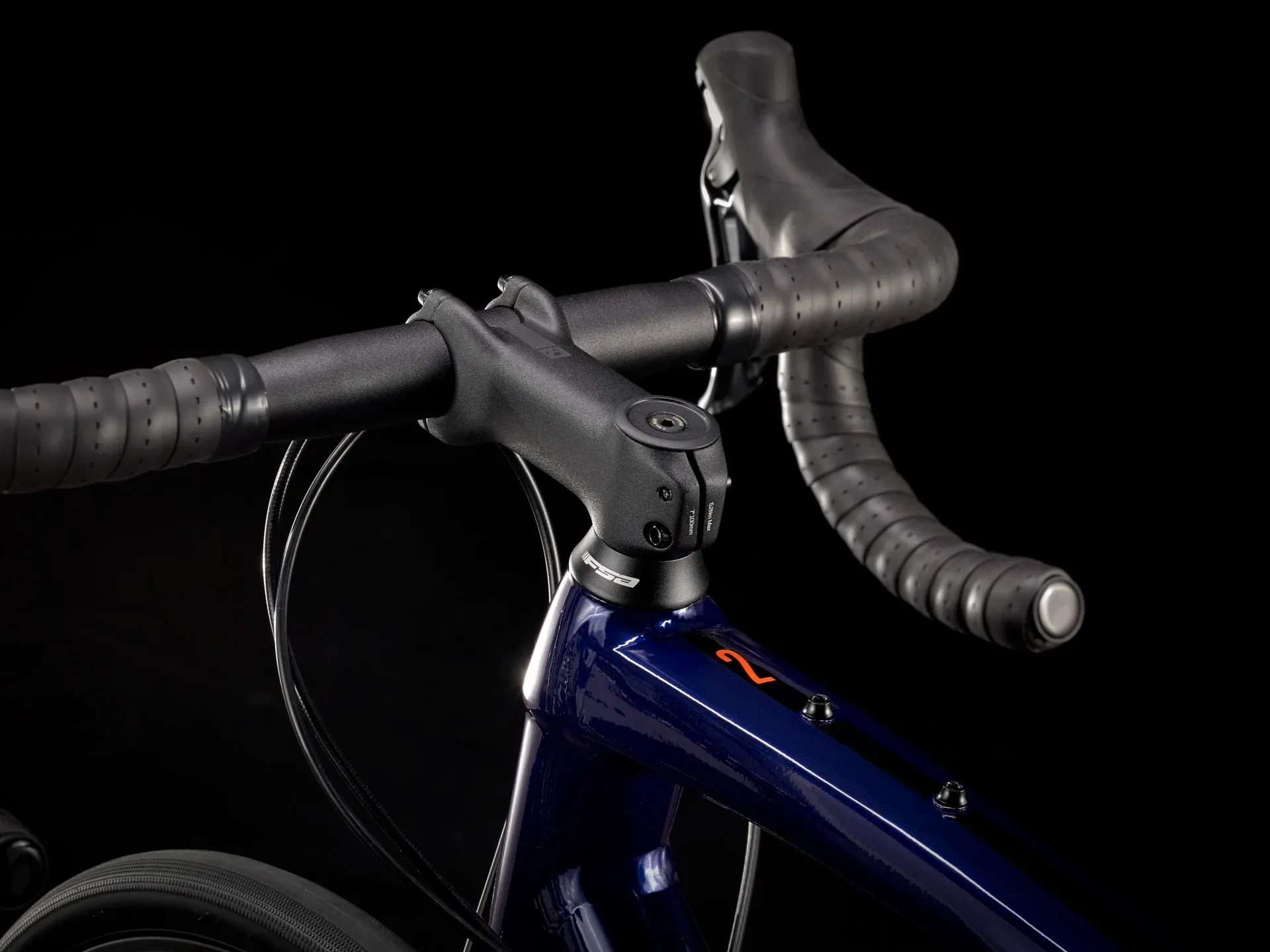

| *Handlebar | Size: 44, 49 |
| Size: 52 Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width | |
| Size: 54, 56 | |
| Size: 58, 61 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width | |
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 44 |
| Size: 49 | |
| Size: 52, 54 | |
| Size: 56, 58 | |
| Size: 61 | |
| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Brake | Tektro C550 mechanical disc brake, dual piston, flat mount, 160mm rotor |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
Weight
| Weight | 56 - 10.76 kg / 23.73 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
