The DIA-T15 delivers impressive 2000W Max Power with 1000W RMS at Dual 2 or 4 Ohm, once you hear it, you will finally realize what big, rich bass sounds like. This 15" Subwoofer puts out all of the power you need and handles low frequencies like a sub twice the price. Dual Voice Coil provides multiple options and flexibility to wire Parallel, Series, or Independent. DVC will make sure you get the most from your system. While typical subwoofers have a single voice coil, Black Diamond offers two. Settle for nothing but the best with Ferrite magnets that produce a wider range of tones and can handle tremendous power at high volumes. This ultra-reliable subwoofer has dual voice coils and an aluminum basket all at an affordable price. What more can you ask for?
SPECIFICATIONS : Nominal Diameter: 15" (381mm) Nominal Impedance: 2 Or 4 Ohm RMS Power Handling: 1000 Watts MAX Power Handling: 2000 Watts Sensitivity: (1w/1m) 85 dB Frequency Response: 15-200Hz Recommended Lo Pass Crossover: 80Hz
MOTOR SPECIFICATIONS: Voice Coil Diameter: 3" (76.5mm) Voice Coil Former Material: Aluminum Winding Material: Copper Cone Material: Non-Pressed Paper Dust Cap: PPI Surround Material: Foam Basket Material: Aluminum Basket Color: Finish Sandblasted Black Magnet Material: Ferrite Magnet Weight: 120 oz Displacement Volume: 3.39L / 0.12ft3
THIELE & SMALL SPECIFICATIONS: Equivalent Volume: Vas 64L / 2.26ft3 Excursion: Xmax 24mm Free Air Resonance: 30 Hz Mechanical Factor: Qms 3.741 Electrical Factor: Qes 0.715 Total Factor: Qts 0.6 Moving Mass: Mms 371g Compliance: Cms 65µ M/N Bl Factor: BL 12 Voice Coil Inductance: Le 0.51 mH Diaphragm Area: Sd 834.69 cm2 Dc Resistance: Re 1.8 1.8 ohm Efficiency Bandwith: Product EBP 41.9

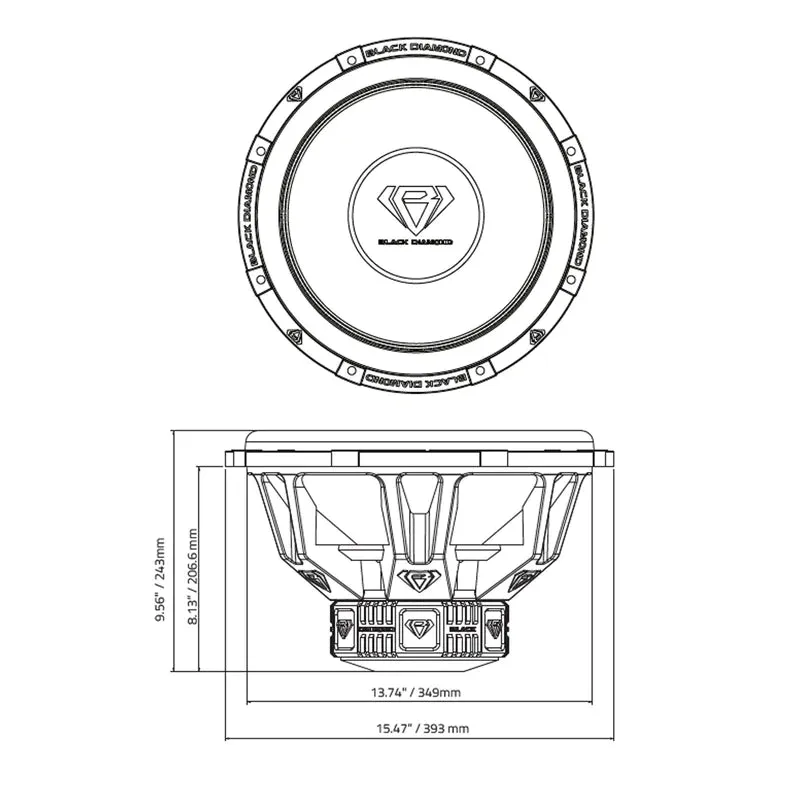

MEASUREMENTS: Overall Diameter :Total 15.47" (393mm) Overall Depth: Total 9.56" (243mm) Front Mount Baffle Cutout: 13.74" (349mm) Mounting Depth: / 8.13" (206.6mm) Motor Diameter: / 7.08" (180mm)
