WHAT YOU GET

Frame
Fork
Headset
Seatpost
Thru-Axles
Quick-Fit Spacers

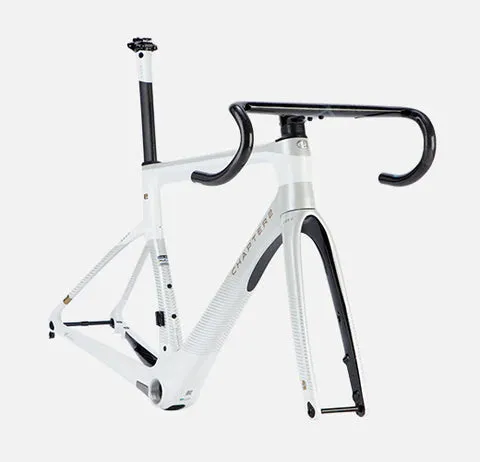

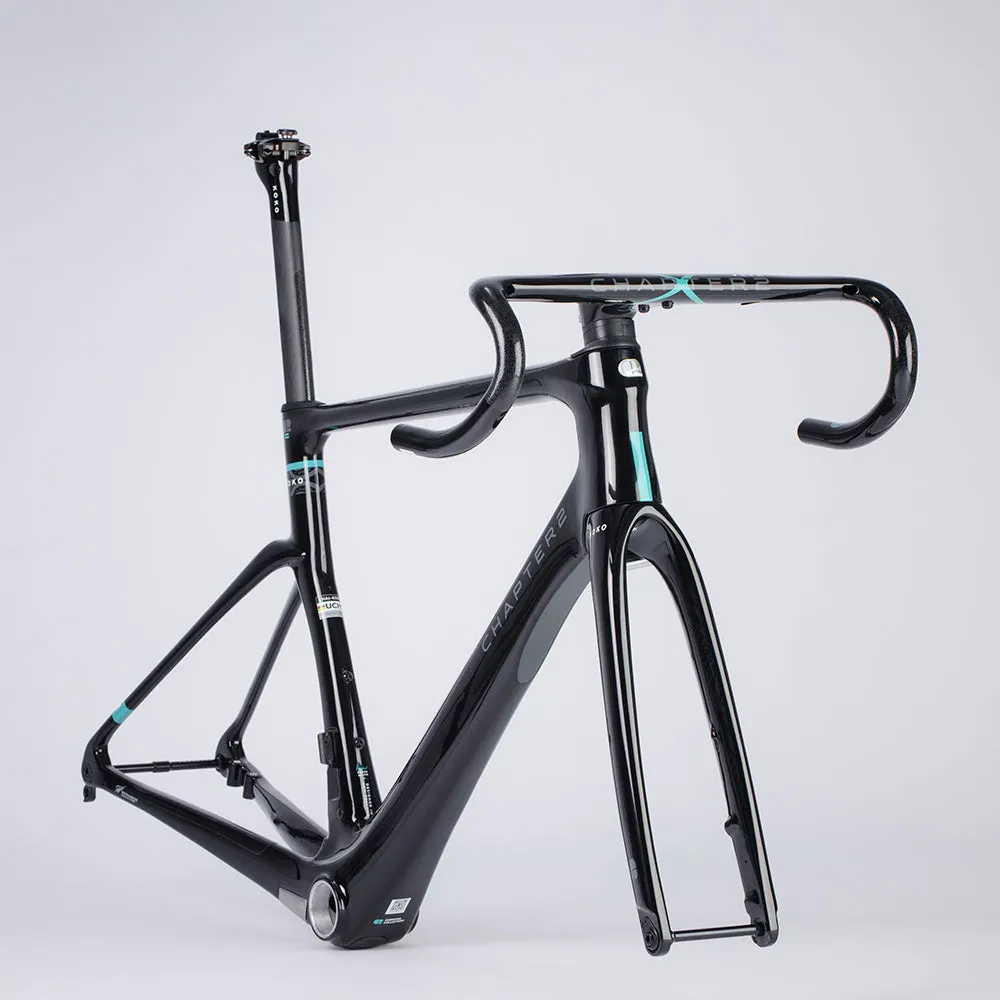

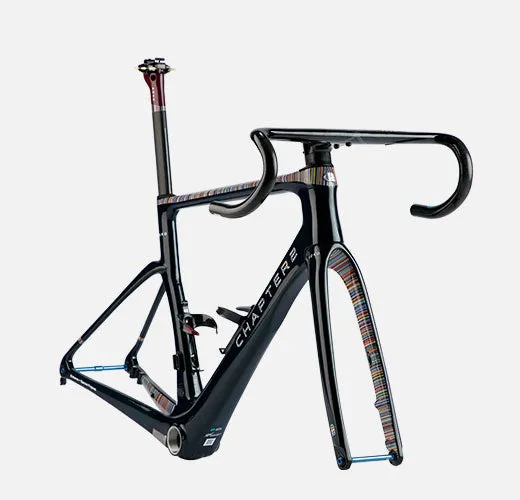

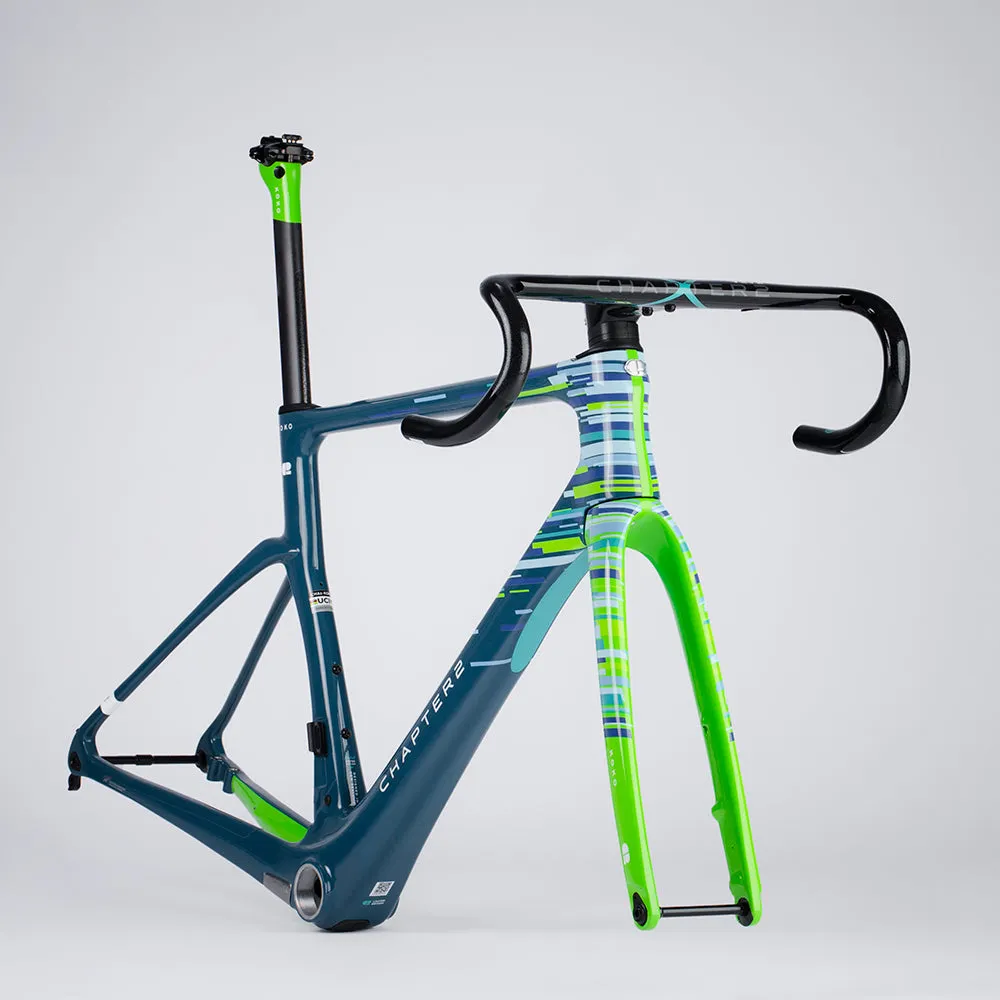

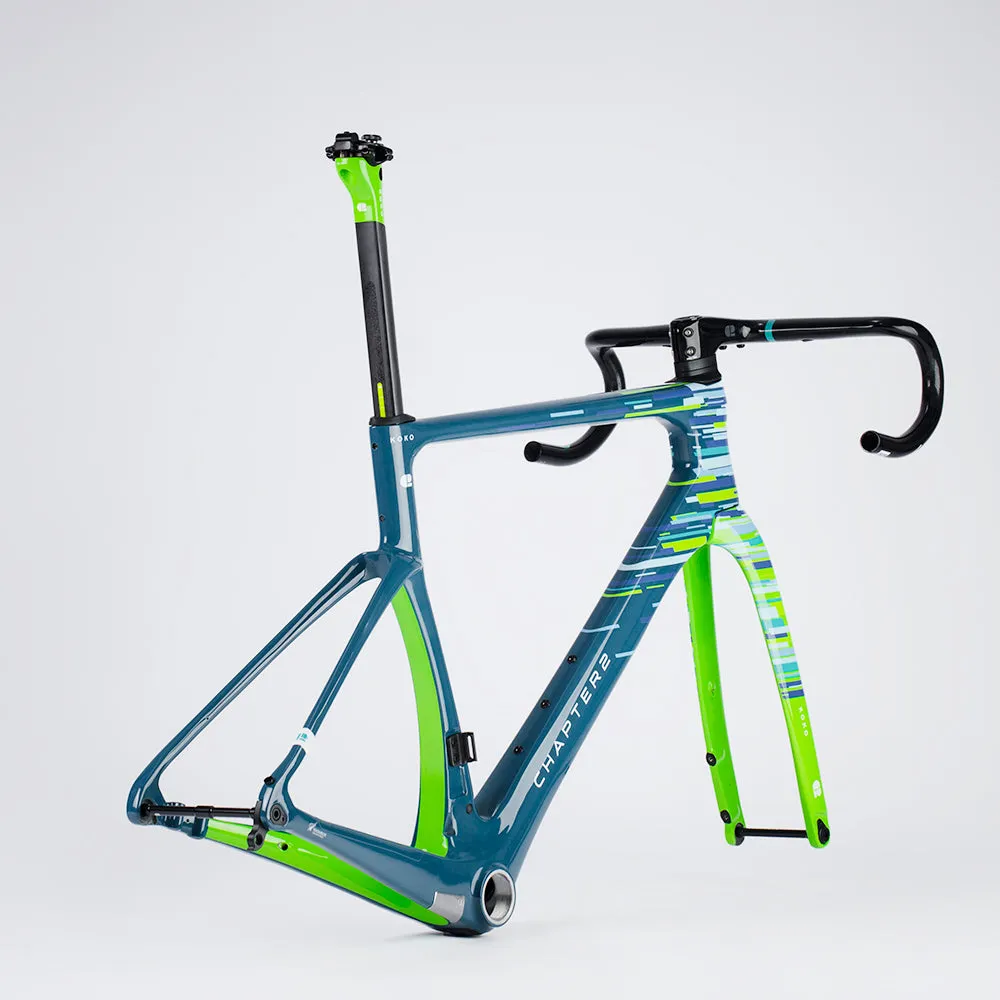

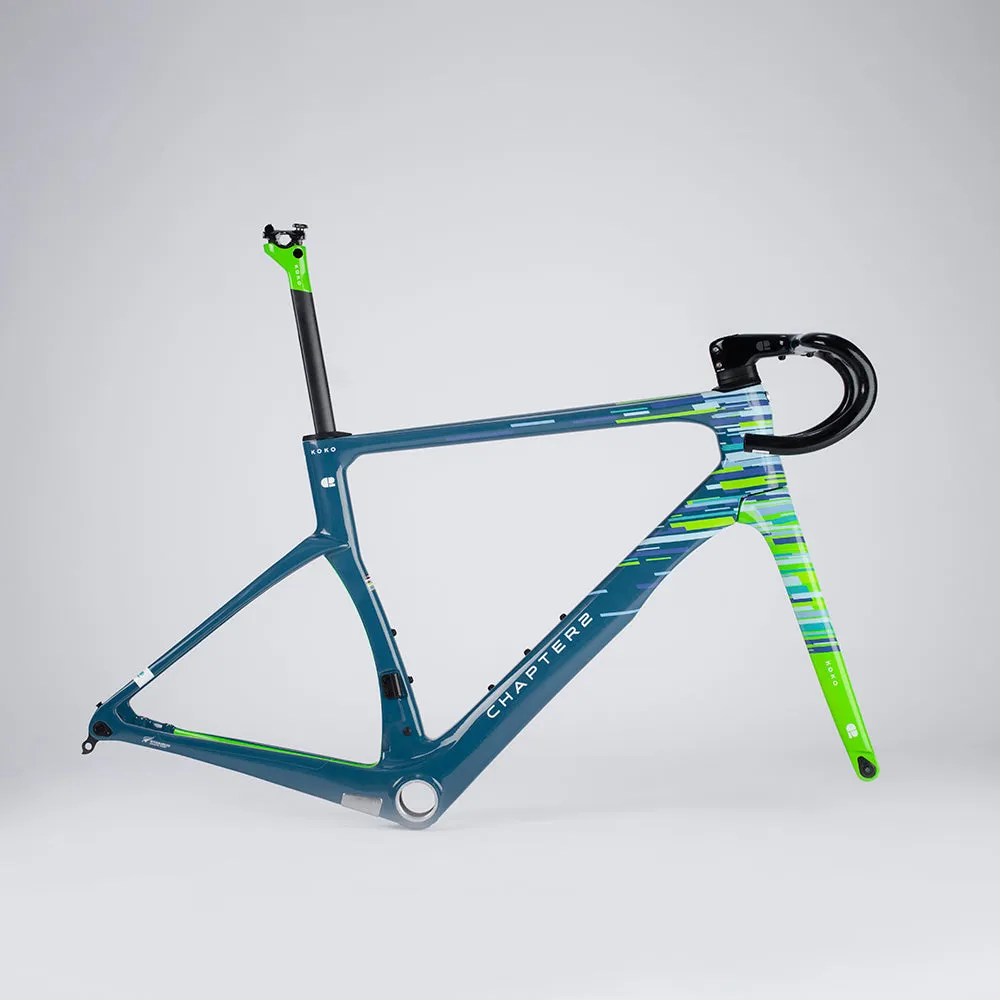

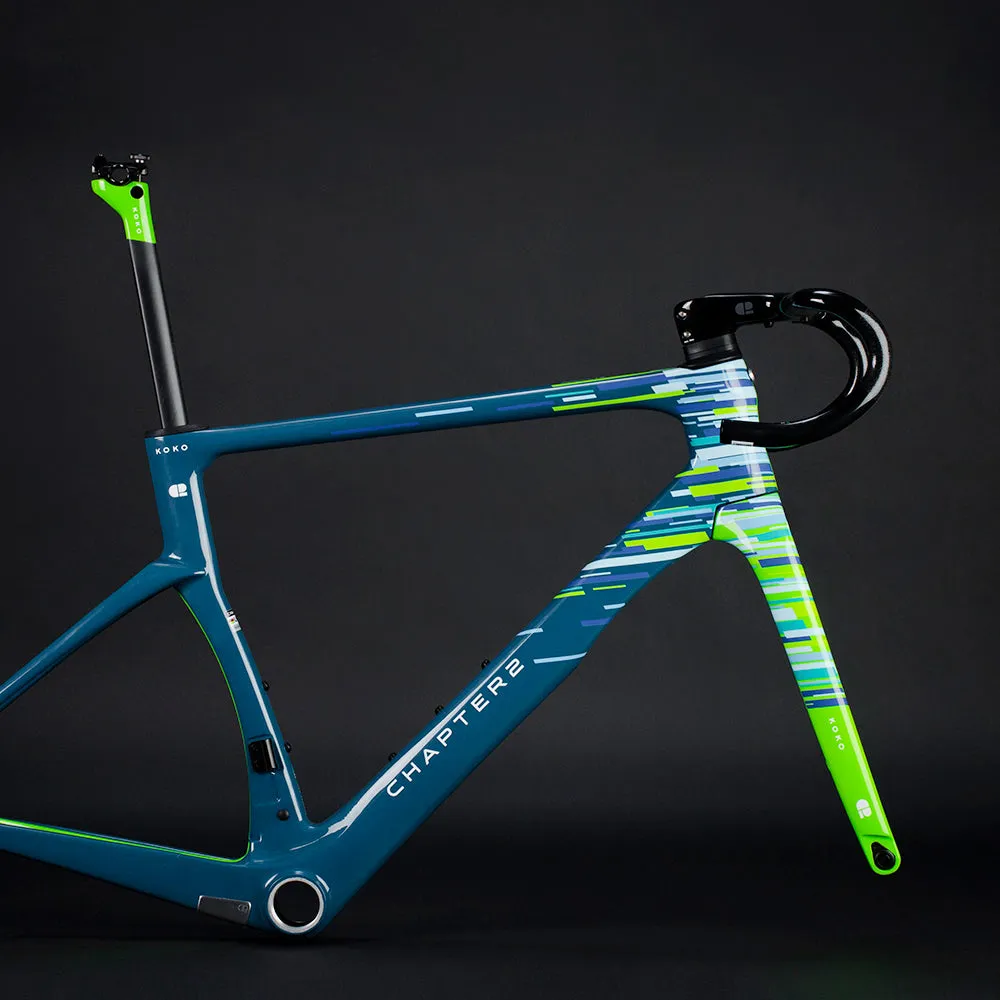

ABOUT THE FRAME

Air resistance is the single most critical factor that separates a fast bike from a bike that cuts through the air like a bird. KOKO means “to soar, fly” in Māori and as the name suggests, our top-tier Aero Road model will have you smiling from ear to ear from the sheer thrill of unadulterated speed.

Taking the RERE’s Aero credentials to the next level, the KOKO now has Kamm-Tail profiles incorporated into the downtube, increasing the overall stiffness of the bottom bracket and headtube by 13.35% and 35.64% respectively. Married to our aerodynamically optimised and ergonomic MANA bar, the combination makes for a super sleek, high-performance racing machine.

MODEL BENEFITS

Aero Racing Frame: Aerodynamic Performance
Cable Integration: Improved Aerodynamics and Clean Aesthetic
Adjustable Compliance: Tuneable Seatpost Flex for Added Compliance
Rear Wheel Cut-out: Improved Aerodynamics
Kamm-Tail: Aerodynamic and Stiffness where needed
Up to 32mm Tire Clearance: Increased Tire Options
T47 BB: Noise-free and Easy to Service
Latex Mandrels: Improved Stiffness to Weight in Front Triangle
Frameset Only: Bespoke & Personal

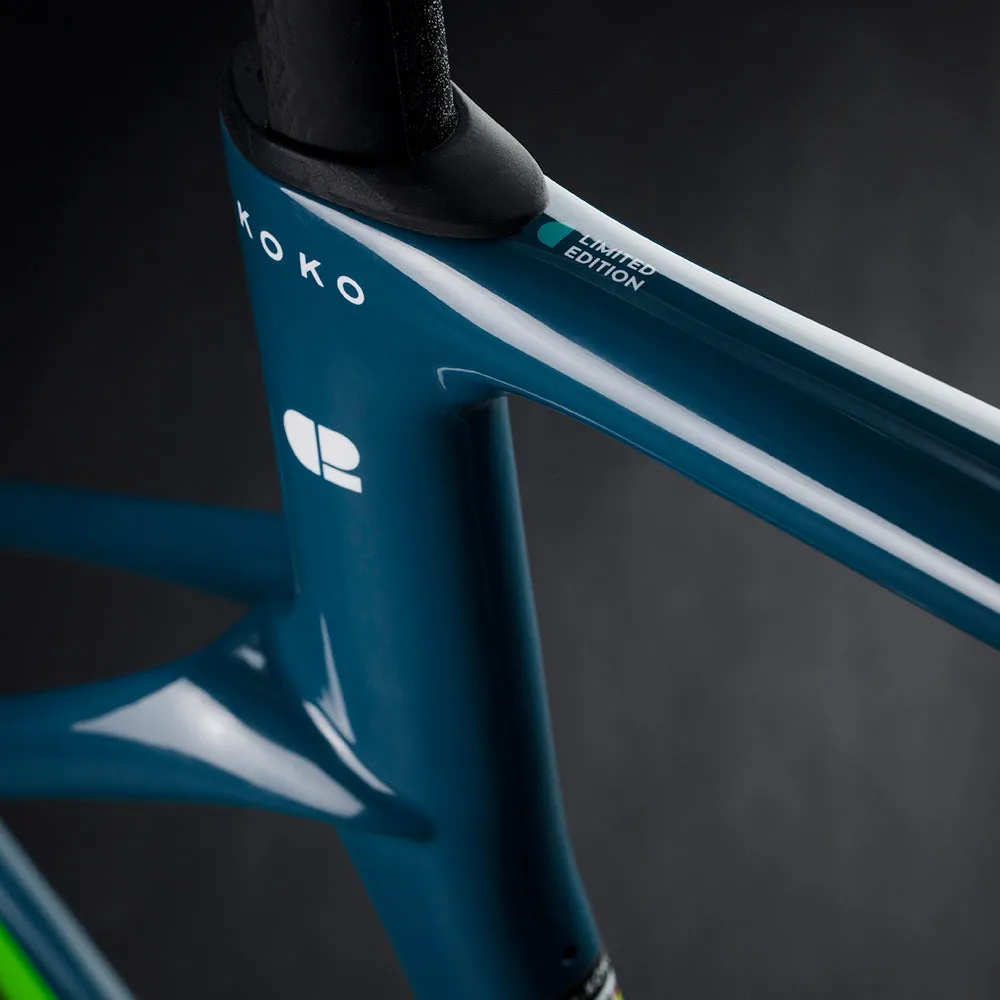

Limited Edition: Exclusivity

  →

  →

FRAME SPECS

Carbon: 100% Made in Japan by Toray
Frame 6 Sizes: XXS, XS, S, M, L & XL
Fork Rakes (2): XXS, XS, S (53mm offset) and M, L, XL (43mm offset)
Frame Weight: 1,139g Size M /- 3%
Fork Weight: 420g Uncut /- 3%
Seatpost Weight: 135g Size M /- 3%
Handlebar/Stem (MANA): 395g (100-420mm) /- 3% (Sold Separately)
Headset: 1.5” C2 Integrated System
Mechanical & Electric Shifting: Versatile Groupset Options
Electronic Shifting: SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
Battery Type: Di2 SM-BTR-2 and EPS V3 Battery Compatible
Tire Clearance: 32mm
Brake Type: Disc Only
Bottom Bracket: Internal T47 (86.5)
Safety Standard: EN ISO 4210:2014
UCI Accreditation: UCI Approved

TORQUE SPECS

Saddle Rail: 6Nm
Seatclamp: 8-10Nm
Stem (Steerer): 6Nm
Stem (Handlebar): 6Nm
Front Derailleur Hanger: 3Nm
Rear Derailleur Hanger: 2Nm
BB Cable Guide Cover: 1Nm
Thru-Axle: 10Nm
Water Bottle Cage Bolts: 3Nm

EXCLUSIVE BRAND,

WITH A BOUTIQUE BIKE SPIRIT.

CHAPTER2 is an exclusive brand with a boutique spirit, crafting framesets for discerning individuals who believe the process of creating a personal statement is as important as building their dream bike.

At the heart of CHAPTER2, we find the extraordinary and diverse nature of New Zealand sculpted in each frame design. This earth is inhabited by 1,000 years of Māori heritage known for its legendary warrior spirit, which is our soul, our inspiration, our why. CHAPTER2 bikes use Japanese-made Toray® carbon fibre exclusively and have all been fully tested at Auckland University’s Wind Tunnel, the same facility where Emirates Team NZ (America’s Cup) does their testing.

RIDE YOUR NEXT CHAPTER.
