REVO winches are designed to be strong, versatile, and ready for anything. Consistently developing and improving our products, Bushranger is built with long-term reliability in mind. With a new and improved powder coating; rigorously tested in Australian facilities and real-world conditions. REVO is ready to be pushed to the extreme.

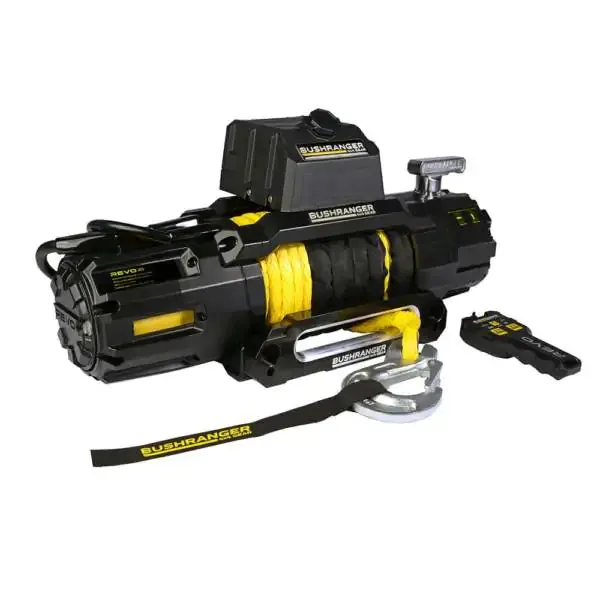

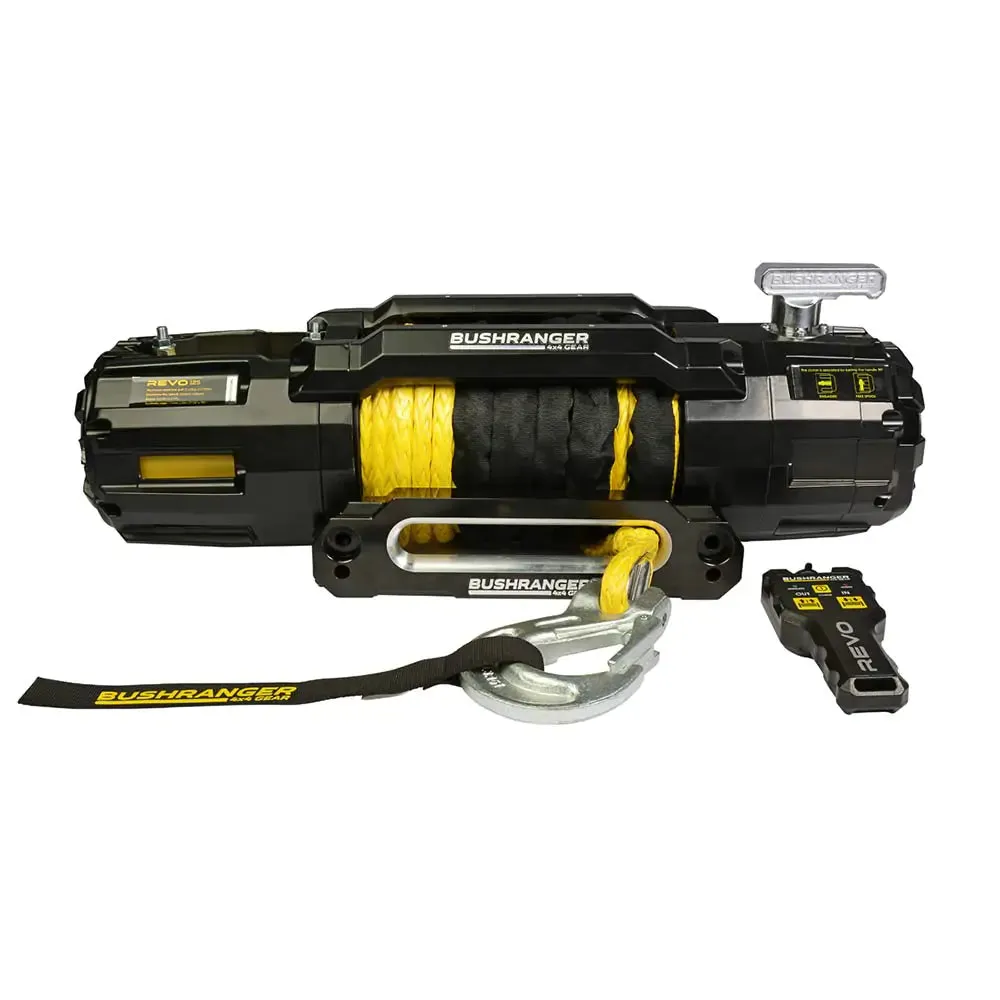

Designed to tackle any challenge, the REVO 12S is packed with tough and reliable features.

• • 10mm premium synthetic rope paired with a ½” removable clevis hook.
  • 4 Stage oversized, externally adjustable gearbox designed for maximum strength and versatility. With 16 lockable positions making for ease of fitment.
  • Gearbox mounted braking system 100% load holding, proportional friction braking system located inside the gearbox, away from the drum – eliminating heat transfer to rope.
  • In-line hawse fairlead made from lightweight aircraft-grade aluminium. Engineered with an innovative two-position design allowing for greater flexibility when installing.
  • Series wound, 12V, 6.2HP motor made with high-grade materials. Resulting in low current draw and longer life at extreme loads.
  • Spring loaded clutch making for an easy to use no-lift style clutch mechanism

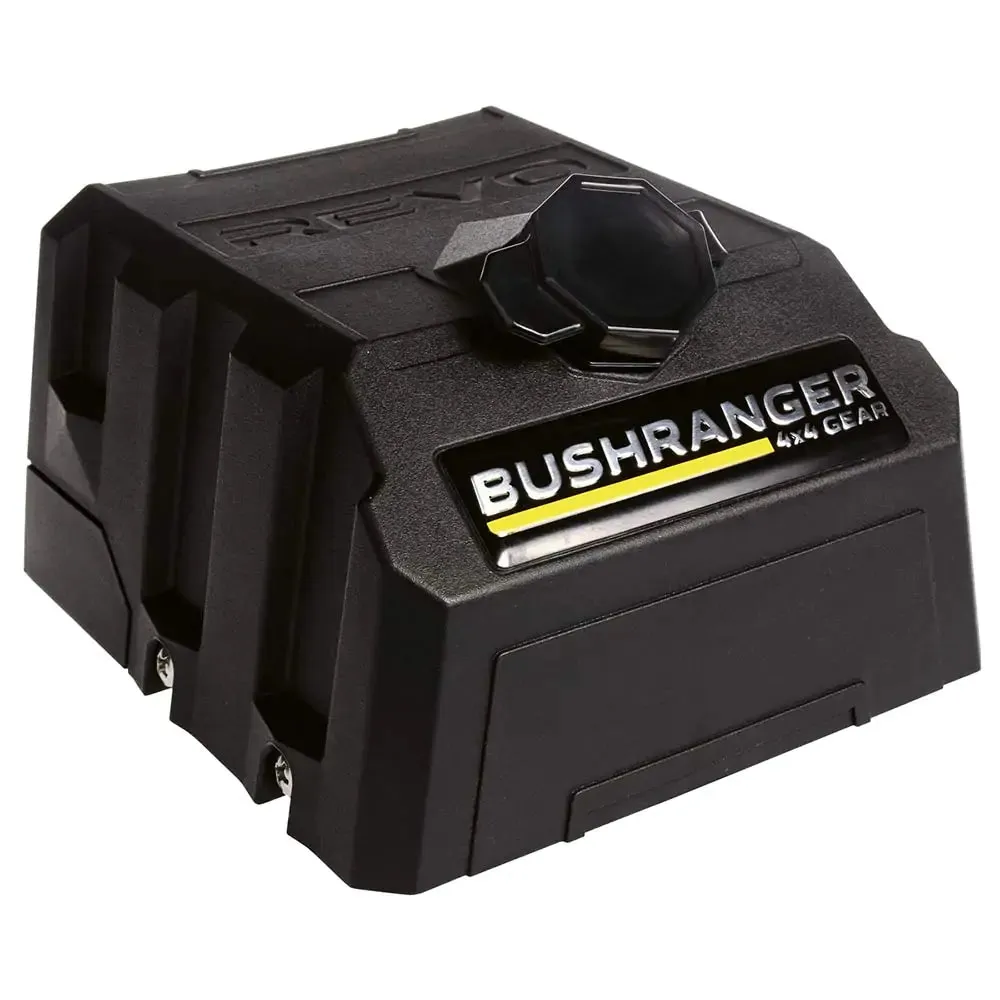

  • Versatile Control Box with multiple mounting orientations to suit every setup. Supplied with an additional mounting bracket for hassle-free installation
  • Wireless hand controller fully sealed, IP67 rated, with a 433MHz receiver mounted internally in the control box.
  • Zero drag braking system allows for the winch to be powered out under no load without the heat build-up, making unspooling a breeze

Specification

• Dimensions: 602mm (L) x 165mm (W) x 216mm (H) (excludes control box)
• Rated Line Pull (single): 12,000lbs (5,443kg)
• Motor: Series wound, 12V, 6.2HP (4.6kw)
• Remote Control: Two functions, hand controller (Wireless, 30m range) (Wired, 5m lead)
• Electrical: Contactor IP67 500A
• Gear Train: 4 stage gear driven
• Gear Ratio: 171:1
• Clutch (free spooling): Rotating Ring Gear
• Brake: Gearbox Mounted, Proportional Friction Brake System
• Drum Diameter/Length: 63.5mm x 244mm
• Mounting: Bolt Pattern 254mm x 114mm
• Rope: 11mm x 24m Synthetic Rope
• Fairlead: Two position Aluminium Hawse Fairlead
• Recommend Battery: 650CCA minimum
• Battery Leads: 1850mm
• Finish: Black Powder Coat
• Mechanical Warranty: Limited Lifetime
• Electrical Warranty: 7 years
• Waterproof Rating: IP67
• Certification: CE, IP67
• Winch Weight: 35kg
