REVO winches are designed to be strong, versatile, and ready for anything. Consistently developing and improving our products, is built with long-term reliability in mind. With a new and improved powder coating; rigorously tested in Australian facilities and real-world conditions. REVO is ready to be pushed to the extreme.

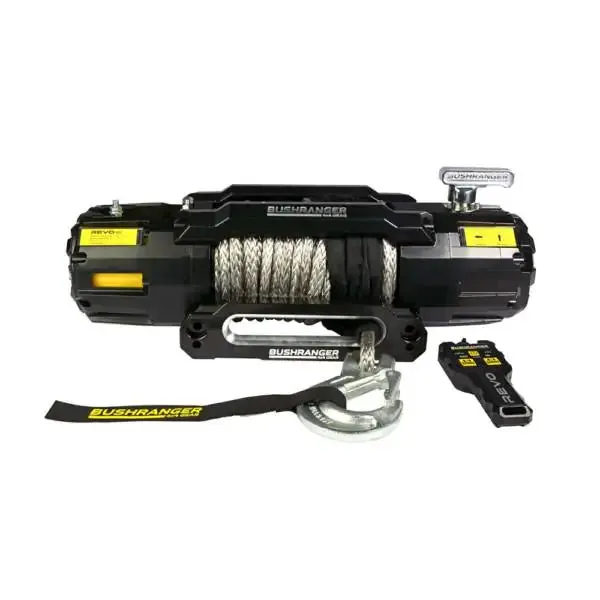

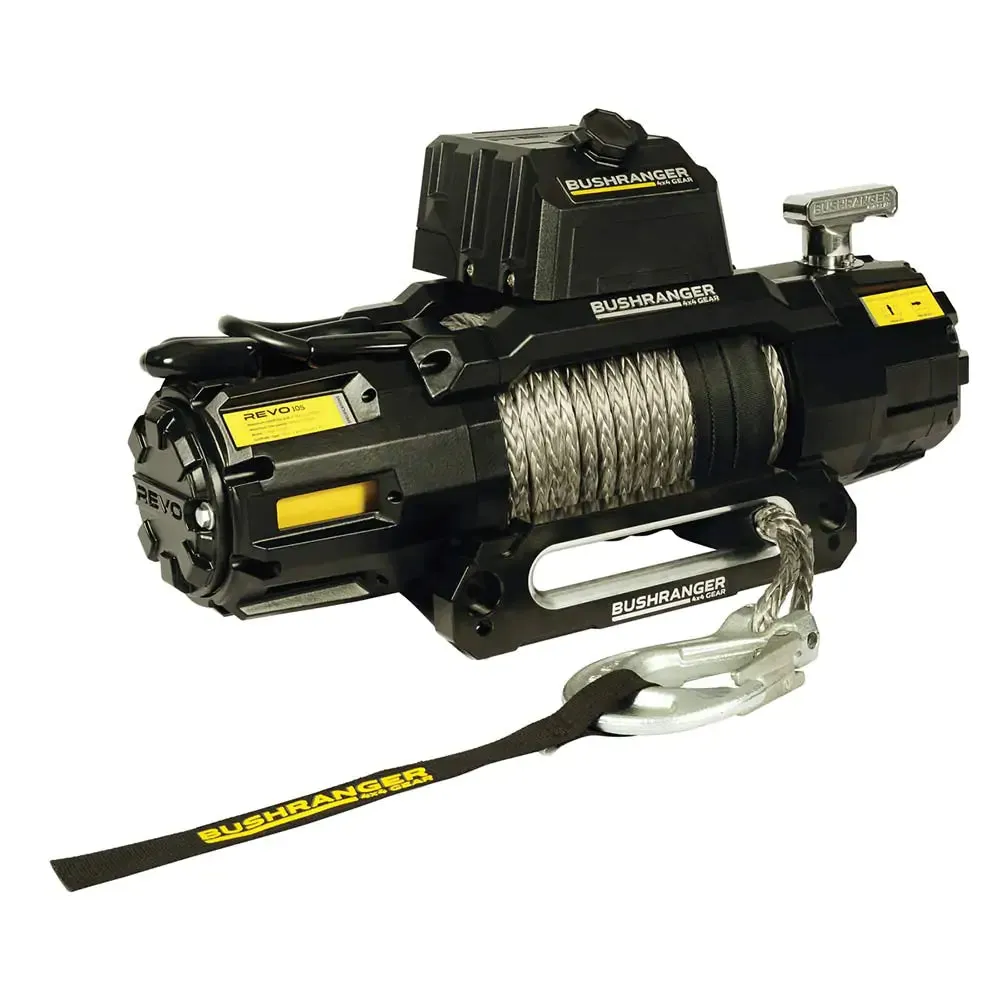

Designed to , the REVO 10S Bushranger Winch is packed with tough and reliable features.
- 10mm premium synthetic rope paired with a ½” removable clevis hook.
- 4 Stage oversized, externally adjustable gearbox designed for maximum strength and versatility and with 16 lockable positions making for ease of fitment.
- Gearbox mounted braking system 100% load holding, proportional friction braking system located inside the gearbox, away from the drum – eliminating heat transfer to rope.
- In-line hawse fairlead made from lightweight aircraft-grade aluminium and engineered with an innovative two-position design allowing for greater flexibility when installing.
- Series wound, 12V, 5.2HP motor made with high-grade materials, resulting in low current draw and longer life at extreme loads.
- Spring loaded clutch making for an easy to use no-lift style clutch mechanism
- Versatile Control Box with multiple mounting orientations to suit every setup. Supplied with an additional mounting bracket for hassle-free installation
- Wireless hand controller fully sealed, IP67 rated, with a 433MHz receiver mounted internally in the control box.
- Zero drag braking system allows for the Bushranger winch to be powered out under no load without the heat build-up, making unspooling a breeze
Specification
- Dimensions: 583mm (L) x 165mm (W) x 216mm (H) (excludes control box)
- Rated Line Pull (single): 10,000lbs (4,536kg)
- Motor: Series wound, 12V, 5.2HP (3.9kw)
- Remote Control: Two functions, hand controller (Wireless, 30m range) (Wired, 5m lead)
- Electrical: Contactor IP67 500A
- Gear Train: 4 stage gear driven
- Gear Ratio: 171:1
- Clutch (free spooling): Rotating Ring Gear
- Brake: Gearbox Mounted, Proportional Friction Brake System
- Drum Diameter/Length: 63.5mm x 244mm
- Mounting: Bolt Pattern 254mm x 114mm
- Rope: 10mm x 28m Synthetic Rope
- Fairlead: Two position Aluminium Hawse Fairlead
- Recommend Battery: 650CCA minimum
- Battery Leads: 1850mm
- Finish: Black Powder Coat
- Mechanical Warranty: Limited Lifetime
- Electrical Warranty: 7 years
- Waterproof Rating: IP67
- Certification: CE, IP67
- Winch Weight: 33kg
- Packaged Weight: 37kg
