Alloy
Frame
27.5" Black Double
Wall Alloy Rims
BMX Style
Handlebars
170mm Steel
3-piece crank
Alloy Frame
The Biggie is built to last, made with a strong and lightweight alloy frame.
BMX Style Handlebars
Get the cool BMX style with the Biggie, including big BMX handlebars.
Front Load Stem
Greater strength through the stem with the classic BMX front load stem.

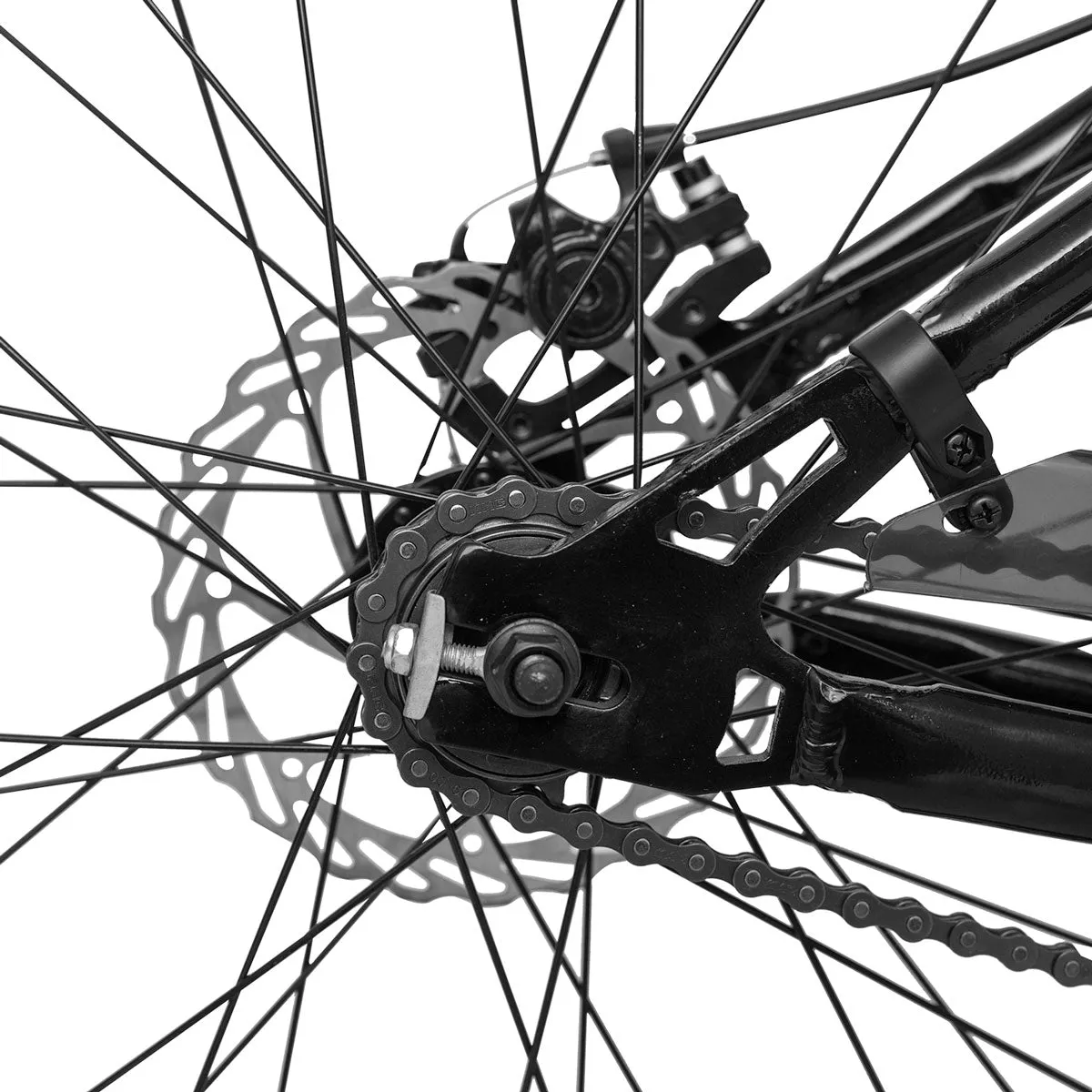

Reliable Stopping Power
Come to a comfortable safe stop with reliable front and rear Alloy Disc Brakes.
The Blueprints
An awesome package with the following components:
- A. Adjustable Seat-Post
- B. Alloy Black Disc Brake
- C. Alloy Black Mechanical Disc Brake
- D. 9/16" Plastic Black
- E. Alloy Frame
- F. BMX Style Handlebars
- G. Alloy Black Mechanical Disc Brake
- H. 27.5"x2.3"
Where to ride?
Specification
Technical Specifications
| Frame | 27.5" Alloy Frame |
|---|---|
| Fork | 27.5"x183mm Threadless Steel |
| Headset | Threadless, A-head(1-1/8”),H:23mm |
| Bottom Bracket | GS-B909, STEEL |
| Chainguard | Included |
| Saddle | Black BMX Saddle |
| Seat Post | Alloy Black 25.4x350mm |
| Seat Post Clamp | Alloy Black,∮31.8mm |
| Front Hub | 14Gx36H Alloy Black Disc Brake |
| Rear Hub | 14Gx36H 170mmx Alloy Black Disc Brake |
| Rim | 27.5"x1.75x36Hx14G Black Double Wall Alloy H:29.5mm |
| Spoke | Steel 14G |
| Tyres | 27.5"x2.3" |
|---|---|
| Freewheel | 1/2"x1/8"16T |
| Chainwheel | 1/2"x1/8"x36T Steel Black |
| Crank | 170mm Steel Black |
| Chain | S1x96L |
| Handlebar | W:680mm,H:190mm,Steel Black |
| Stem | 45mm ∮28.6mm*∮22.2mm Alloy Black |
| Grip | 130mm,Rubber Black |
| Front Brake | Alloy Black Mechanical Disc Brake - 160mm |
| Rear Brake | Alloy Black Mechanical Disc Brake - 160mm |
| Pedal | 9/16" Plastic Black |
| Kickstand | No |
Bike Sizing Guide
| Frame Size Number | 16" |
| Wheel Size | 27.5" |
| Suggested Height | 170-190cm |
| Minimum Suggested Inseam | 77cm |
| A - Seat Tube | 40cm |
| B - Seat Tube Angle | 73deg |
| C - Head Tube Length | 12cm |
| D - Effective Top Tube | 59.3cm |
| E - Chainstay length | 44cm |
| F - Wheelbase | 107cm |
| G - Standover | 72cm |
