Aluminium Mechanical Test Plug 90 mm

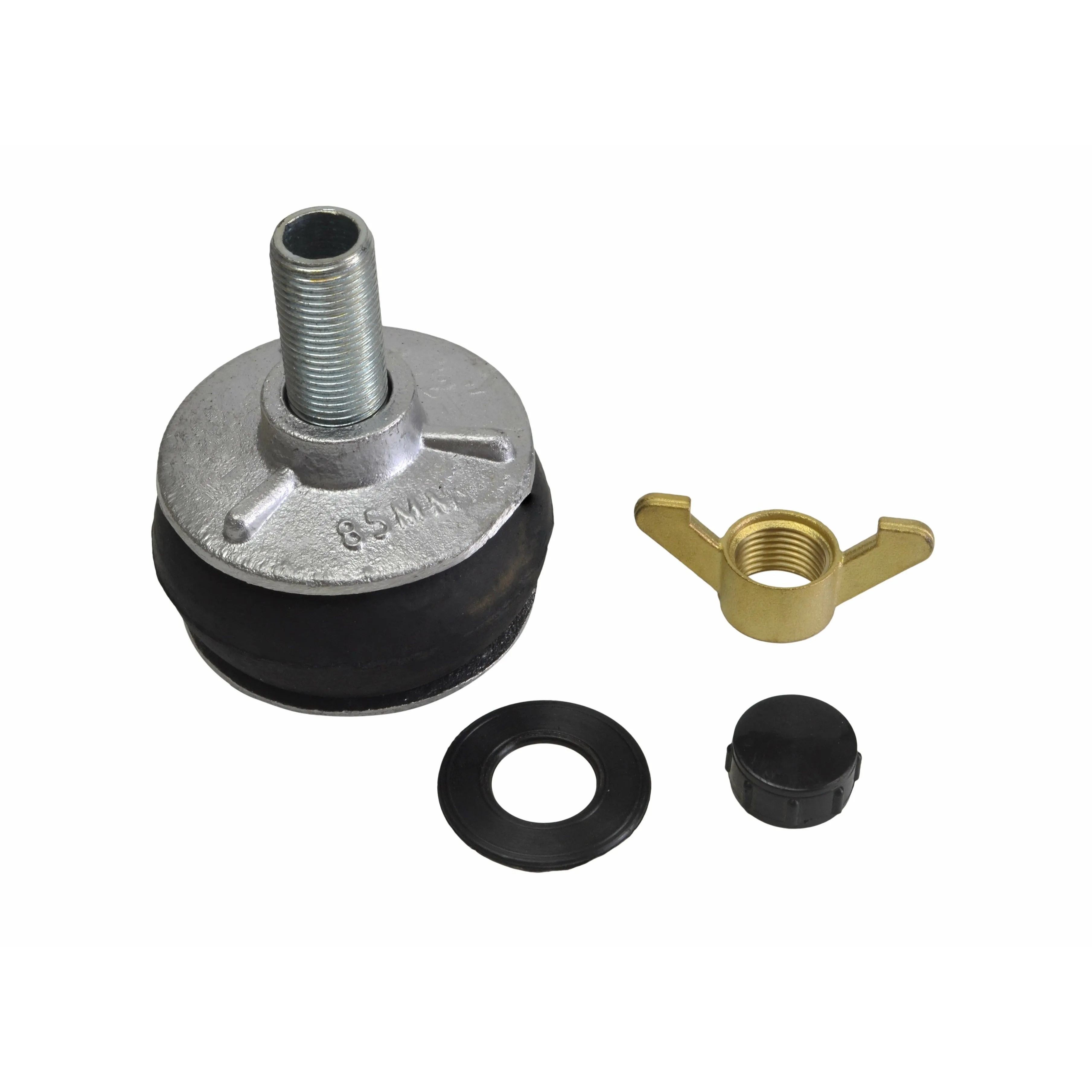

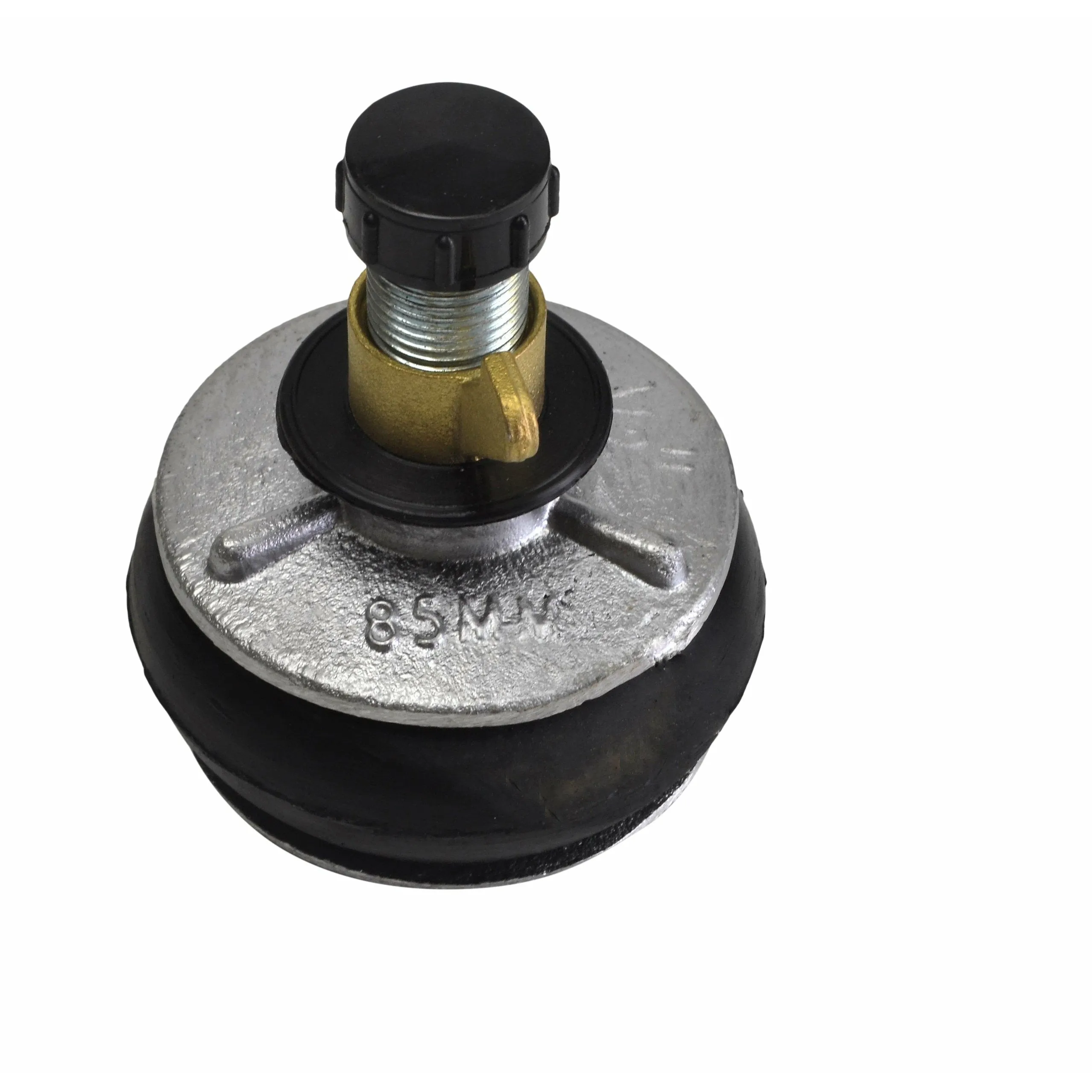

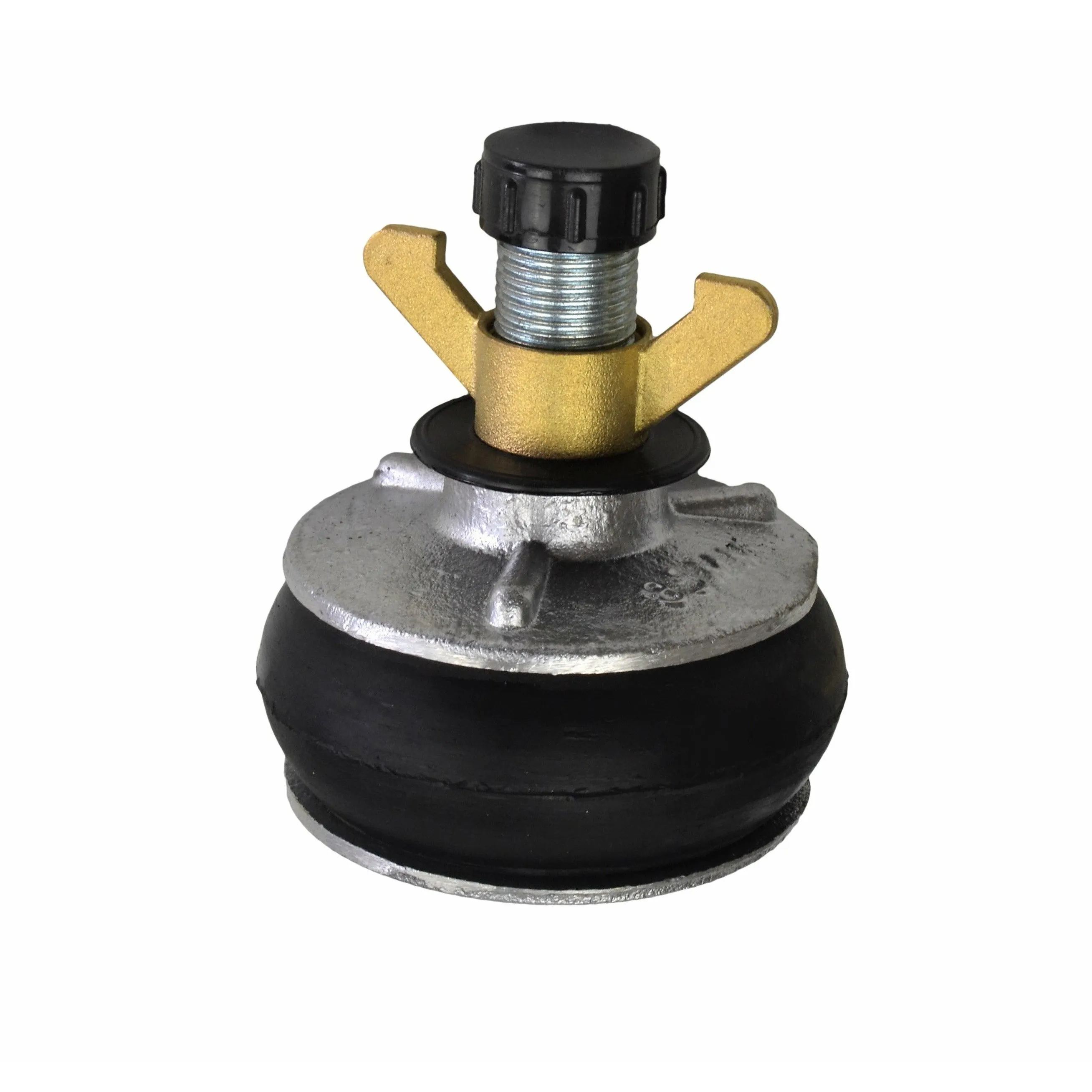

This Aluminium Alloy Drain Test Plug expands to suit a variety of pipe dimensions within its range, offering effective sealing for leak testing, isolation, sealing, stopping, and weld purging. Sizes range from 1.5" to 36" (38 to 900 mm), making it ideal for a wide range of applications. Simply insert the plug into the pipe and tighten the brass wing nut to expand the rubber ring, creating a secure seal. The cap at the end can be unscrewed to relieve back pressure buildup behind the plug.

Key Features:

• Part Number: MPA 090-13
• Start Range: 84 mm
• End Range: 103 mm
• Purge Port: 13 mm
• Max Back Pressure: 69 kPa – 10 psi
• Effective Sealing: Easy to insert and tighten using the wing nut and friction-free washers
• Material: Aluminium alloy with rubber ring for a positive seal

The Aluminium Mechanical Test Plug offers a simple, reliable solution for sealing pipes, pipe joints, and assemblies. It is ideal for leak testing and sealing water lines, ensuring leak-tightness and dependable performance in industrial applications.
