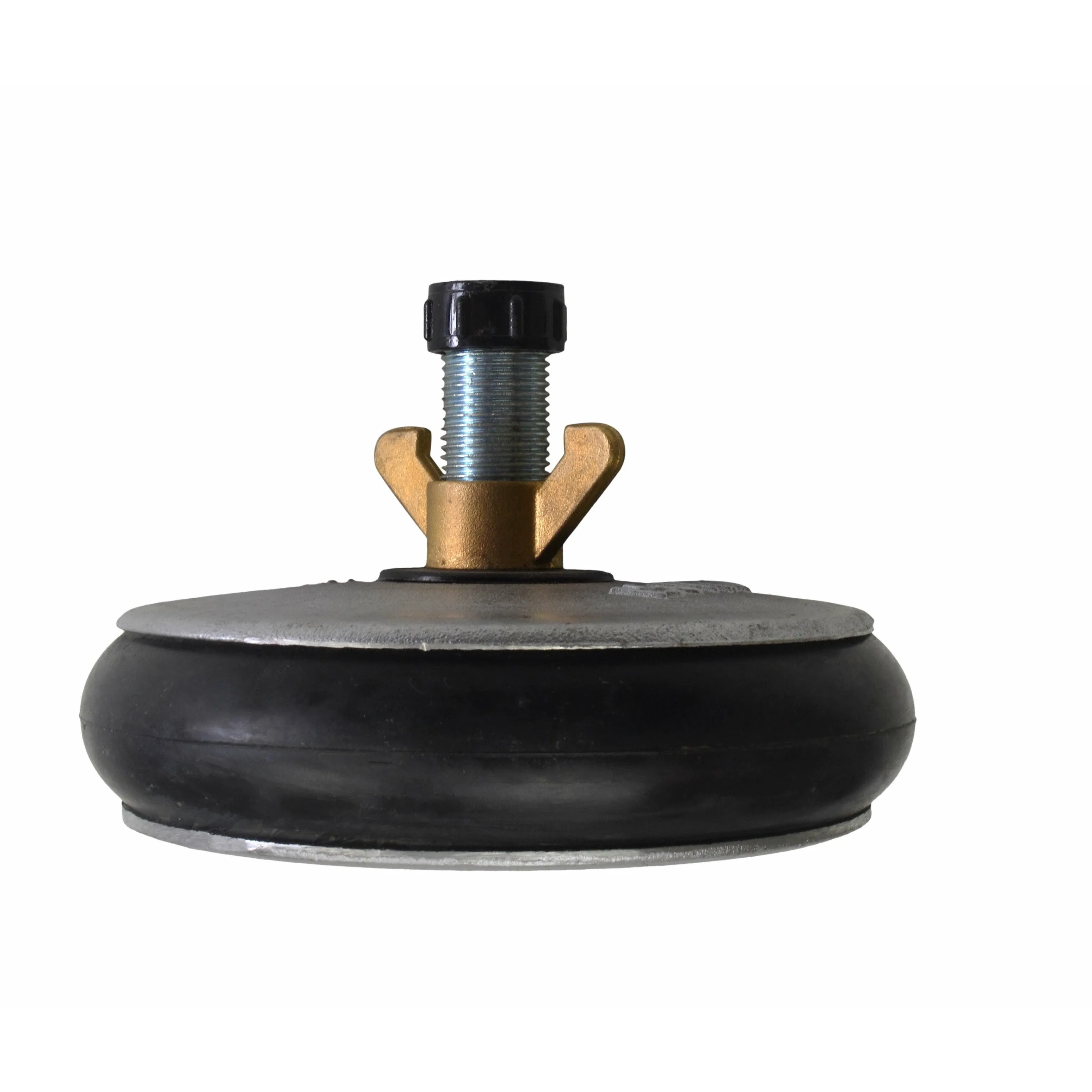

Aluminium Mechanical Test Plug 150 mm

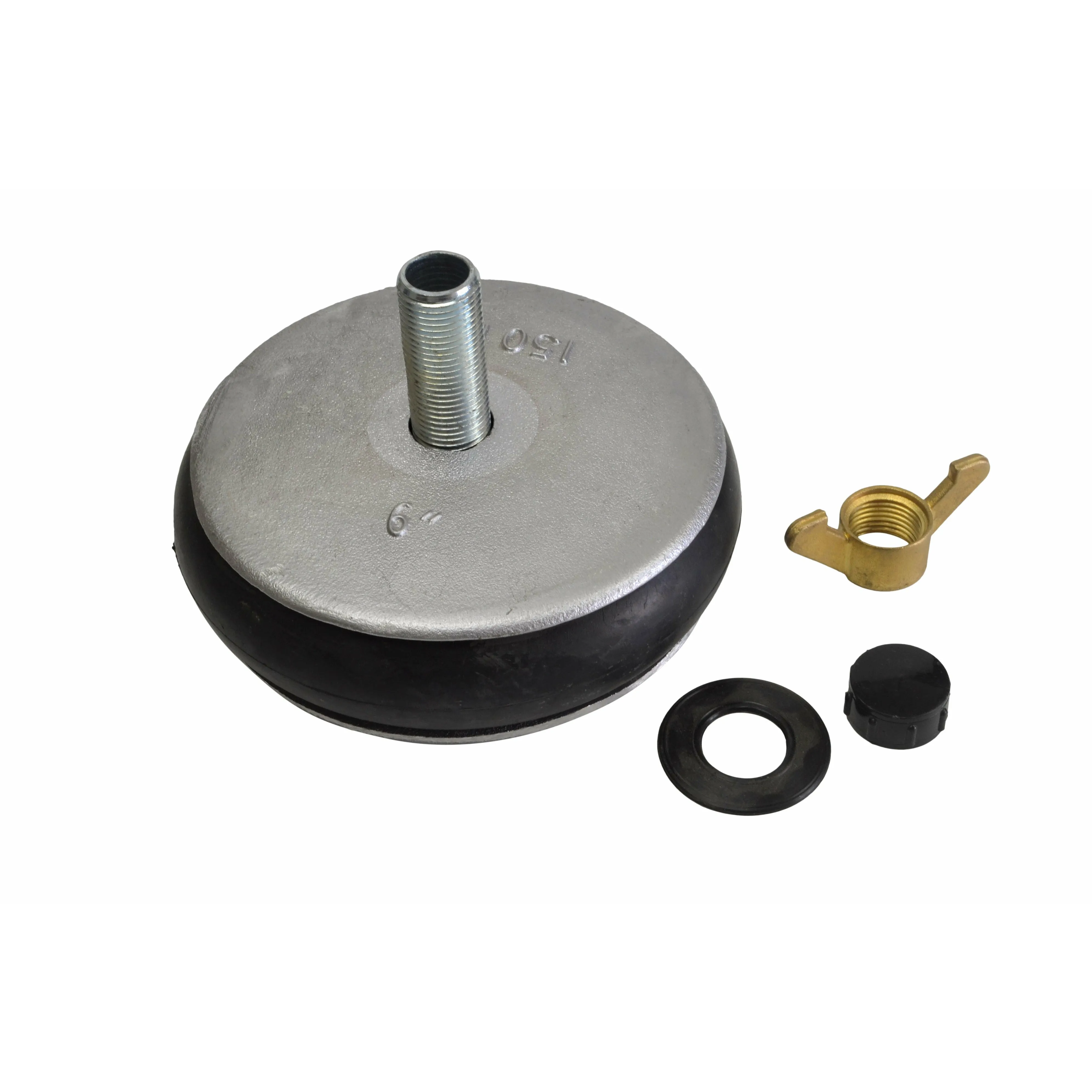

This Aluminium Alloy Drain Test Plug expands to fit a variety of pipe dimensions within its range, offering effective sealing for leak testing, isolation, sealing, and weld purging. Lightweight and versatile, the plug is ideal for applications ranging from 1.5" to 36" (38 to 900 mm). Manufactured with high standards, it is designed for easy installation using a brass wing nut to tighten the rubber ring, providing a secure seal. The cap at the end can be unscrewed to relieve back pressure buildup.

Key Features:

• Part Number: MPA 150-13
• Start Range: 147 mm
• End Range: 170 mm
• Purge Port: 13 mm
• Max Back Pressure: 69 kPa – 10 psi
• Effective Sealing: Easy to insert and tighten using the wing nut and friction-free washers
• Material: Aluminium alloy with rubber ring for a positive seal

The Aluminium Mechanical Test Plug provides a simple and reliable solution for sealing pipes, pipe joints, and assemblies. By inserting the plug and turning the wing nut clockwise, the rubber ring expands to create a secure seal. This plug is commonly used for leak testing, isolating, and weld purging pipework in industrial applications.
