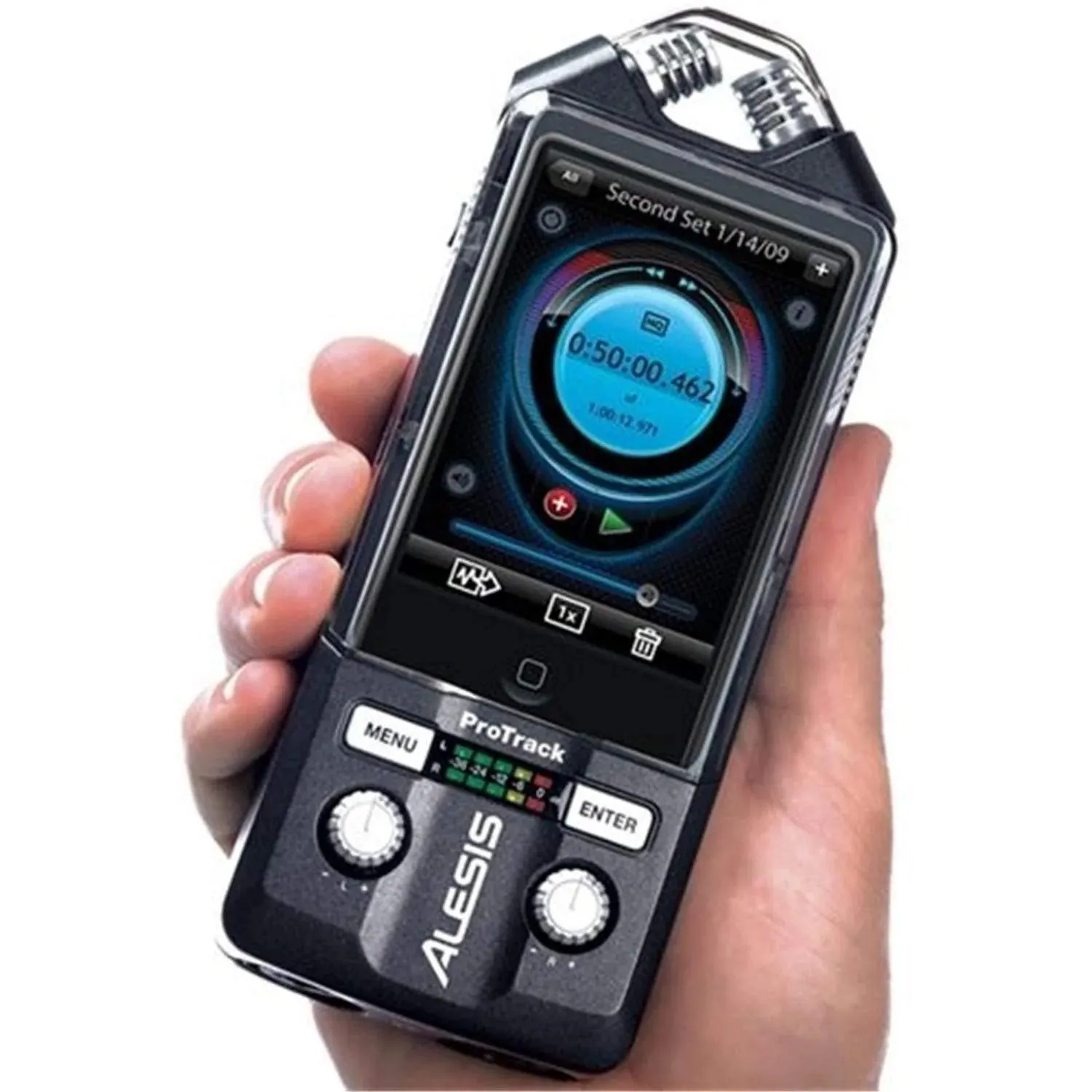

Record stereo audio directly to your iPod with ProTrack. Capture live sound on your iPod anywhere and anytime without a single cable, and with one hand free! Just dock your iPod and cover it with the protective clear shield, and you're ready to roll.
FEATURES

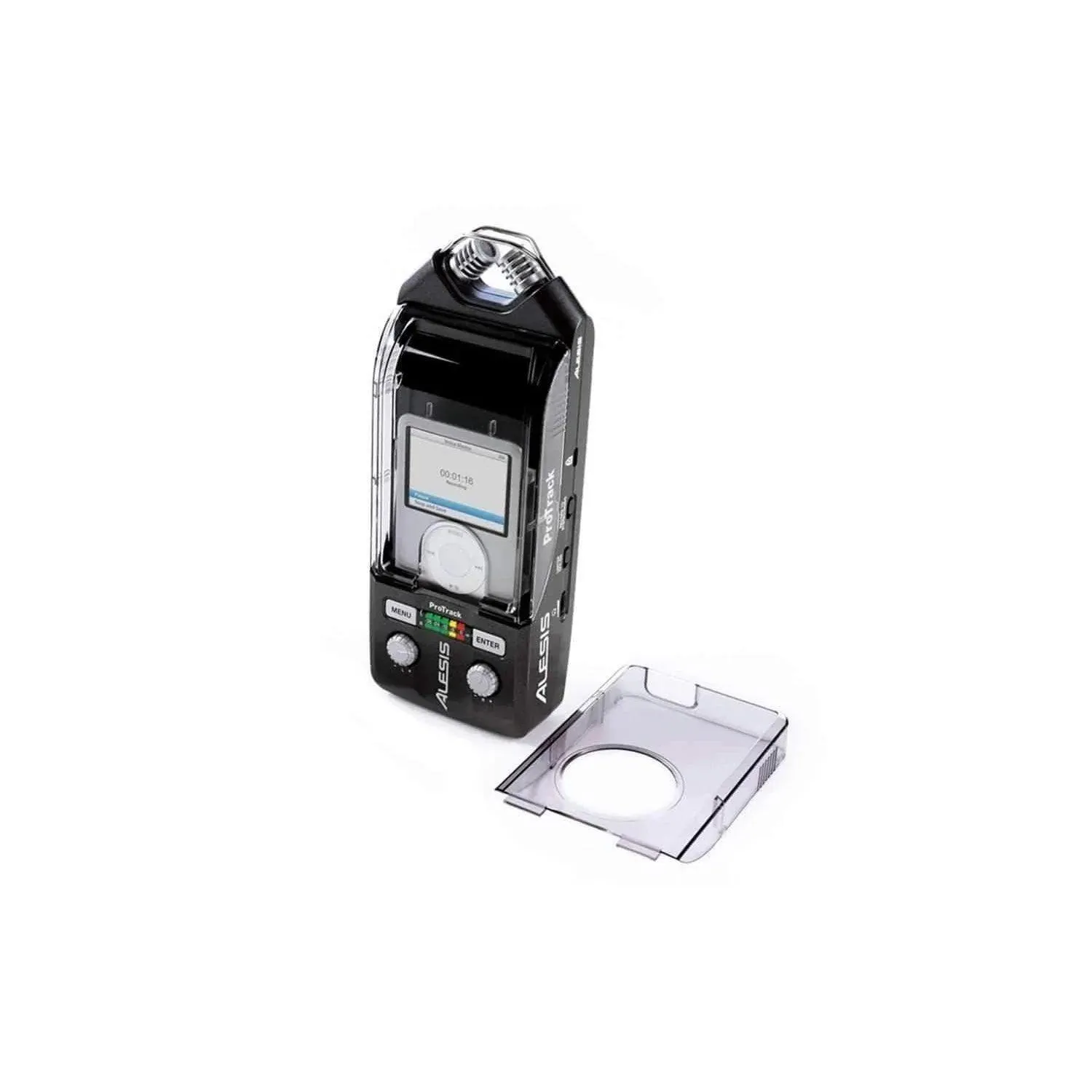

- Sleek design with clear, protective covers, integrates iPod

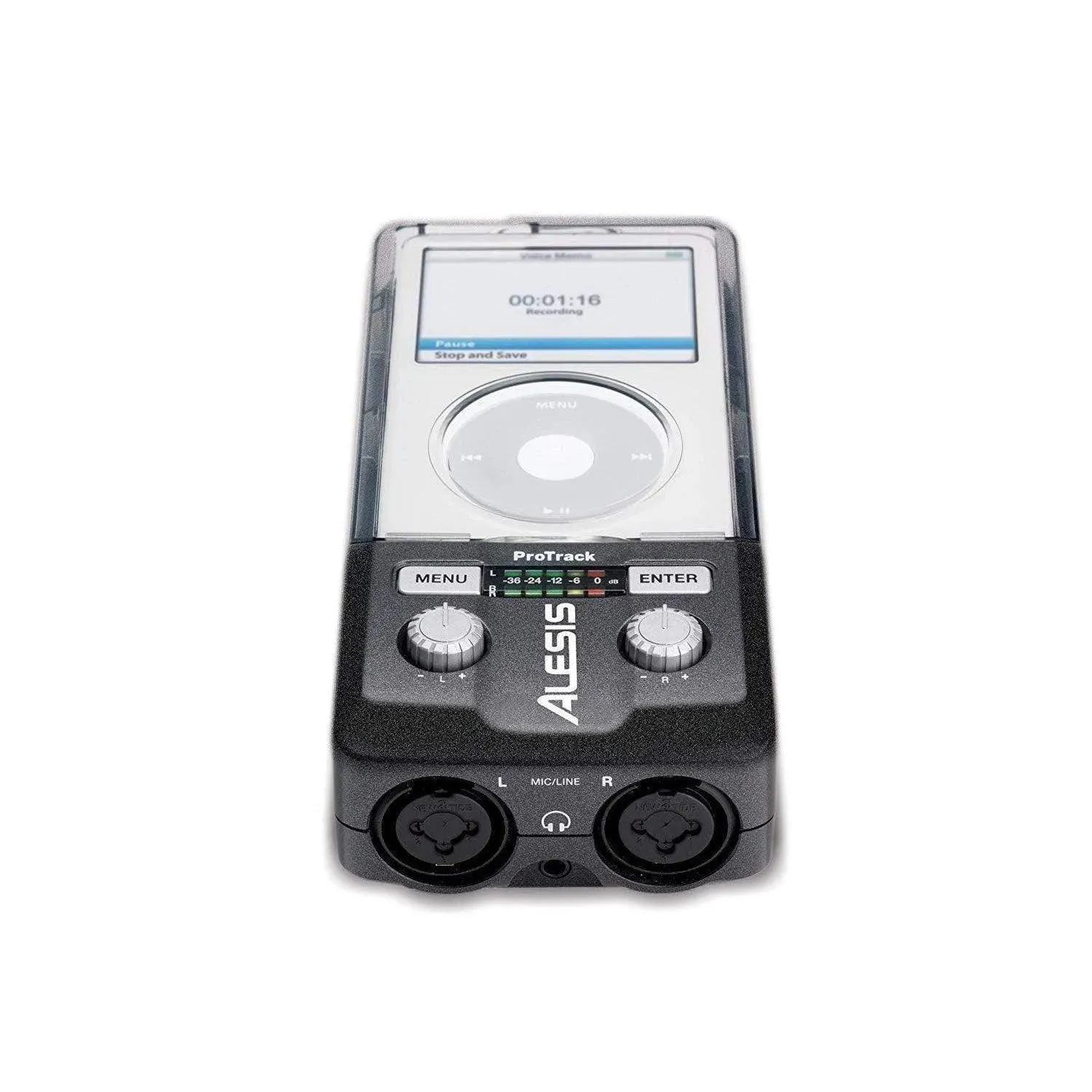

- Combo XLR-1/4" inputs for connecting mics, mixers, and more
- Stereo 1/8" headphone output
- 48V phantom power for use with external condenser mics
- Records 16-bit, 44.1kHz or 22kHz stereo digital audio

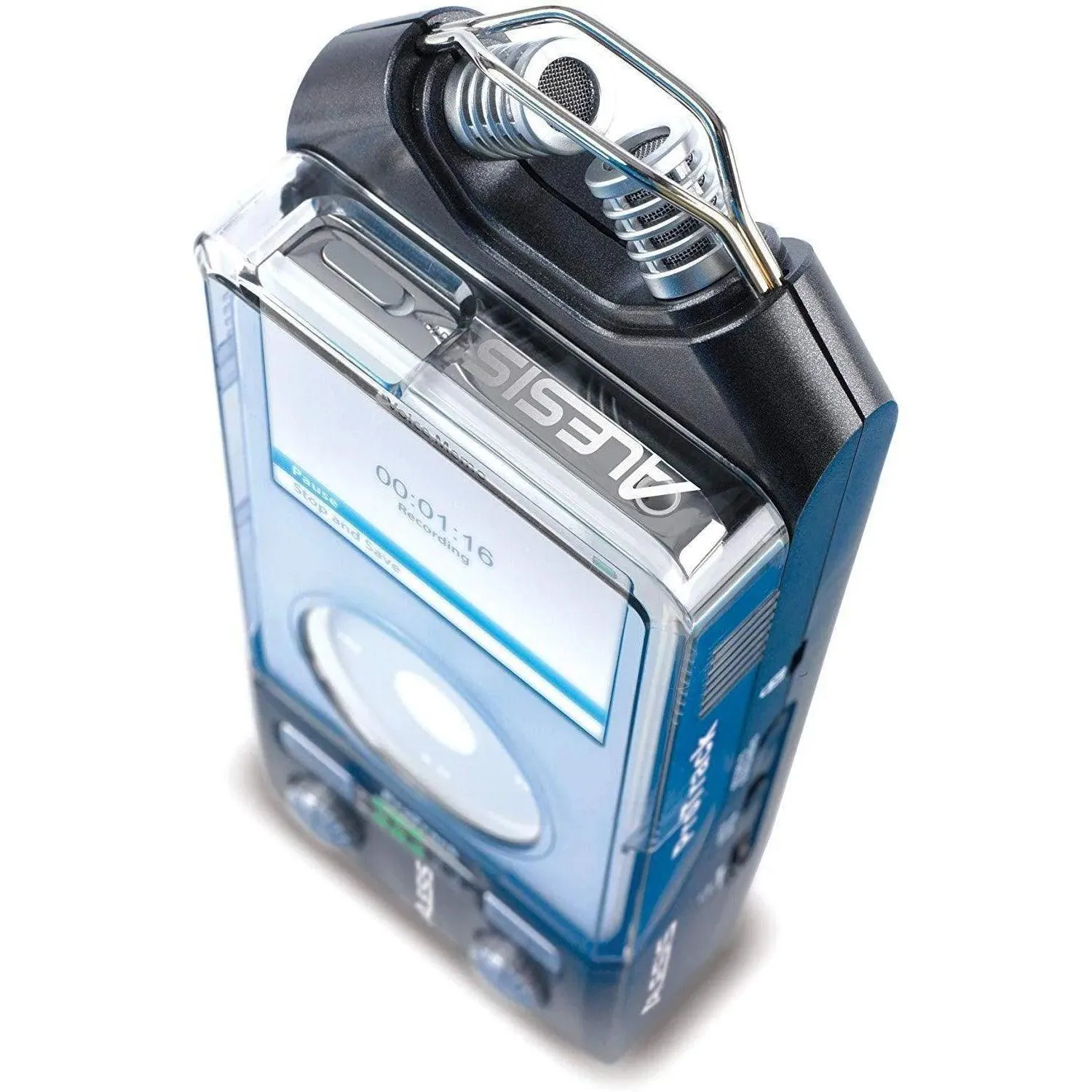

- Onboard stereo condenser microphones for detailed pickup
- Built-in mics in XY configuration for accurate stereo image
- Switchable limiter ensures overload-free recordings
- AC/DC operation on 4 AAA batteries or AC adapter (included)
- Threaded mounting point for tabletop and floor-stand applications
SPECIFICATIONS
| Inputs | Two combination XLR-1/4" |
| Internal Mic Inputs | 6dB to 49.3dB |
| External Inputs (XLR) | 6dB to 49.3dB |
| External Inputs (1/4") | -11.3dB to 32dB |
| iPod Compatibility | 2nd & 3rd Gen. iPod nano: 0.01% @ 92dB SNR A-weighted |
| 5th Gen. iPod / iPod Classic: 0.014% @ 88dB SNR A-weighted (charge off, min. gain) | |
| Bit Depth | 16-bit |
| Sample Rates | 44.1kHz (high); 22.05kHz (low) |
| Max Level | 0.3dBu Maximum |
| THD N | < 0.01% @ 1kHz |
| Output Impedance | 75 Ω output impedance, 40mW into 32 Ω |
| Battery Life | Without phantom power: > 3 hours |
| Using phantom power: > 2 hours | |
| Power Adapter | 6V DC 1A |
| Power Adapter THD N | < 0.01% @ 1kHz |
| Power Adapter Polarity | Wired as center positive |
| Weight (ProTrack only) | 8 oz. (226.8 g) |
| Dimensions (ProTrack only) | 7.25" (184.15 mm) |
