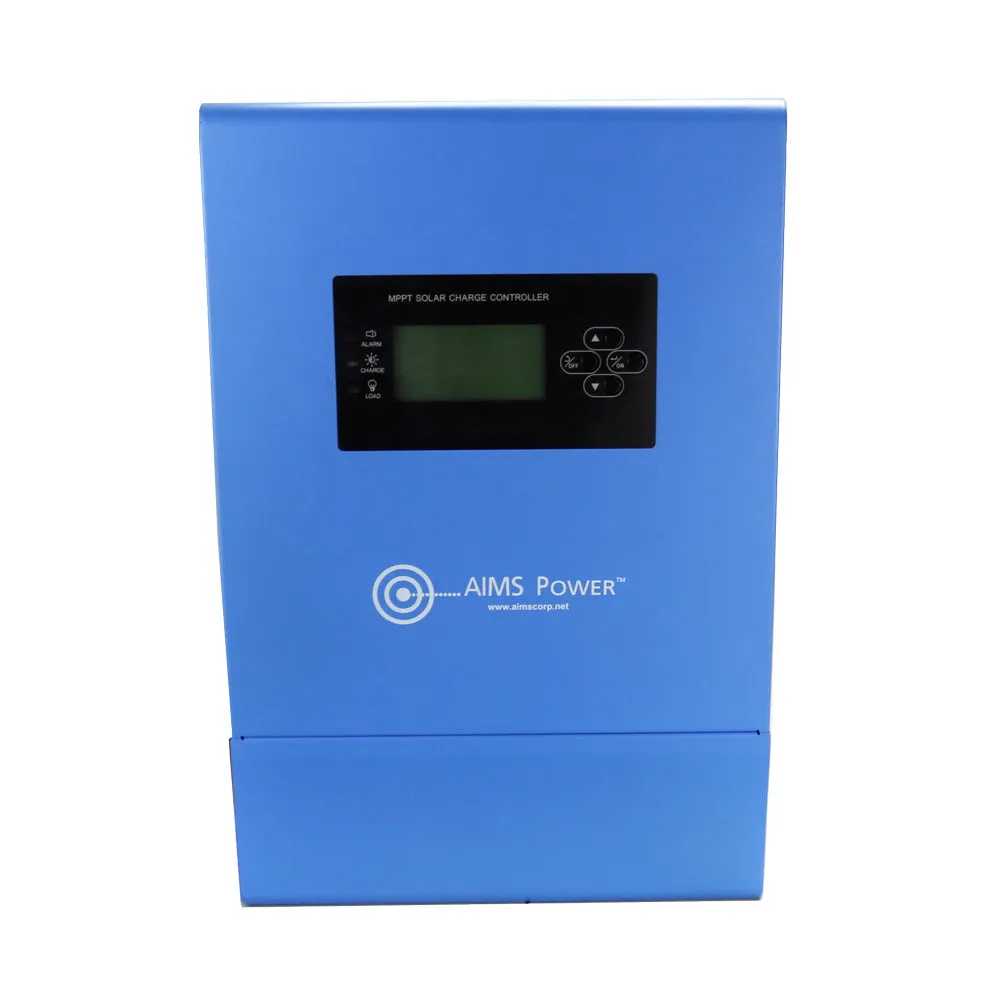

Name: Aims Power 60 AMP MPPT Solar Charge Controller
SKU: 196387

Introducing the Aims Power 60 AMP MPPT Solar Charge Controller - the ultimate powerhouse for your solar energy needs. With its smart tracking algorithm using MPPT charging technology, this charge controller performs at 97.5-99% efficiency, ensuring that you're getting the most energy out of your solar panels. The tracking algorithm is automatic and adapts to the weather conditions, so you don't have to worry about adjusting it manually.

This charge controller also has temperature compensation protection using the included battery temperature sensor. It charges 12, 24, 36 and 48 volt solar systems with multistage charging technology and adjusts according to battery type. And with its LED indicators and an LCD display, you'll always know the charging status and key information such as battery voltage and capacity, solar panel voltage and wattage, solar panel charging current, KWH produced, battery charge mode, and DC load (current).

Some of the features of the Aims Power 60 AMP MPPT Solar Charge Controller include:

-MPPT technology: Maximum Power Point Tracking produces maximum available power from PV array to battery bank utilizing peak power of the I-V curve

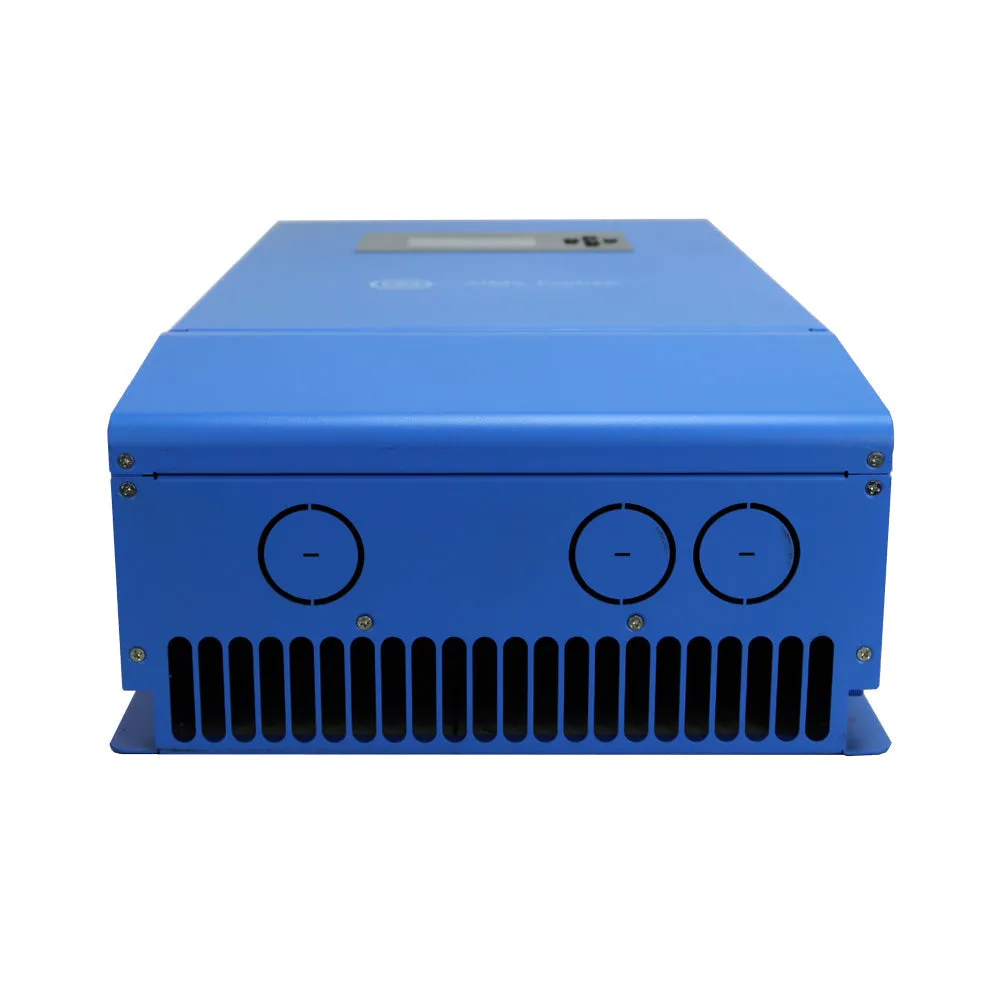

-Quality heatsink cooling – no fans needed and no thermal derating

-Battery type selector and user defined charging voltage

-4 stage charging

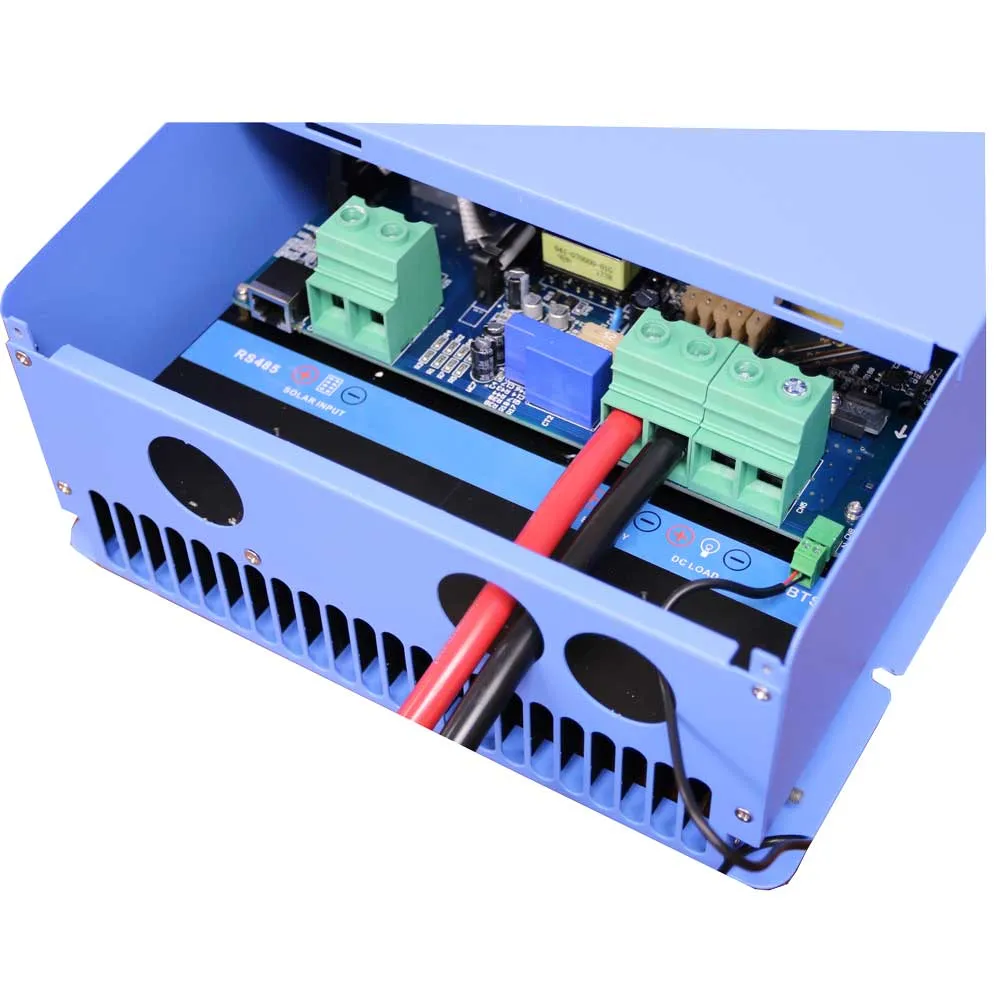

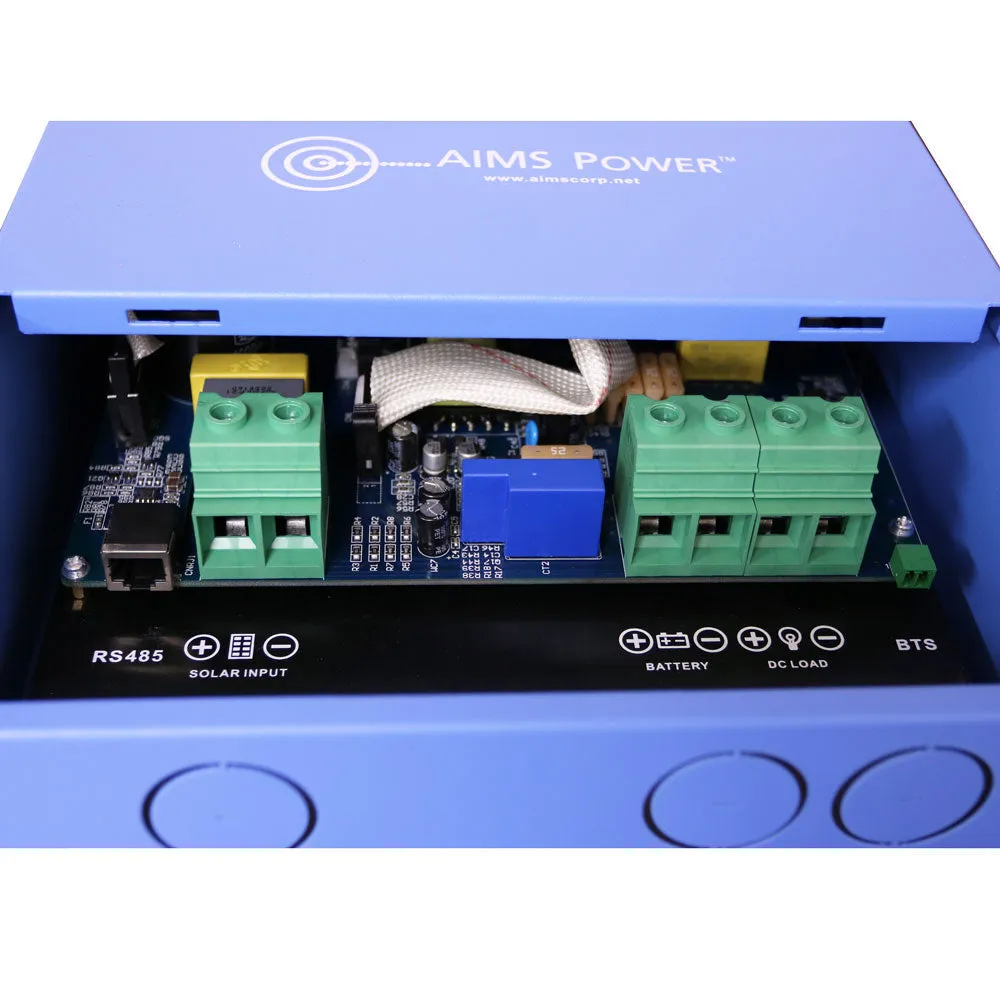

-PV input, battery output and load control ports

-Stackable -Reliable electronics, over engineered components generating less heat

-Very efficient up to 99%

-Low self consumption

-Thermal design rugged case

-Over temp protection

-Overload, short circuit, high and low voltage protection

-RS485 port for computer monitoring

-CE, ETL to UL1741 and RoHS compliant

-Marine coated

-Mounting holes

With a maximum battery current of 60 amps and a DC load port of 60 amps, this charge controller can handle even the most demanding solar systems. It's built to last, with a rugged design that can handle extreme conditions. It's also CE, ETL to UL1741, and RoHS compliant, and backed by a 2-year warranty. So you can trust that it will work efficiently and reliably for years to come.

Imagine having a charge controller that not only maximizes the power output of your solar panels, but also provides real-time monitoring of your system's performance, including KWH produced and battery charge mode. And with its user-defined charging voltage, you can customize it to your specific needs.

The Aims Power 60 AMP MPPT Solar Charge Controller is the ultimate tool for anyone looking to take their solar energy system to the next level. With its impressive power handling capabilities, advanced tracking algorithm, and real-time monitoring, this charge controller is sure to make your solar energy system run more efficiently and effectively than ever before.

So why settle for a charge controller that only does half the job? Upgrade to the Aims Power 60 AMP MPPT Solar Charge Controller and experience the difference for yourself. It's like giving your solar panels a personal trainer, they'll perform better than they ever have before.

ELECTRICAL
PV Operating Voltage:

15-150Vdc@12V
34-150Vdc@24V
50-150Vdc@36V
60-150Vdc@48V

Rated PV input:

12V – 800 Watts
24V – 1700 watts
36V – 2400 watts
48V – 3400 watts

Maximum battery current: 60 amps
DC load port: 60 amps
Max PV open circuit voltage: 150Vdc
Self power consumption: <4 watts
Efficiency: 98.5%
Protections: overload, short circuit, high voltage, high temperature, low voltage and auto correct
Monitoring: RS485 port for computer monitoring
Optimal cooling case design – built for extreme conditions

CHARGING

Battery types: gel, sealed, AGM, flooded, lithium, user defined (adjustable voltage)
4 Stage charging: bulk, absorption, float and equalize
Bulk charge voltage: sealed 14.4V, AGM/gel 14.2V, flooded 14.6V, user defined 10-15V
Float charge voltage: sealed/AGM/gel 13.7V, flooded 13.6V, user defined 10-15V
Equalize charge voltage: sealed 14.6V, AGM/gel 14.8V, flooded 14.8V, user defined 10-15V
Low voltage reconnection: 12.5V
Low voltage disconnect voltage: 10.5V (10.5-12.5V adjustable)

MECHANICAL
