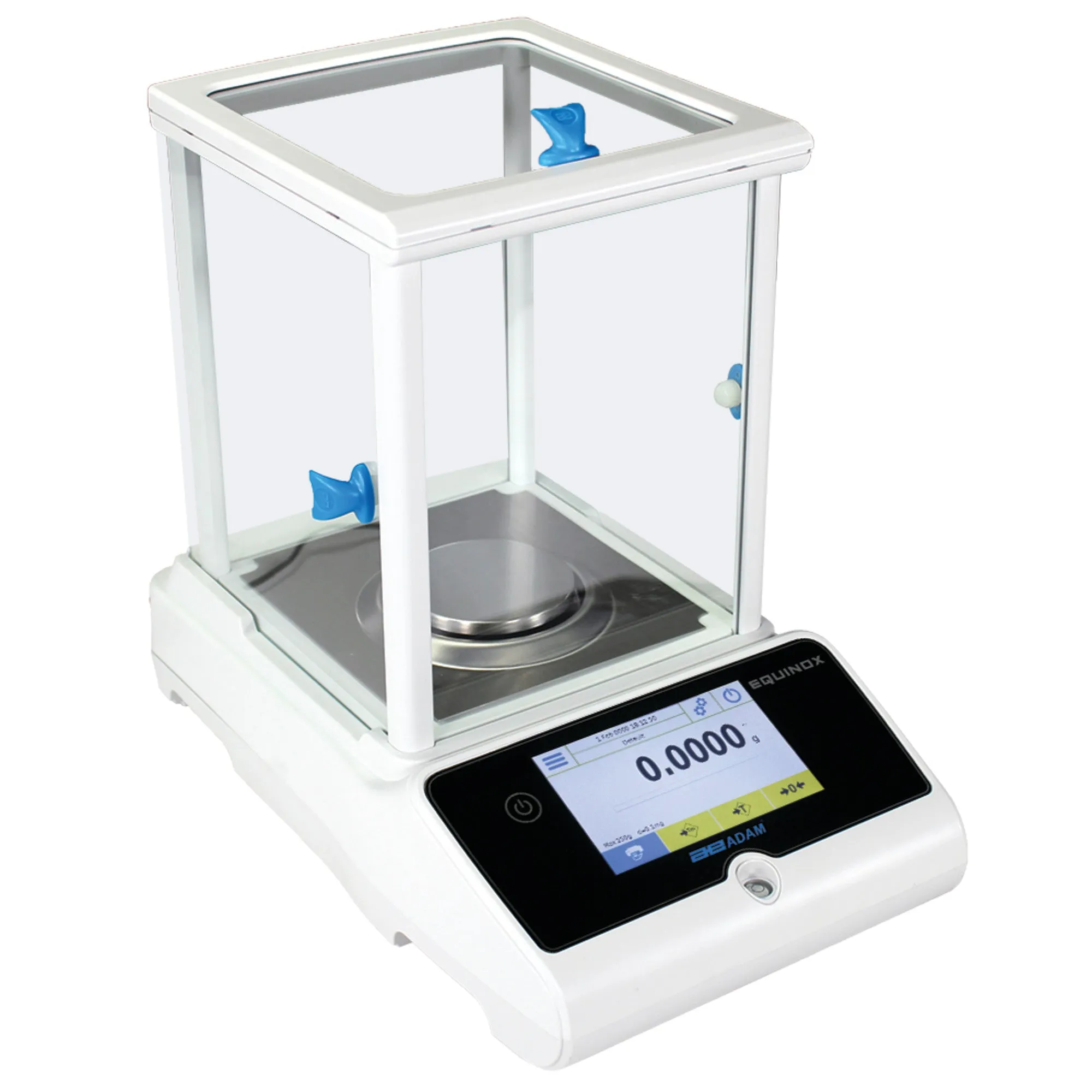

Equinox analytical balances bring remarkable precision to labs that perform highly detailed testing. The Equinox is ideal for research and quality assurance facilities; science education; precision counting; and production and manufacturing applications needing exceptionally precise results. A color touch screen display provides intuitive operation, with icon-driven menus and readily accessible applications and functions.
Specifications
| Capacity | 220g |
| Readability | 0.0001g |
| Repeatability | 0.0002g |
| Weighing Units | g, mg, ct, GN, lb, oz, dwt, mm, ozt, tl.H, tl.S, tl.T, T, custom unit |
| Calibration | External calibration |
| Stabilization Time | 4 |
| Pan Size | 3.1" ø / 80mm ø |
| Linearity | 0.0003g |
| Power Supply | 24V 50/60Hz 500mA adapter |
| Construction | ABS plastic |
| Interface | RS-232, USB |
| Operating Temperature | 10° to 30°C / 50° to 86°F |
| Net Weight | 15.9lb / 7.2kg |
| Overall Dimensions | 8.8"x14.7"x13.3" / 224x374x338mm (wxdxh) |
| Approvals | N/A |
| Display Digit Height | 4.9" / 125mm |
