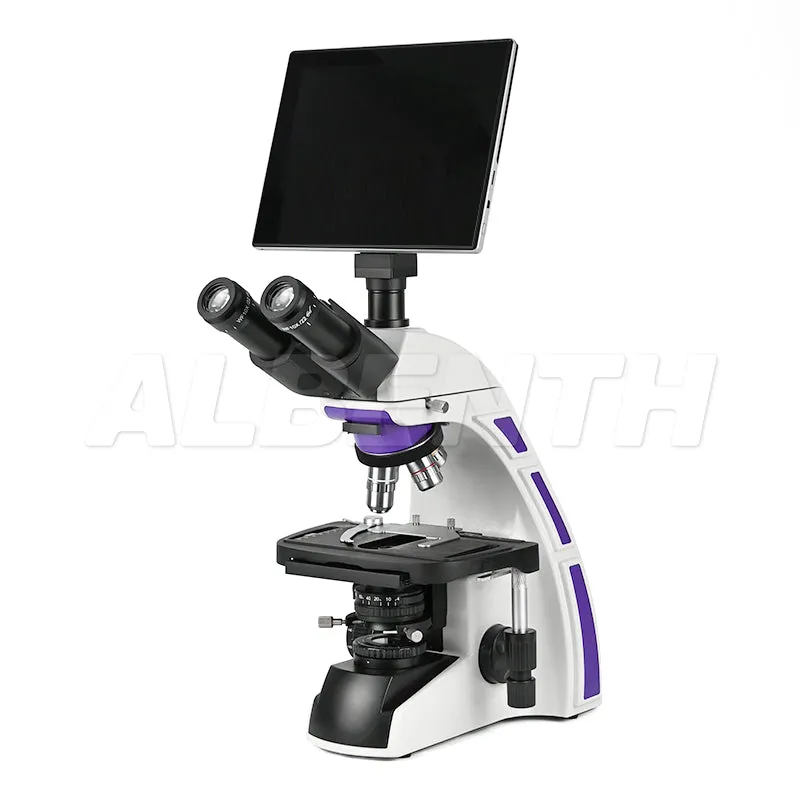

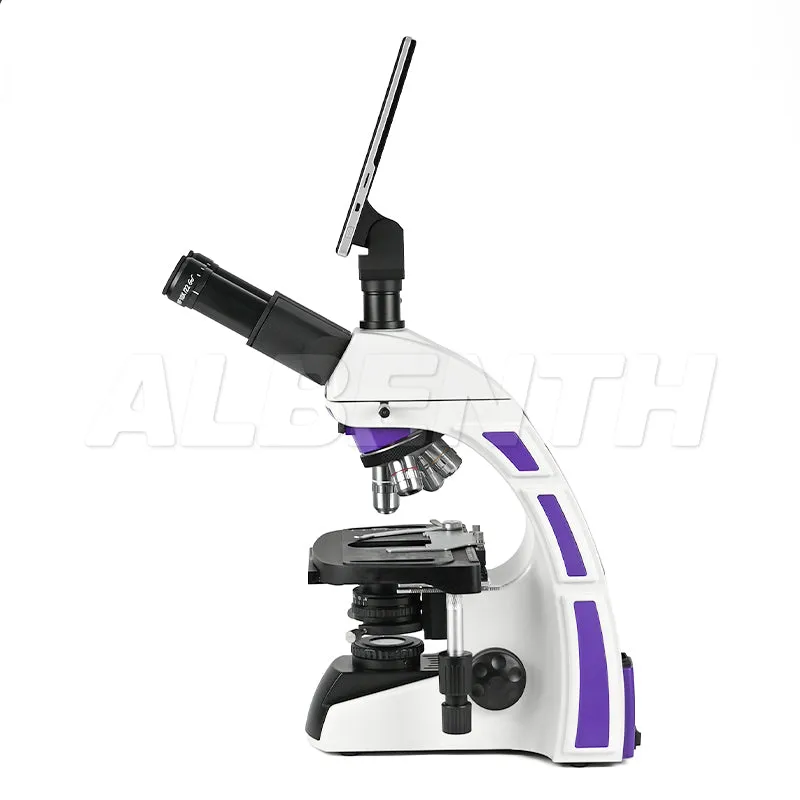

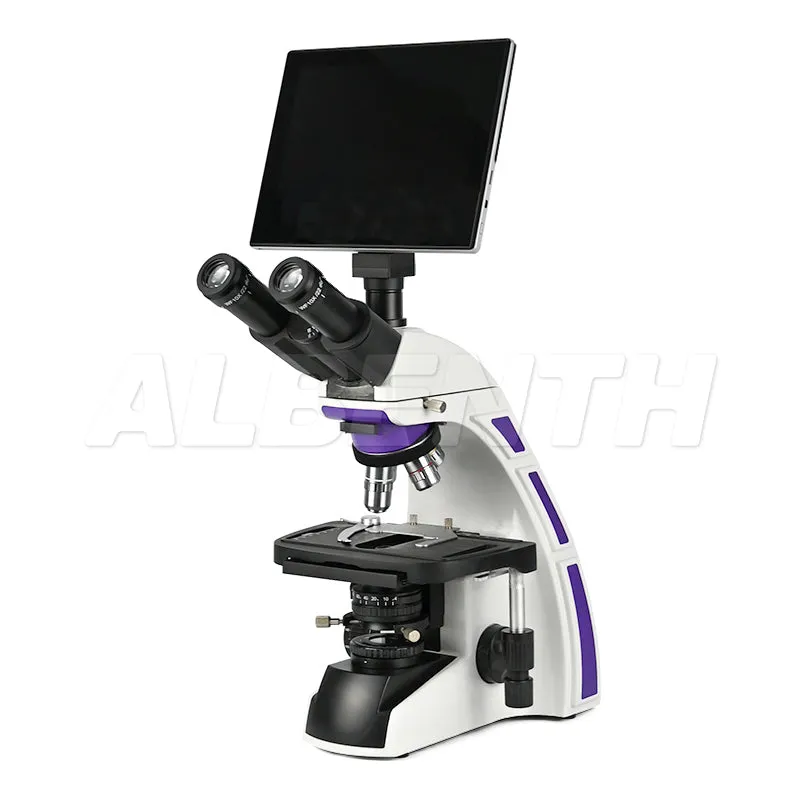

AIM-TDA series is ergonomically designed to enhance operational efficiency. This powerful instrument helps you to stay focused for longer by reducing the strain on your body. It is the new standard in microscopes, expanding the possibilities of exploring the micro world.

Key Features:
● It has been developed with the primary goal of reducing fatigue during microscope usage.
● Excellent image flatness and chromatic aberration correction.
● It has three kinds of objectives—Achromatic, Plan Achromatic, and Infinity Plan Achromatic, , which feature flat, sharp images up to the periphery of the field of view. Infinity-corrected optical system, which achieves both high resolution and long working distances.
● Low stage for effortless slide replacement, Enables natural posture to be maintained throughout the entire microscope workflow.

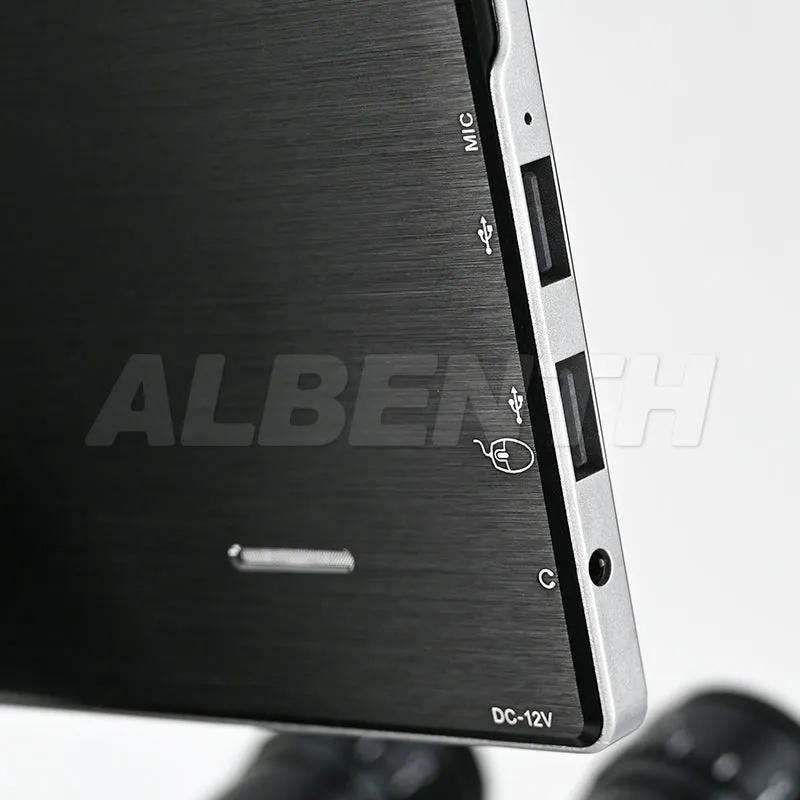

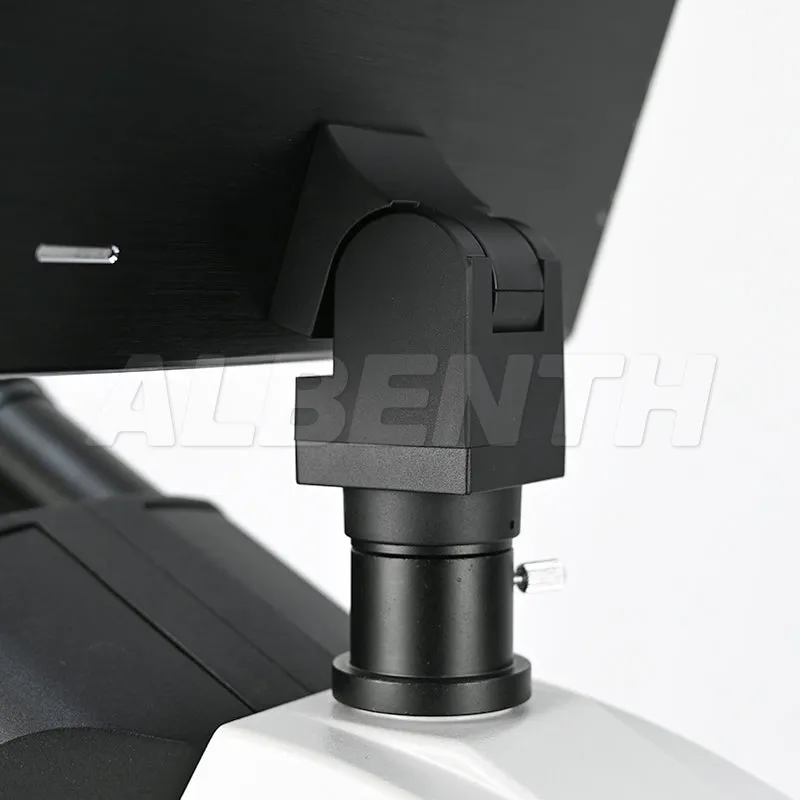

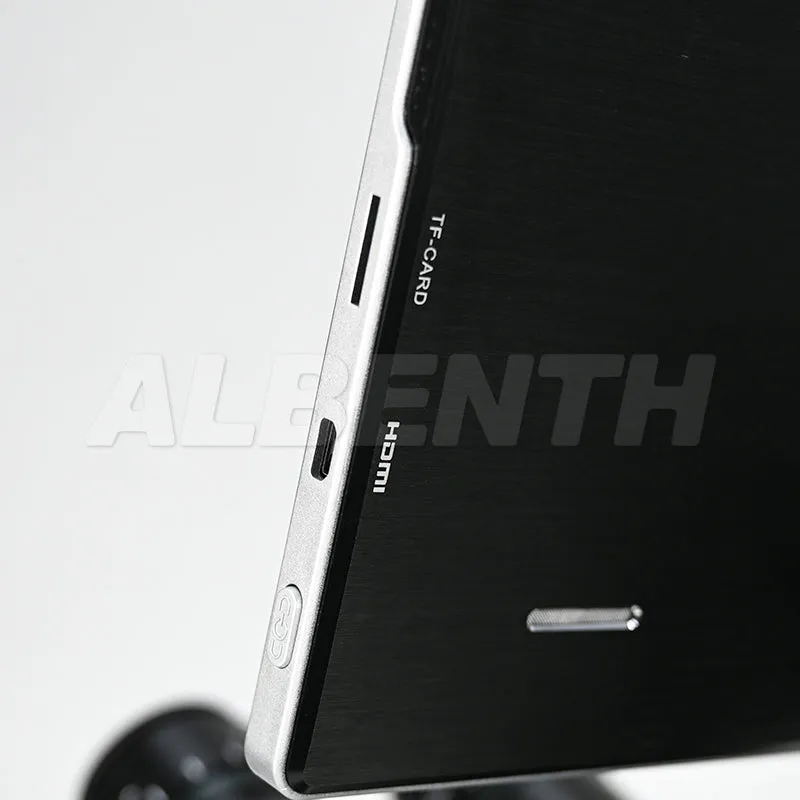

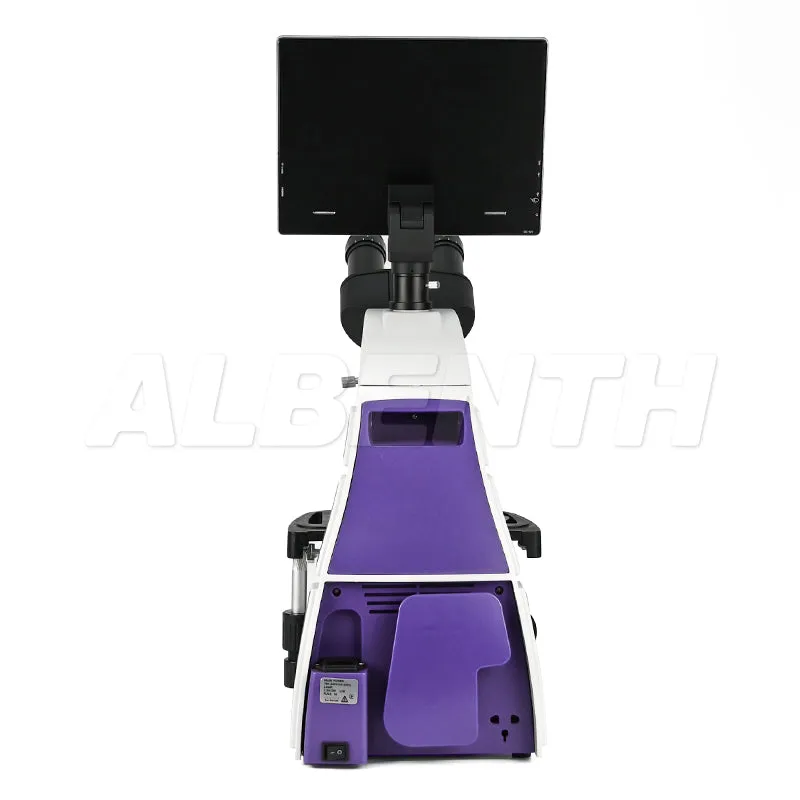

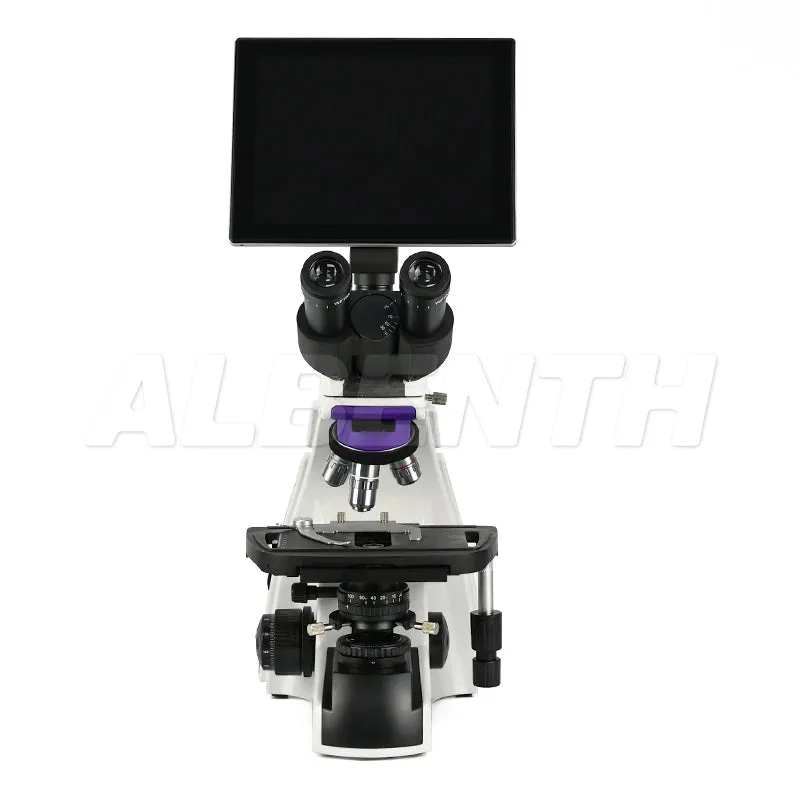

● Capture specimen images for documentation or for real-time sharing with others by configuring the trinocular version with a digital camera.
● Equipped with a powerful 3W LED lamp, offering excellent visibility and a long lifespan for reliable performance.

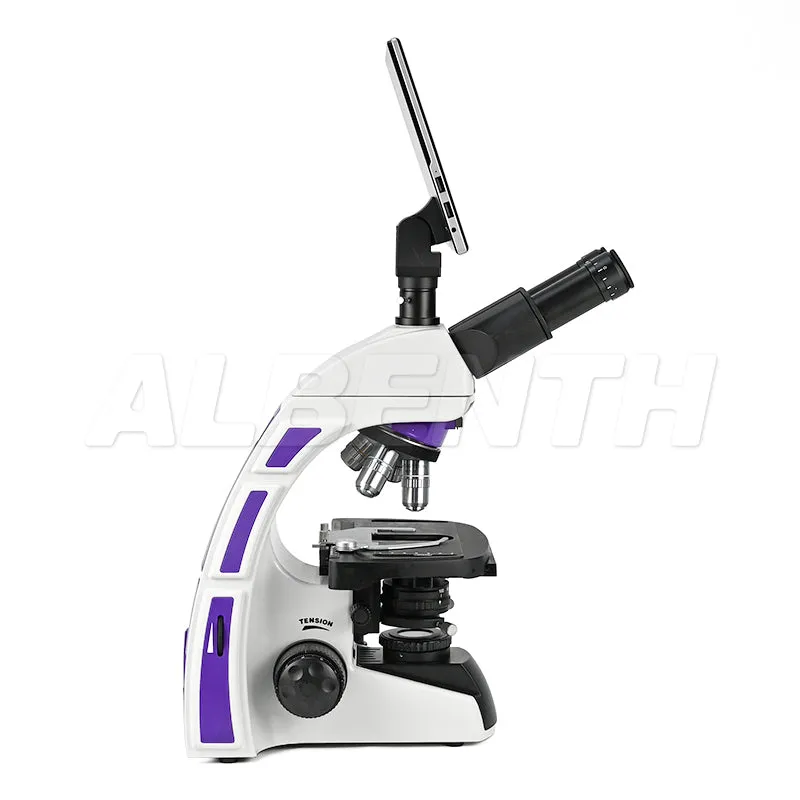

● Viewing Head: Articulated free trinocular head, 30° inclined, interpupillary distance 50-75mm

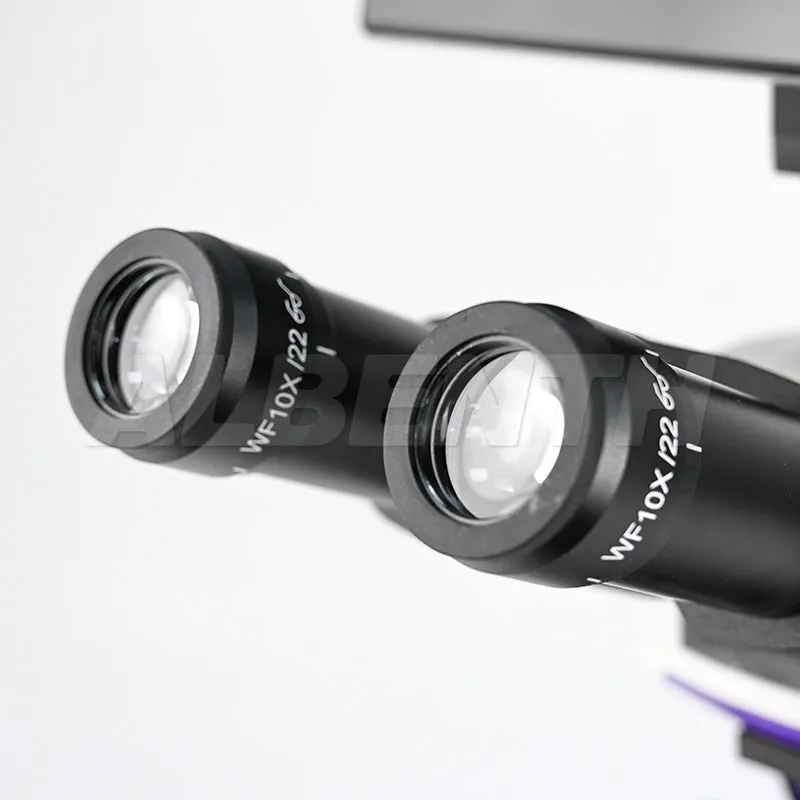

● Eyepiece: PL10X/22mm high eyepoint eyepiece, diopter adjustment ±5, tube Ø30mm

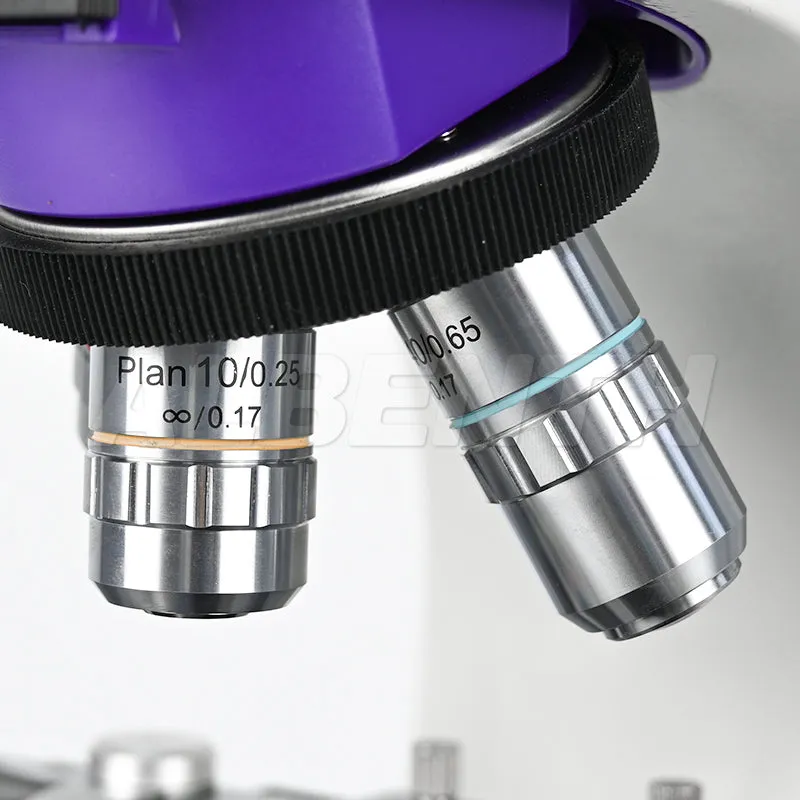

● Infinity Plan achromatic objectives:
- 4X/0.10, ∞/0.17
- 10X/0.25, ∞/0.17
- 40X/0.65(S), ∞/0.17
- 100X/1.25(S, Oil), ∞/0.17
● Nosepiece: Backward quadruple nosepiece

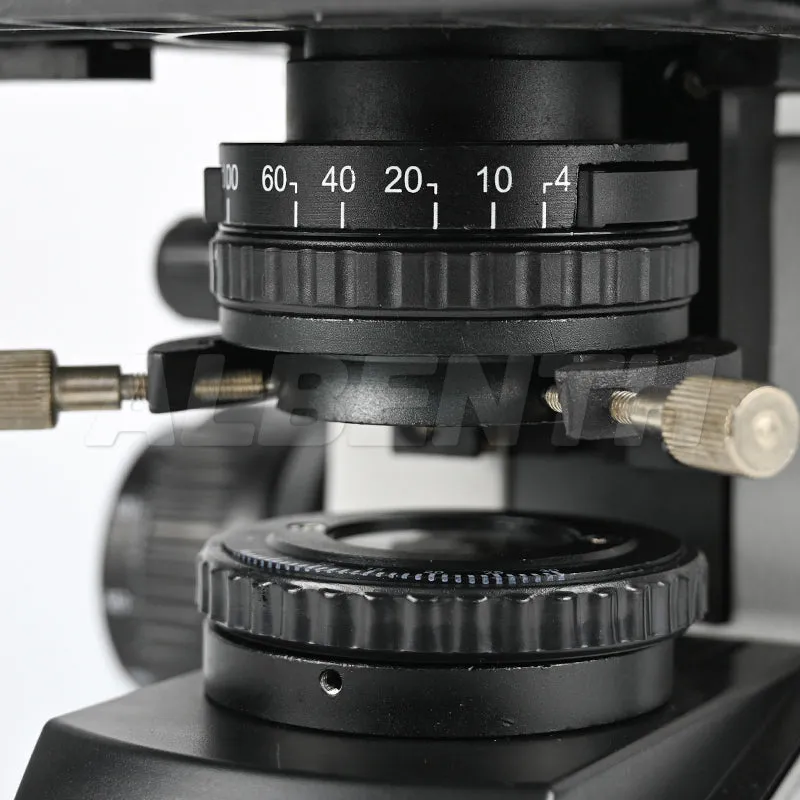

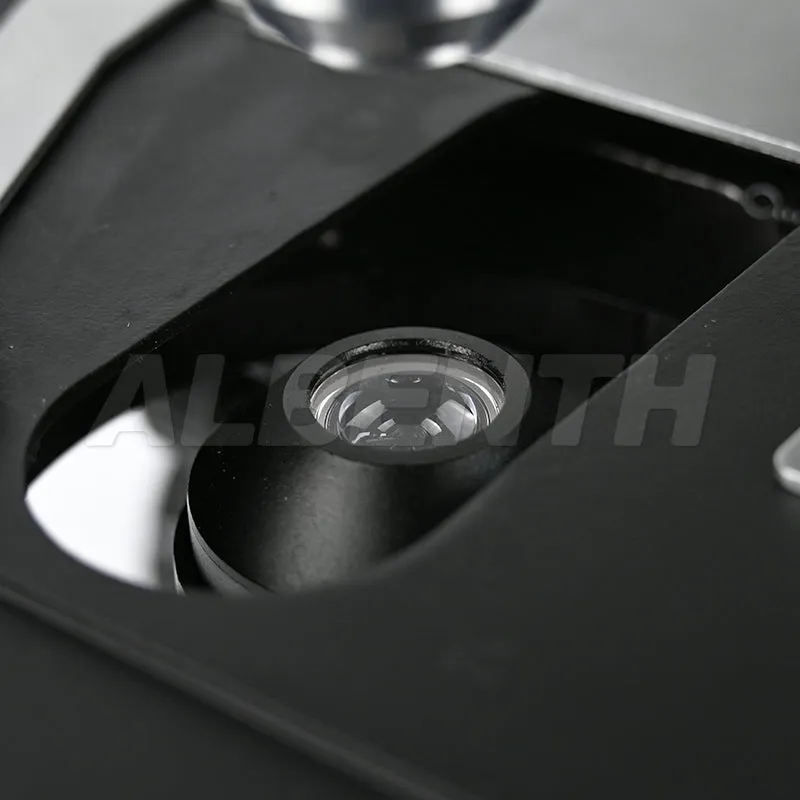

● Condenser: Abbe condenser set
● Stage: 220*148mm X-aris low hand position double mechanical stage(steel wire transmission): 76*50mm, precision 0.1mm, damped double slide clamp
● Focusing system: Coaxial coarse and fine focus knobs, precision 0.002mm
● Illumination: 3W LED lamp with Kohler illumination system
